Name: Metrel MI 3281 15M WR analyser 1-phase, 3-phase
Brand: Metrel
SKU: 2489386
Availability: BackOrder

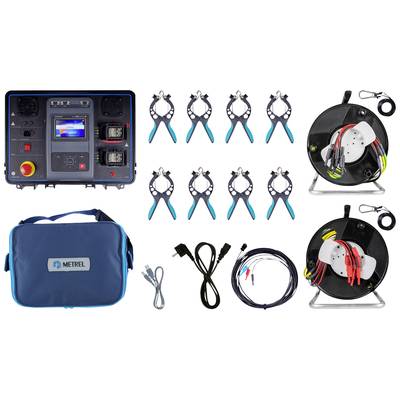

Portable electric testing device with cables, clamps and accessories, including blue carry case.

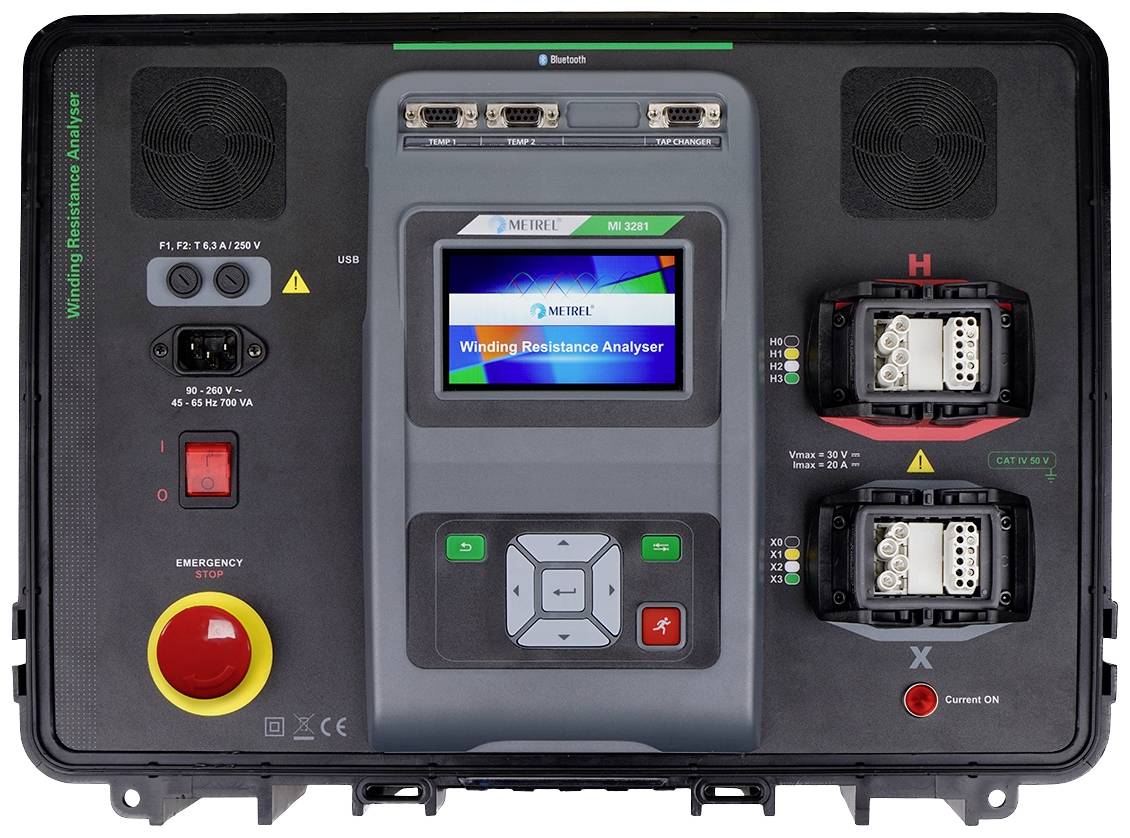

A Winding Resistance Analyser in a black housing with a display, buttons, and connections. An emergency stop switch is located on the left.

1/2

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 20,945.00 / piece)

€ 20,945.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Test current 10 mA 20 A
Pollution level: 2
4.3" (10.9 cm) 480 x 272 TFT color display
IP65 (closed), IP40 (open)

Product type: WR analyser

Reading category: CAT II 300 V

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 37 x 47 x 19 cm

Weight: 9.3 kg

Measurement type: 1-phase
3-phase

Width: 47 cm

Height: 19 cm

Length: 37 cm

Interfaces: Bluetooth®

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2489386 Metrel MI 3281 15M WR analyser 1-phase, 3-phase

Description

The Wind Resistance Analyser (WR Analyser) MI 3281 is a portable test device for diagnosing the winding resistance of single and three-phase transformers with manual or automatic step switch test and demagnetization of the tested transformer. Selectable test current range from 10mA to 20A. The operation is simple and clear, so that the user can operate the device without special training. For advanced users, the AUTO SEQUENCES and Visual Tests are available.

This text is machine translated.

Features

Test current can be selected up to 20 A.
Automatic or manual level switch test
Automatic discharge after completed measurement
Integrated help windows for on-site reference
Emergency off switch for all emergency situations
The 4.3" (10.9 cm) LCD color display with touch screen shows all results and associated parameters clearly
Operation is simple and clear so that the user can operate the device without special training
The test results can be stored on the device
PC SW Metrel ES MANAGER for creating test structures and uploading and downloading test results, Auto Sequence® and reporting
Create and print reports
BT communication with PCs, Android tablets and smartphones via built-in BT
Conversion of winding resistors to a desired reference temperature
IP 65 protection (enclosure closed), IP 40 (enclosure open)
Measurement of the winding resistance of single and three phase transformers
Measurement of winding resistance of single and three phase transformers with manual or automatic level switch test (automatic measurement of all coils)
Demagnetize single and three phase transformers

Scope of delivery

Measuring device MI 3281
A 1715 15M H-side test cable
A 1716 15M X-side test cable
A 1777 2 x reels for cable
A 1757 8 x large Kelvin test terminal 65 mm
2x 1 m fixing cable with snap hook
A 1813 position switch control cable 10 m
USB cable
Power cable;
A 1006 bag for accessories
Metrel ES Manager PRO license
User manual
Calibration certificate
