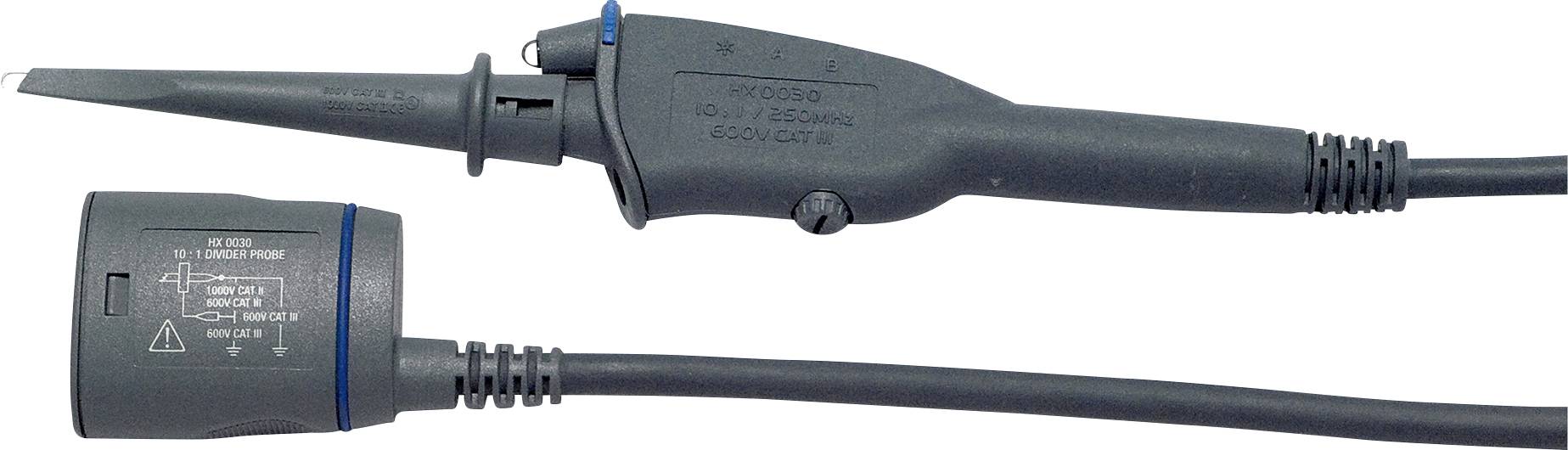

Metrix PROBIX Probe 250 MHz 10:1
EAN:
Part number:
Item no:
Number
Total (€ 382.35 / piece)
€ 382.35
plus VAT.
Highlights & Details
Probe Probix 1/10 600V - CAT III 250 MHz
- 10:1
- Bandwidth 250 MHz
Technical specifications
- Frequency range DC to 250 MHz
- Max. Peak voltage ± 850 V
- Slew rate
1.2 ns
- Input capacity
17 pF +/- 3 pF
- Input resistance
10 MΩ ± 1 %
- Cable length
1.20 m
- Height
240 mm
- Length
120 mm
- Width
30 mm
- Compatible with (details)
Chauvin Arnoux handheld oscilloscope of the Scopix family (OX7xxx or OX9xxx)
- Divider voltage ratio
10:1
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Bandwidth
250 MHz
- Weight
145 g
- UKCA
not relevant
- Product type
Probe
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3436213 Metrix PROBIX Probe 250 MHz 10:1
Warranty Terms
Warranty Terms 3436213 Metrix PROBIX Probe 250 MHz 10:1
Description
Accessories for oscilloscopes and SCOPIX oscilloscopes with Probix connection. Probe for the voltage measurement (high frequency HF). Enables direct reading of the measured value through automatic scaling (no setting required on the SCOPE oscilloscope). 2 configurable keys for remote control of the SCOPE. 1000 V CAT II or 600 V CAT III, bandwidth 250 MHz. Attenuation 10:1.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 4 color-coded rubber bands and rings to identify the probe and the connector depending on the channel
- 1 reference contact that can be plugged in
- 1 pluggable hook-wire holder
- 1 reference cables 2 mm with crocodile clip
- 1 operating instructions in 5 languages
