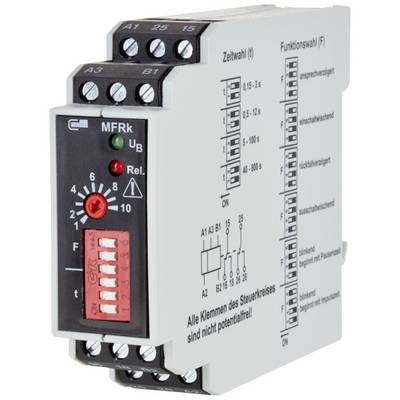

Metz Connect 110310412230 MFRk-E12 TDR Multifunction 230 V AC 1 pc(s) Time range: 0.15 - 800 s 2 change-overs Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
TDR
Type
Multifunction
Functions
On-delay
Operating voltage
230 V AC
Datasheet (PDF)
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
Highlights & Details
Multifunction timer relay MFRk-E12, 230 V AC / 24 V AC/DC, 0,15-800 s.
- TDRsMultifunction timerAdjustable time rangesMulti-timeSingle shot leading edgeSingle shot trailing edgeSwitch-on delaySwitch-off delayFlashing pauseBTR time relayBTR Netcom
Technical specifications
- Packaging type
Piece
- Product type
TDR
- Type
MFRk-E12
- Type
Multifunction
- Connection
Screw terminal
- Functions
On-delay
- Operating voltage
230 V AC
- Min. operating voltage
24 V AC
24 V DC
- Max. operating voltage
230 V AC
- Operating voltage
24, 24 - 230 V AC
- Contact type
2 change-overs
- Switching voltage (max.)
250 V AC
- Switching current (max.)
6 A
- Time range (min.)
0.15 s
- Time range (max.)
800 s
- Min. temperature
-10 °C
- Max. temperature
+55 °C
IP40
- Width
22.50 mm
- Height
75 mm
- Depth
95 mm
- Dim
(W x H x D) 22.50 x 75 x 95 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2860456 Metz Connect 110310412230 MFRk-E12 TDR Multifunction 230 V AC 1 pc(s) Time range: 0.15 - 800 s 2 change-overs Piece
User & Safety Instructions
User & Safety Instructions 2860456 Metz Connect 110310412230 MFRk-E12 TDR Multifunction 230 V AC 1 pc(s) Time range: 0.15 - 800 s 2 change-overs Piece
Description
Multifunction timer relay with built-in code switches for function selection. Time setting is done by a linear potentiometer on a relative scale, four adjustable time ranges for each device, 0.15 to 800 s, six functions can be set, 1. Switch-on delay, 2. Single shot leading edge, 3. Delayed drop off, 4. Single shot trailing edge, 5. Flashing pause, 6. Flashing impulse.
