Name: Miniature solid-state relay OPT-24DC/ 24DC/ 5 2982100 Phoenix Contact
Brand: Phoenix Contact
SKU: 709759
Availability: InStock

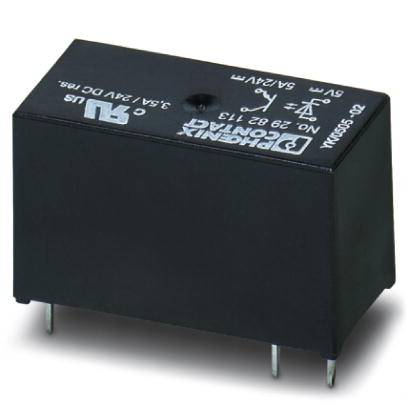

'A black relay component from Phoenix Contact with markings indicating voltage and current rating, suitable for electronic circuits.'

Packaging type

Package

Product type

SSR

Control voltage (min.)

24 V DC

Control voltage (max.)

24 V DC

Switching voltage (max.)

33 V DC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

1053 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 27.50 / piece)

€ 275.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Miniature solid-state relay OPT-24DC/ 24DC/ 5

Industrial packaging, pack of 10

Technical specifications

Packaging type: Package

Product type: SSR

Type: OPT-24DC/ 24DC/ 5

Connection: Jack connector

Control voltage (min.): 24 V DC

Control voltage (max.): 24 V DC

Control voltage range: 24 - 24 V DC

Switching voltage (min.): 3 V DC

Switching voltage (max.): 33 V DC

Current load (max.): 5 A

Output voltage (min.): 3 V

Output voltage (max.): 33 V DC

Max. output current: 5 A

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 12.7 mm

Height: 29 mm

Depth: 15.7 mm

Industrial packaging: Yes

Content: 10 pc(s)

Nominal control voltage: 24 V DC

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Current load (max.)

Control voltage (max.)

Control voltage (min.)

Output voltage (max.)

Switching voltage (max.)

Connection

Nominal control voltage

Miniature solid-state relay OPT-24DC/ 24DC/ 5 2982100 Phoenix Contact

Item no:709759

Dispatches on Tue 10 Nov

1053 Set(s)Conrad Electronic

This article

5 A

24 V DC

33 V DC

Jack connector

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 275.00^*

Miniature solid-state relay OPT- 5DC/ 24DC/ 2 2967989 Phoenix Contact

Item no:708140

Dispatches on Tue 10 Nov

227 Set(s)Conrad Electronic

3 A

5 V DC

33 V DC

5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 305.00^*

Miniature solid-state relay OPT- 5DC/ 48DC/100 2967992 Phoenix Contact

Item no:703627

Dispatches on Tue 10 Nov

8 Set(s)Conrad Electronic

100 mA

5 V DC

48 V DC

5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 229.99^*

Miniature solid-state relay OPT-24DC/ 24DC/ 2 2966595 Phoenix Contact

Item no:507996

Fast track dispatch on Thu 5 Nov

18 Set(s)Conrad Electronic

3 A

24 V DC

33 V DC

Jack connector

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 275.00^*

Miniature solid-state relay OPT-24DC/ 48DC/100 2966618 Phoenix Contact

Item no:705376

Dispatches on Tue 10 Nov

656 Set(s)Conrad Electronic

100 mA

24 V DC

48 V DC

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 164.99^*

Miniature solid-state relay OPT-24DC/230AC/ 1 2967950 Phoenix Contact

Item no:708219

Dispatches on Tue 10 Nov

96 Set(s)Conrad Electronic

750 mA

24 V DC

253 V AC

Jack connector

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 239.99^*

Miniature solid-state relay OPT-24DC/230AC/ 2 2982171 Phoenix Contact

Item no:709180

Dispatches on Tue 10 Nov

31 Set(s)Conrad Electronic

2 A

24 V DC

253 V AC

Jack connector

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 309.00^*

Miniature solid-state relay OPT-60DC/ 24DC/ 2 2966605 Phoenix Contact

Item no:508691

Dispatches on Tue 10 Nov

13 Set(s)Conrad Electronic

3 A

60 V DC

33 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 305.00^*

Miniature solid-state relay OPT-60DC/ 48DC/100 2966621 Phoenix Contact

Item no:508252

Dispatches on Tue 10 Nov

11 Set(s)Conrad Electronic

100 mA

60 V DC

48 V DC

60 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 209.99^*

Documents & Downloads

Datasheet

Datasheet 709759 Miniature solid-state relay OPT-24DC/ 24DC/ 5 2982100 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 709759 Miniature solid-state relay OPT-24DC/ 24DC/ 5 2982100 Phoenix Contact

Description

Plug-in miniature solid-state relay, power solid-state relay, input: 24 V DC, output: 3 - 33 V DC/5 A

Description

Plug-in miniature solid-state relay, power solid-state relay, input: 24 V DC, output: 3 - 33 V DC/5 A
