Molex Built-in pin strip (standard) No. of rows: 1 5600200920 1950 pc(s) Tape on Full reel
Packaging type
Tape on Full reel
Product type
Built-in pin strip (standard)
No. of rows
1
Total number of pins
9
CS
2 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (1 st = € 1.02)
€ 2,289.00
-13 %
€ 1,987.36
incl. VAT
14-day return policy included
Highlights & Details
Duracell
- Content 1950 pc(s)
- No. of rows 1
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tape on Full reel
- Product type
Built-in pin strip (standard)
- No. of rows
1
- Total number of pins
9
- CS
2 mm
- Connection
SMT
- Factory colour
Ecru
- Nominal voltage
125 V DC/AC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact material
Copper alloy
- Case material
Polyamide
- Dim
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
5600200920
- Content
1950 pc(s)
- RoHS-compliant
Yes
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Type
MOL Automotive
- Engineering Part No
560020-0920
- Engineering Series Name
2.0 W/B CONN. ST.
- Engineering Series No
560020
- Features
+ locking mechanism
- Connector contact surface
Tin
Documents & Downloads
Datasheet
Datasheet 2449754 Molex Built-in pin strip (standard) No. of rows: 1 5600200920 1950 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 2449754 Molex Built-in pin strip (standard) No. of rows: 1 5600200920 1950 pc(s) Tape on Full reel
Circuit diagramm
Circuit diagramm 2449754 Molex Built-in pin strip (standard) No. of rows: 1 5600200920 1950 pc(s) Tape on Full reel
Description

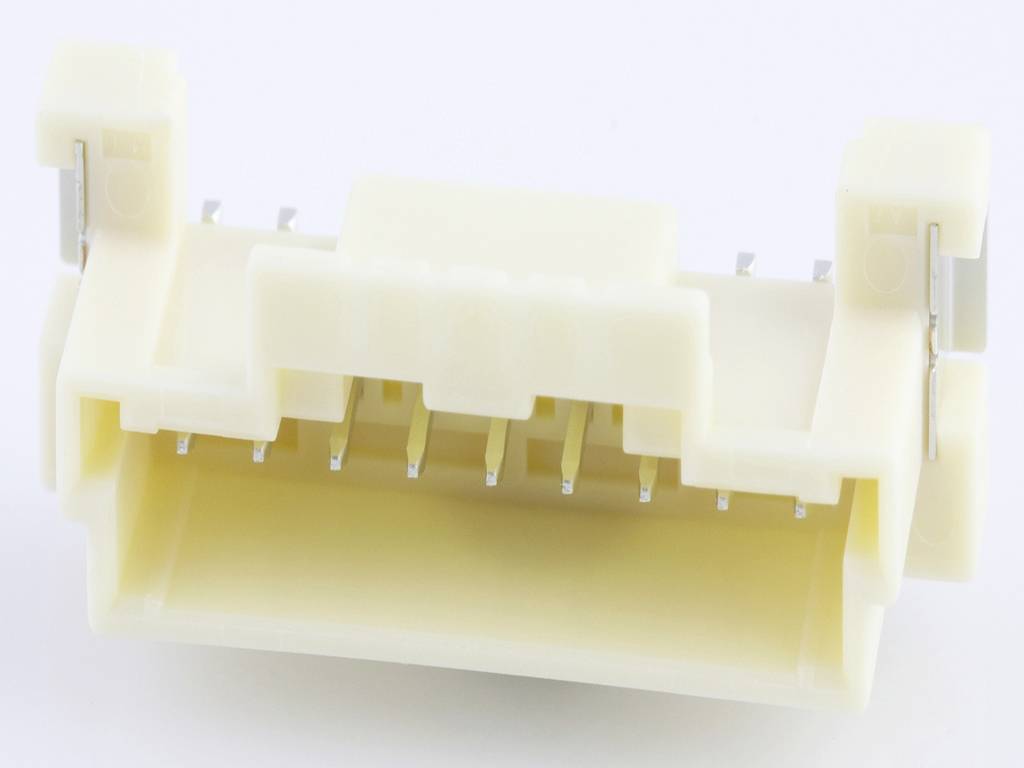

DuraClik Wire-to-Board Header, Single Row, Vertical, 9 Circuits, Tin (Sn) Plating, Natural
