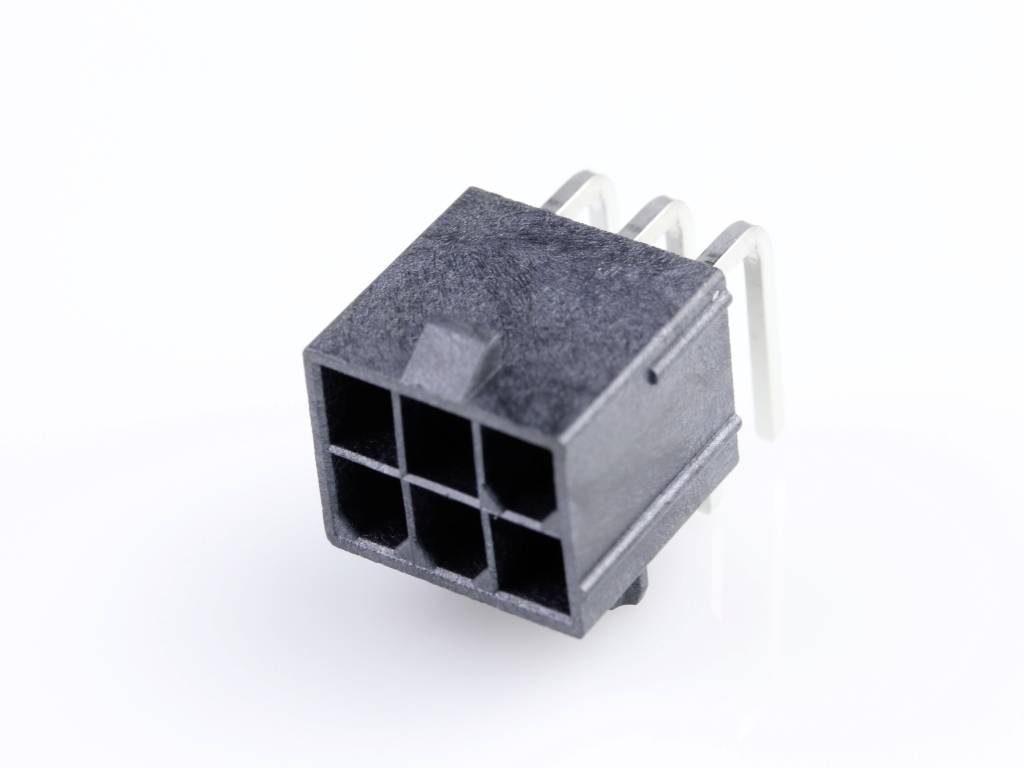

Molex Built-in pin strip (standard) Total number of pins 6 Contact spacing: 4.2 mm 50362462 1 pc(s) Tray
Product type
Built-in pin strip (standard)
No. of rows
2
CS
4.2 mm
Total number of pins
6
Packaging type
Tray
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 2
Total (€ 1.49 / piece)
€ 1.49
incl. VAT
14-day return policy included
Highlights & Details
MINI FIT
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 6
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- No. of rows
2
- Connector system
wire-to-board
- Features
+ locking mechanism
- CS
4.2 mm
- Pins per row
2
- Total number of pins
6
- Nominal current
13 A
- Nominal current - rounded value
13 A
- Content
1 pc(s)
- Connection
Soldering
- Connection angle
90°
- Coating thickness (PCB side)
2.54 µm
- Connector coating thickness
2.54 µm
- Actuation direction
Parallel (to the PCB)
- Case material
High temperature resistant thermoplastic
- Manufacturer part #
50362462
- Factory colour
Black
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
600 V
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
5569-06A7MS-130-T
- Engineering Series Name
MINIFIT JR RA HDR
- Engineering Series No
05569
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2449131 Molex Built-in pin strip (standard) Total number of pins 6 Contact spacing: 4.2 mm 50362462 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2449131 Molex Built-in pin strip (standard) Total number of pins 6 Contact spacing: 4.2 mm 50362462 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2449131 Molex Built-in pin strip (standard) Total number of pins 6 Contact spacing: 4.2 mm 50362462 1 pc(s) Tray
Description
Mini-Fit Jr. Header, Dual Row, Right-Angle, with PCB Mounting Peg, 6 Circuits, LCP Housing, 94V-0, Matte Tin (Sn), Glow-Wire Capable
