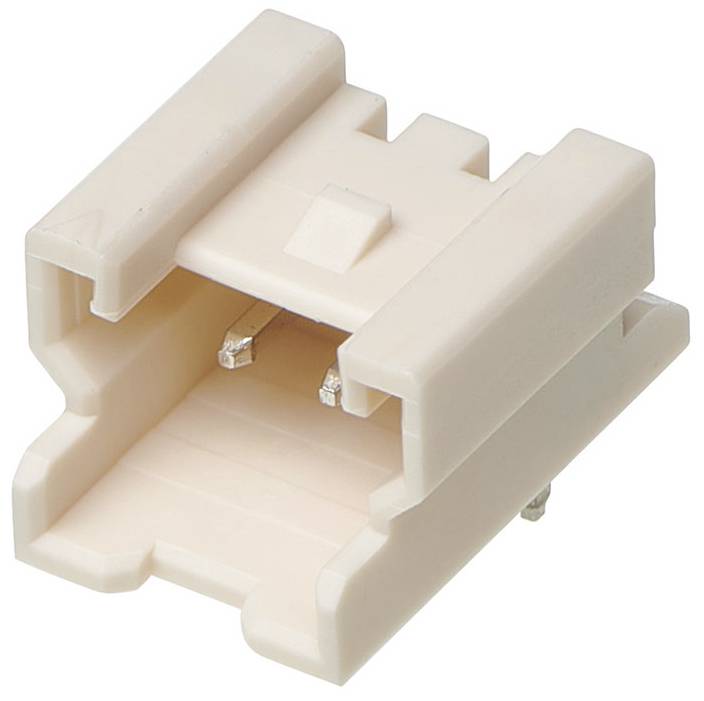

Image similar
Molex Built-in pin strip (standard) Total number of pins 7 Contact spacing: 2 mm 353630760 1 pc(s) Bag
Product type
Built-in pin strip (standard)
No. of rows
1
CS
2 mm
Total number of pins
7
Packaging type
Bag
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 0.38 / piece)
€ 0.47
-19 %
€ 0.38
incl. VAT
14-day return policy included
Highlights & Details
Sherlock 2.0
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 7
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Bag
- Product type
Built-in pin strip (standard)
- No. of rows
1
- Connector system
wire-to-board
- Features
+ locking mechanism
- CS
2 mm
- Total number of pins
7
- Nominal current
2 A
- Nominal current - rounded value
2 A
- Content
1 pc(s)
- Dim
- Connection
Soldering
- Case material
Nylon (NL)
- Manufacturer part #
353630760
- Factory colour
Ecru
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
125 V
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
MOL Power & Signal Sol.
- Engineering Part No
35363-0760
- Engineering Series Name
Hdr RA
- Engineering Series No
35363
Documents & Downloads
Datasheet
Datasheet 2448204 Molex Built-in pin strip (standard) Total number of pins 7 Contact spacing: 2 mm 353630760 1 pc(s) Bag
Circuit diagramm
Circuit diagramm 2448204 Molex Built-in pin strip (standard) Total number of pins 7 Contact spacing: 2 mm 353630760 1 pc(s) Bag
Description
2.00mm Pitch Sherlock Wire-to-Board Header, Right-Angle, with Positive Lock, 7 Circuits
