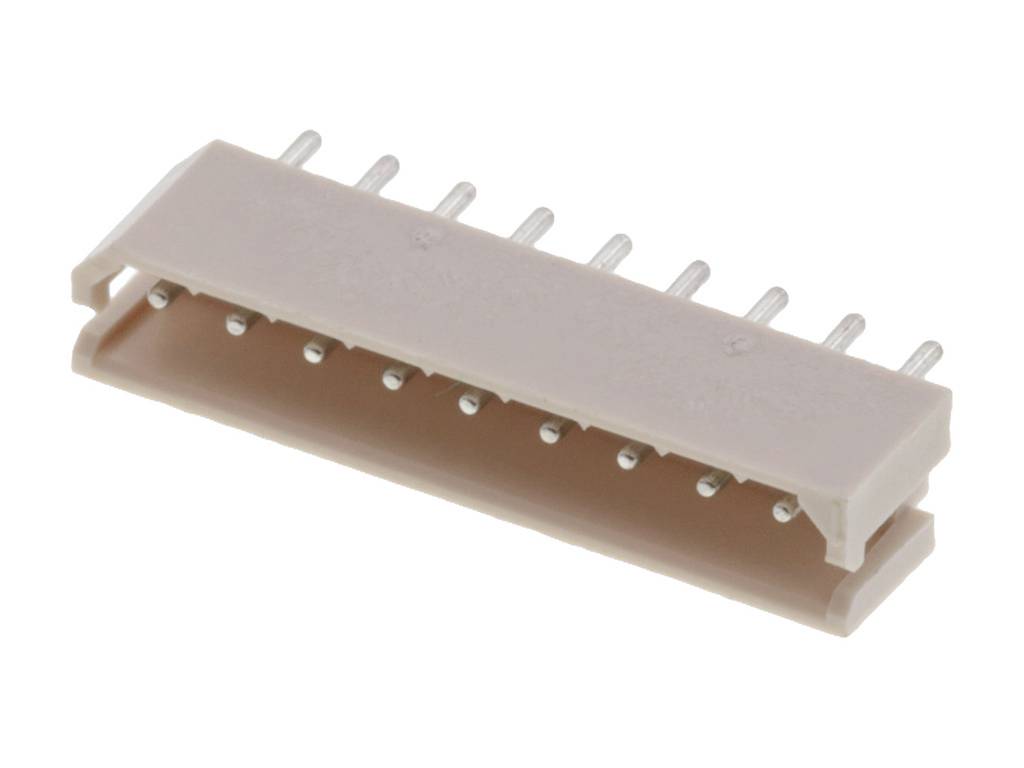

Molex Built-in pin strip (standard) Total number of pins 9 Contact spacing: 2.5 mm 22035095 1 pc(s) Bag
Product type
Built-in pin strip (standard)
No. of rows
1
CS
2.5 mm
Total number of pins
9
Packaging type
Bag
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 250
Multiple: 1
Total (€ 0.54 / piece)
€ 0.99
-45 %
€ 0.54
incl. VAT
14-day return policy included
Highlights & Details
Mini-Spox 2.5
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 9
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Bag
- Product type
Built-in pin strip (standard)
- No. of rows
1
- Connector system
wire-to-board
- Features
+ locking mechanism
- CS
2.5 mm
- Pins per row
9
- Total number of pins
9
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Content
1 pc(s)
- Connection
Soldering
- Coating thickness (PCB side)
4.064 µm
- Connector coating thickness
4.064 µm
- Actuation direction
Perpendicular (to the PCB)
- Case material
Nylon (NL)
- Manufacturer part #
22035095
- Factory colour
Ecru
- Contact material
Tin plated
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
250 V
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
5267-09A
- Engineering Series Name
SGL Hdr Str
- Engineering Series No
05267
Documents & Downloads
Datasheet
Datasheet 2447818 Molex Built-in pin strip (standard) Total number of pins 9 Contact spacing: 2.5 mm 22035095 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 2447818 Molex Built-in pin strip (standard) Total number of pins 9 Contact spacing: 2.5 mm 22035095 1 pc(s) Bag
Circuit diagramm
Circuit diagramm 2447818 Molex Built-in pin strip (standard) Total number of pins 9 Contact spacing: 2.5 mm 22035095 1 pc(s) Bag
Description
2.50mm Pitch, Mini-SPOX PCB Header, Single Row, Vertical, Through Hole, Tin Plating, 9 Circuits, Bag, 3.50mm PC Tail Length
