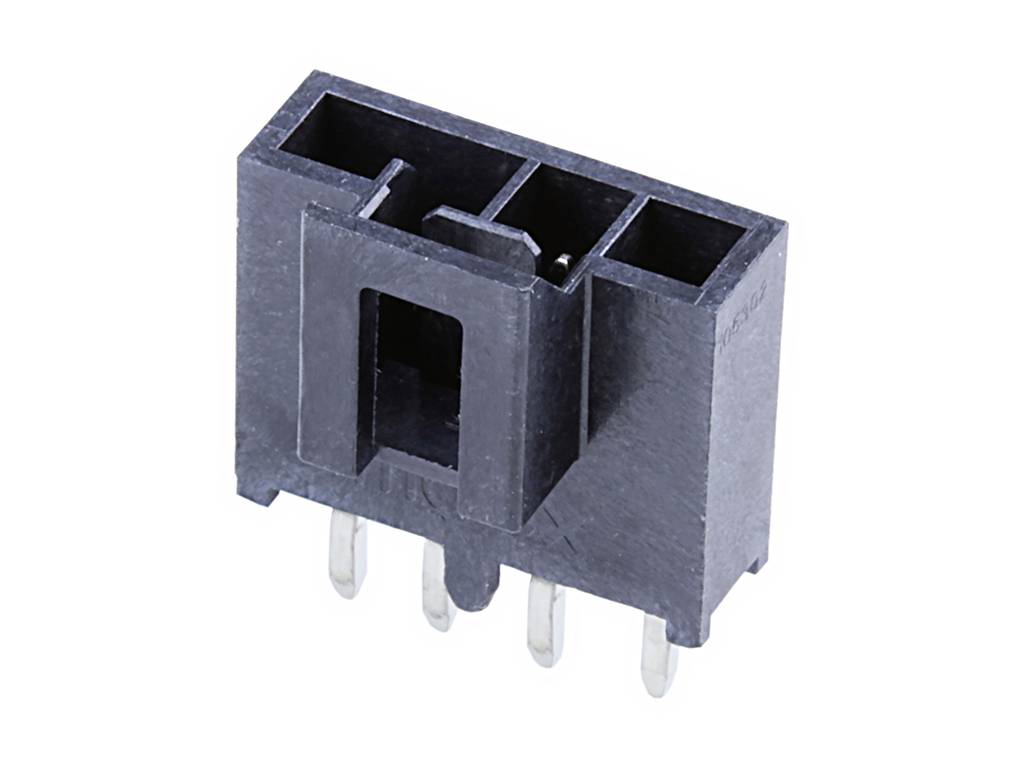

Molex Built-in SIL socket (standard) Total number of pins 4 Contact spacing: 2.5 mm 1053091104 1 pc(s) Tray
Product type
Built-in SIL socket (standard)
Connector type
Power strip
No. of rows
1
CS
2.5 mm
Total number of pins
4
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 312
Multiple: 156
Total (€ 1.29 / piece)
€ 1.29
incl. VAT
14-day return policy included
Highlights & Details
Nano-Fit
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 4
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Built-in SIL socket (standard)
- Connector type
Power strip
- No. of rows
1
- Features
+ locking mechanism
encodable
- CS
2.5 mm
- Pins per row
4
- Total number of pins
4
- Nominal current
8 A
- Nominal current - rounded value
8 A
- Content
1 pc(s)
- Connection
Soldering
- Coating thickness (PCB side)
1.524 µm
- Connector coating thickness
1.524 µm
- Case material
Liquid crystal polymer
- Manufacturer part #
1053091104
- Factory colour
Black
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
250 V DC/AC
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
105309-1104
- Engineering Series Name
Header
- Engineering Series No
105309
Documents & Downloads
Datasheet
Datasheet 2446878 Molex Built-in SIL socket (standard) Total number of pins 4 Contact spacing: 2.5 mm 1053091104 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2446878 Molex Built-in SIL socket (standard) Total number of pins 4 Contact spacing: 2.5 mm 1053091104 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2446878 Molex Built-in SIL socket (standard) Total number of pins 4 Contact spacing: 2.5 mm 1053091104 1 pc(s) Tray
Description
Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Single Row, 4 Circuits, with Kinked Pins, Tin (Sn) Plating, Black, Glow-Wire Capable, Tray
