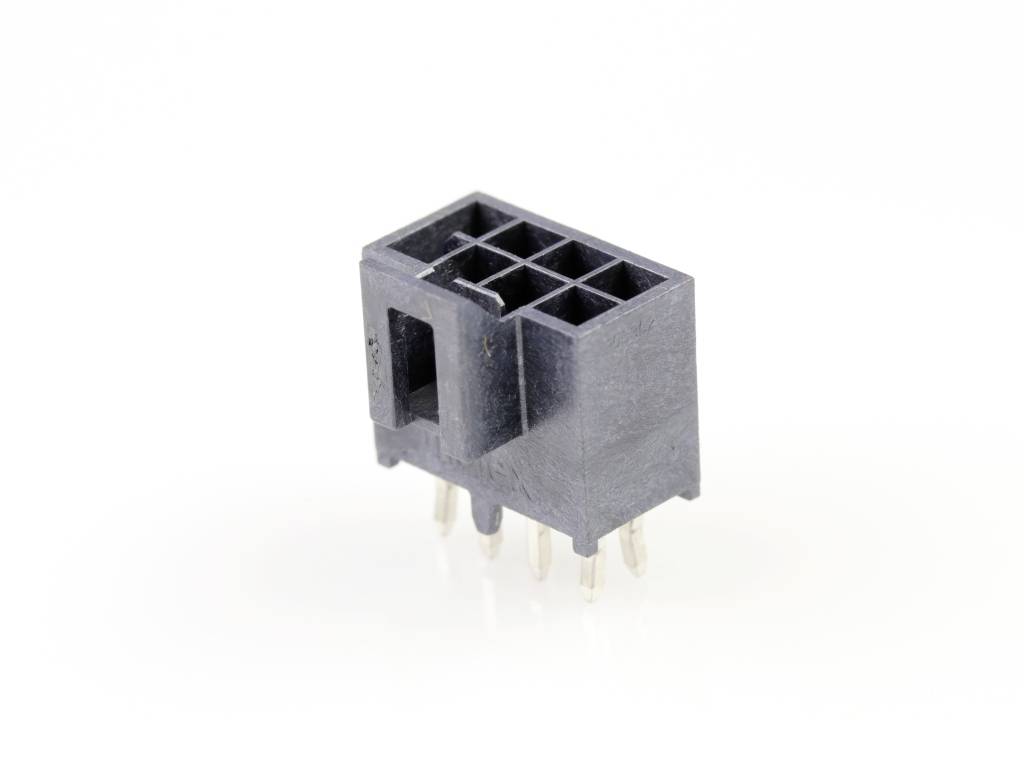

Molex Built-in SIL socket (standard) Total number of pins 8 Contact spacing: 2.5 mm 1053101108 1 pc(s) Tray
Product type
Built-in SIL socket (standard)
Connector type
Power strip
No. of rows
2
CS
2.5 mm
Total number of pins
8
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 50
Multiple: 1
Total (€ 2.50 / piece)
€ 2.50
incl. VAT
14-day return policy included
Highlights & Details
Nano-Fit
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 8
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Built-in SIL socket (standard)
- Connector type
Power strip
- No. of rows
2
- Features
+ locking mechanism
encodable
- CS
2.5 mm
- Pins per row
4
- Total number of pins
8
- Nominal current
7.5 A
- Nominal current - rounded value
7.5 A
- Content
1 pc(s)
- Connection
Soldering
- Coating thickness (PCB side)
1.524 µm
- Connector coating thickness
1.524 µm
- Case material
Liquid crystal polymer
- Manufacturer part #
1053101108
- Factory colour
Black
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
250 V DC/AC
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
105310-1108
- Engineering Series Name
V/A kink dual row
- Engineering Series No
105310
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2446881 Molex Built-in SIL socket (standard) Total number of pins 8 Contact spacing: 2.5 mm 1053101108 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2446881 Molex Built-in SIL socket (standard) Total number of pins 8 Contact spacing: 2.5 mm 1053101108 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2446881 Molex Built-in SIL socket (standard) Total number of pins 8 Contact spacing: 2.5 mm 1053101108 1 pc(s) Tray
Description
Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Dual Row, 8 Circuits, with Kinked Pins, Tin (Sn) Plating, Black, Glow-Wire Capable, Tray
