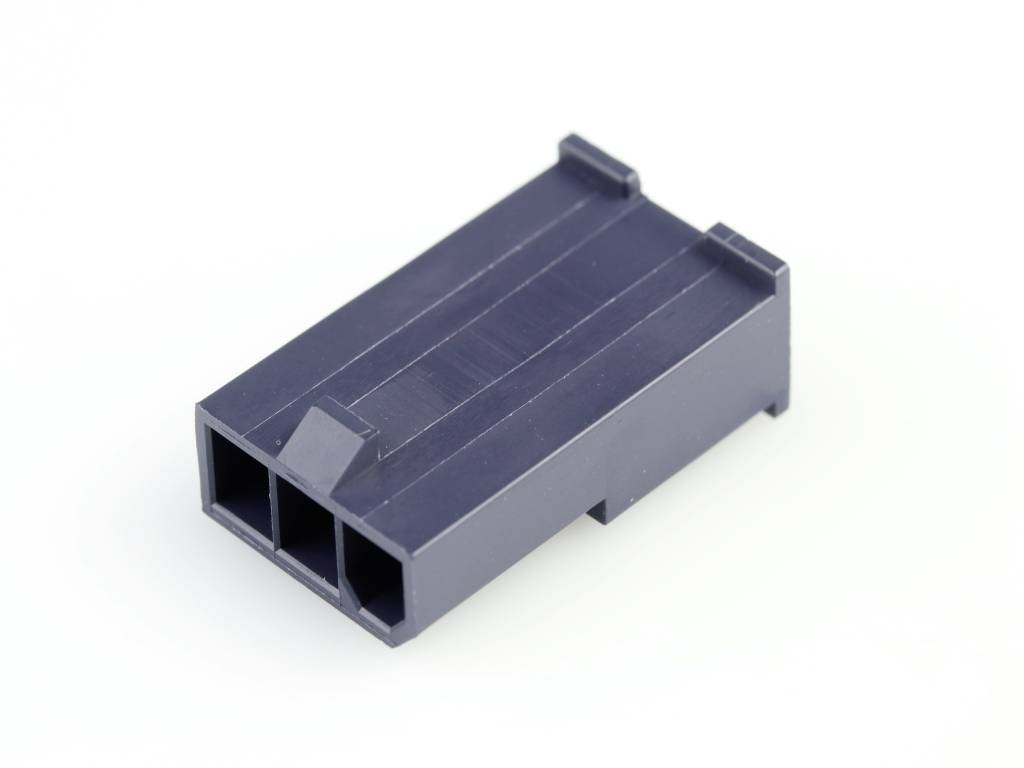

Molex Socket housing cable Total number of pins 3 Contact spacing: 4.2 mm 1726460313 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket housing cable
Connector type
Plug
No. of rows
1
CS
4.2 mm
Total number of pins
3
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.47
50
9% = € 0.04
€ 0.43
100
13% = € 0.06
€ 0.41
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.47 / piece)
€ 0.71
-34 %
€ 0.47
plus VAT.
14-day return policy included
Highlights & Details
MINI FIT
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 3
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Product type
Socket housing cable
- Connector type
Plug
- No. of rows
1
- Features
+ locking mechanism
- CS
4.2 mm
- Total number of pins
3
- Nominal current
13 A
- Nominal current - rounded value
13 A
- Content
1 pc(s)
- Case material
Nylon (NL)
- Manufacturer part #
1726460313
- Factory colour
Black
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
172646-0313
- Engineering Series Name
MiniFit Jr Plug Hsg
- Engineering Series No
172646
Documents & Downloads
Datasheet
Datasheet 2447471 Molex Socket housing cable Total number of pins 3 Contact spacing: 4.2 mm 1726460313 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2447471 Molex Socket housing cable Total number of pins 3 Contact spacing: 4.2 mm 1726460313 1 pc(s)
Circuit diagramm
Circuit diagramm 2447471 Molex Socket housing cable Total number of pins 3 Contact spacing: 4.2 mm 1726460313 1 pc(s)
Description
Mini-Fit Jr. Plug Housing, Single Row without Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-2, Glow-Wire Capable, 3 Circuits
