Monacor AKB-160 Built-in amplifier 40 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 193.27 / piece)
€ 193.27
plus VAT.
Only 3 Piece(s) available

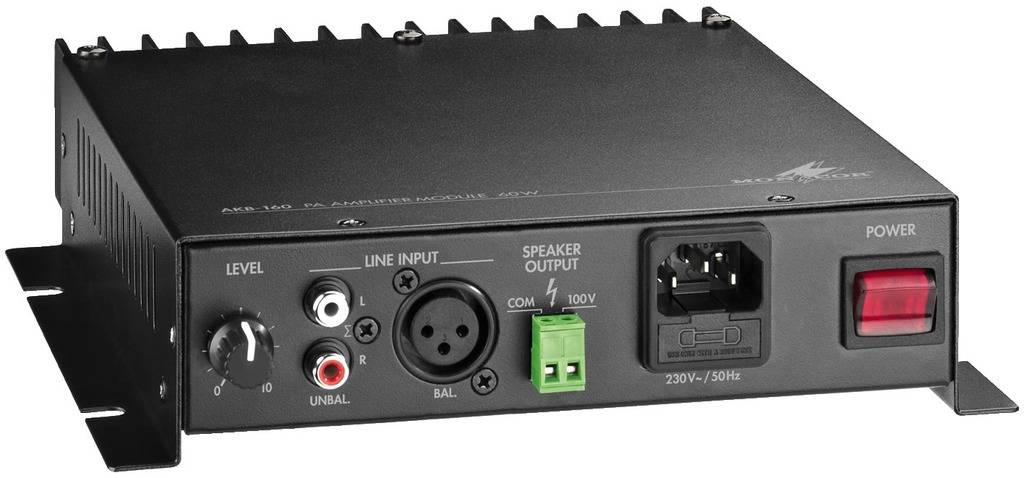

Monacor AKB-160 amplifier module
Highlights & Details
- PA amplifier module with 100 V output
- 1 x 40 W
- Silent operation with no fan cooling concept
- Symmetric (XLR) and asymmetric (cinch) line input
- Speaker output via screw terminal
- Volume control
- Metal housing with mounting angles
- This text is machine translated.
Technical specifications
- Output power: 40WRMS, 60WMAX
- 390 mV/26 kOhm AUX-input: sym. 420 mV/11 kOhm unbalanced.
- Speaker output: 100 V
- Signal-to-noise ratio:> 80 dB
- Distortion factor:< 1%
- Power supply 230 VWechsel/50Hz/75VA
- Permissible operating temperature: 0-40°C
- Aux, Phono: 1 x XLR (line) 1 x RCA L/R (Line)
- Product type
Built-in amplifier
- Power per channel (4Ω)
40 W
- Dim
(W x H x D) 213 x 55 x 238 mm
- Max. frequency
20000 Hz
- Min. frequency
17 Hz
- Weight
3.20 kg
- Width
213 mm
- Height
55 mm
- Depth
238 mm
- Interfaces
XLR in
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1331332 Monacor AKB-160 Built-in amplifier 40 W
User & Safety Instructions
User & Safety Instructions 1331332 Monacor AKB-160 Built-in amplifier 40 W
Description
Features
- ELA amplifier module with 100-V output
- 1 x 40WRMS
- Noiseless operation through fan-less cooling concept
- Symmetric (XLR) and unbalanced (RCA) line input
- Speaker output via terminal connections
- Volume control
- Metal housing with mounting brackets
- This text is machine translated.
