Monacor SAM-200D Built-in amplifier 200 W
EAN:
Part number:
Item no:
Number
Total (€ 189.07 / piece)
€ 189.07
plus VAT.
Only 2 Piece(s) available

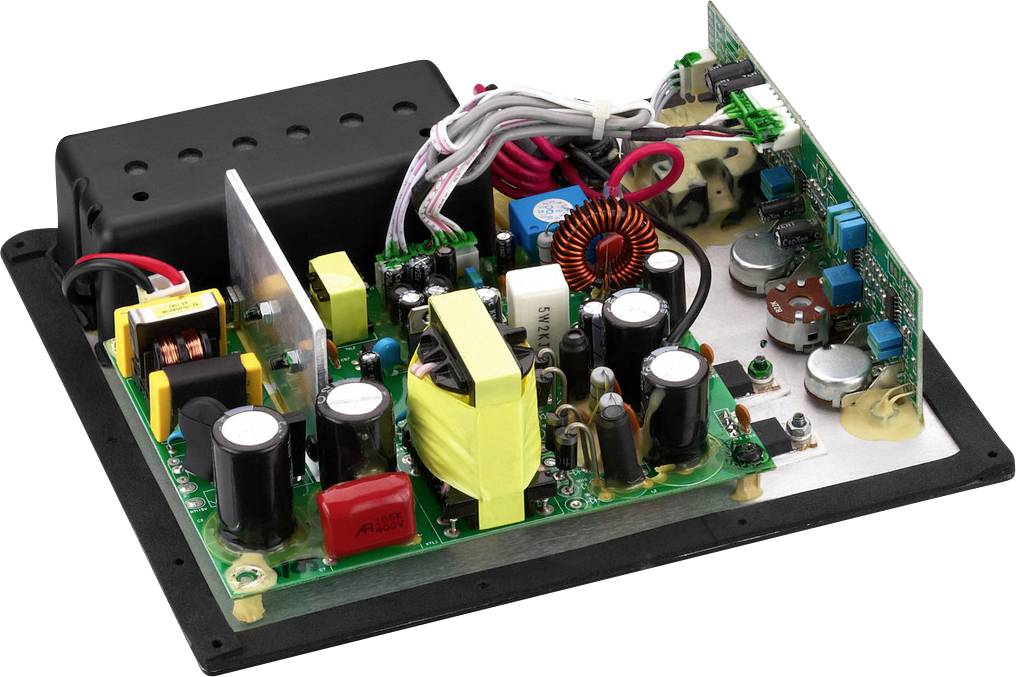

MONACOR SAM-200D digital amplifier module
Technical specifications
- Music output power 4 ohms: 280WMAX
- Music output power 8 ohms: 150WMAX
- The non-linear distortion factor for the sine power: 70 dB
- Quiescent power consumption: 24 VA
- Standby-power consumption: 1.7 W
- Power supply 230 VWechsel/50 Hz/330 VA

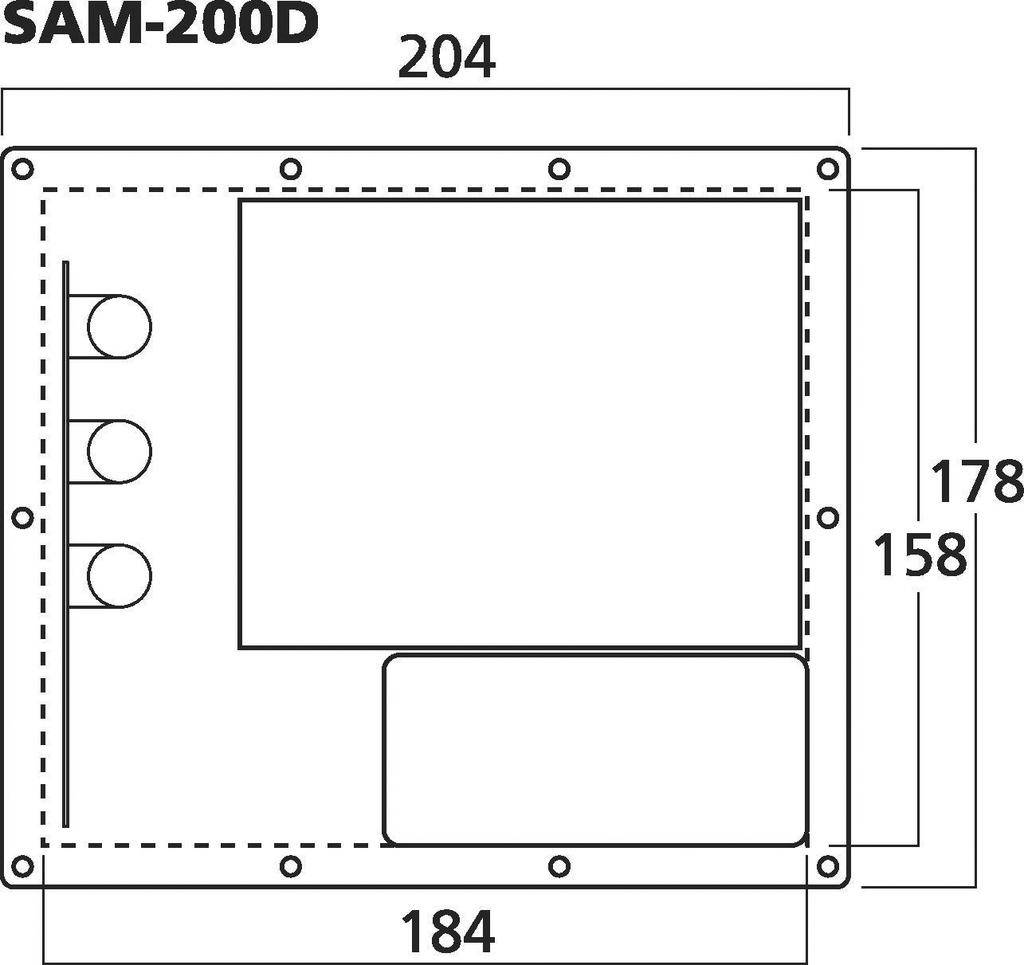

- Cut-out: 185 x 160 mm required boxes
- Installation depth without front plate: 60 mm.
- Product type
Built-in amplifier
- Power per channel (4Ω)
200 W
- Power per channel (8Ω)
100 W
- Dim
(W x H x D) 178 x 204 x 80 mm
- Weight
1.40 kg
- Width
178 mm
- Height
204 mm
- Depth
80 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332520 Monacor SAM-200D Built-in amplifier 200 W
Information
Information 1332520 Monacor SAM-200D Built-in amplifier 200 W
Description
Features
- Active subwoofer modules for the digital age the Digital Active Subwoofer Module from IMG Stage Line with the help of the latest technology in the digital Class D for powerful bass sound in the built-in subwoofer box. The components are characterised by a good power efficiency and energy energy-saving. By design, these price attractive models very easily, which in turn provides for a lower total weight of the box. Class D subwoofer module, 280WMAX, 200WRMS at 4 Ohm
- High-performance active component class-D technology
- Variable low-pass 40-200 Hz (18 dB)
- Infinitely variable phase shift 0 to -180° for optimum adaptation to the main loudspeakers
- Line input, par. Line output
- Integrated bass increase by 3 dB at 40 Hz
- High power reserves
- This text is machine translated.
