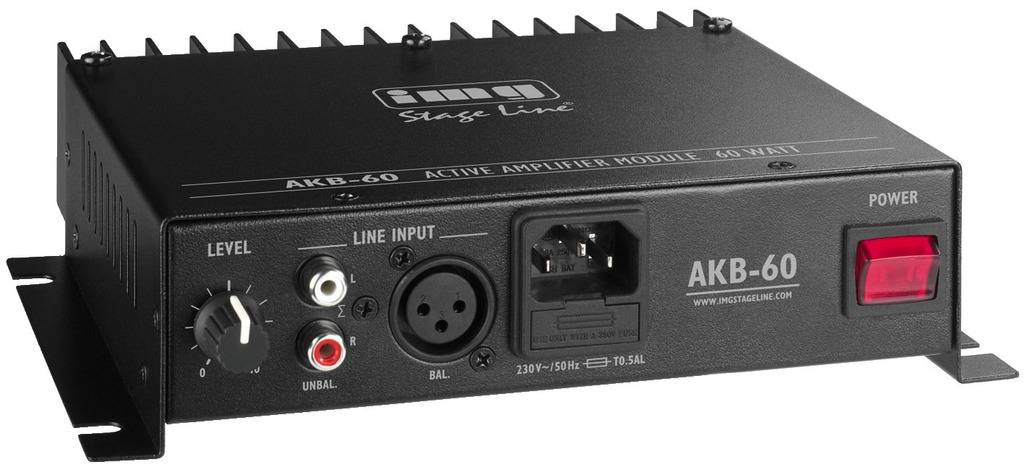

Monacor AKB-60 Built-in amplifier 45 W
EAN:
Part number:
Item no:
Number
Total (€ 121.84 / piece)
€ 121.84
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Music output power: 60WMAX/4 Ohm
- 40 WMAX/8 Ohm
- Distortion factor: 80 dB
- Power supply 230 V AC/50 Hz/90 VA
- Inputs: 1 x XLR, bal. 1 x RCA L/R
- Outputs: speaker cable for the connection of 4- to 8-Ohm-Lautsprecherboxen
- 2-way tone control
- Product type
Built-in amplifier
- Power per channel (4Ω)
45 W
- Power per channel (8Ω)
30 W
- S/N ratio
80 dB
- Dim
(W x H x D) 212 x 190 x 52 mm
- Weight
1.5 kg
- Width
212 mm
- Height
190 mm
- Depth
52 mm
- Interfaces
XLR in
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331335 Monacor AKB-60 Built-in amplifier 45 W
Description
Features
- Active mono speaker module, 60WMAX, 45WRMS at 4 Ohm
- Active component for activating of passive loudspeakers
- For example, for mounting on the rear-side of the passive loudspeakers
- Line input via XLR or cinch
- Master output can be adjusted
- Very well suited as a measuring amplifier from acoustic measurement systems
- Fan-less design with a large heatsink
- This text is machine translated.
