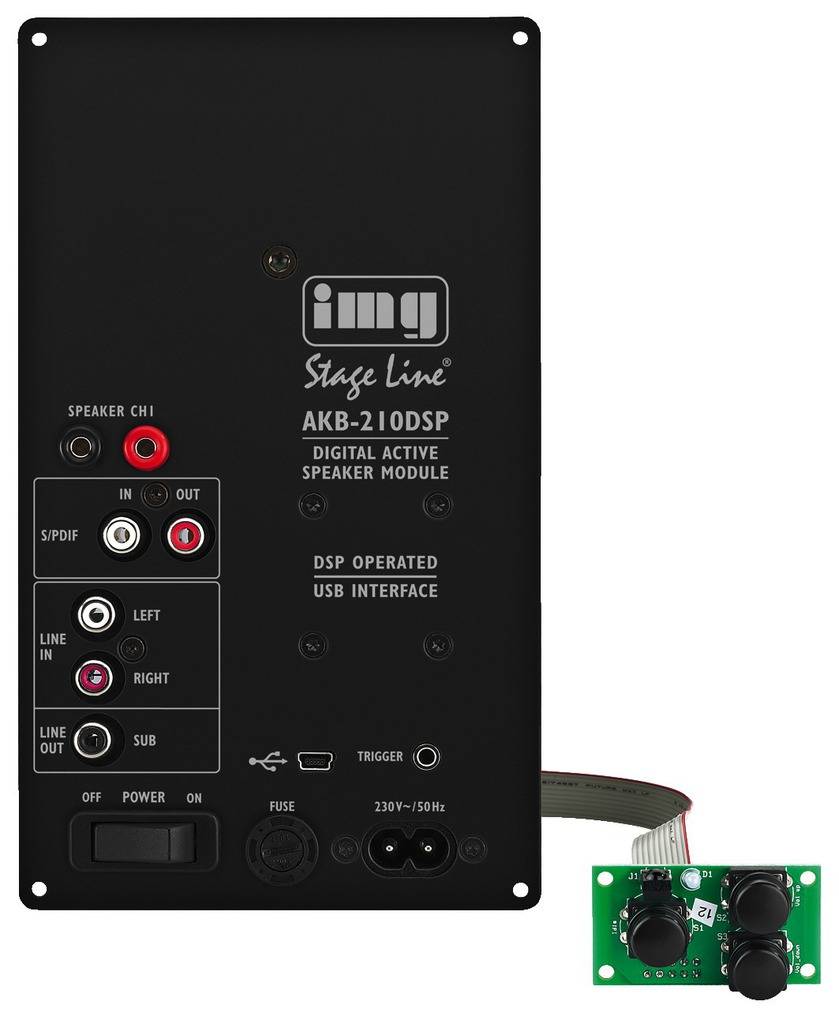

Monacor AKB-210DSP Built-in amplifier 60 W
EAN:
Part number:
Item no:
Total (€ 325.00 / piece)
€ 325.00
incl. VAT
14-day return policy included
Technical specifications
- Music output power: 200WMAX/4 Ohm
- 140WMAX/8 Ohm
- Distortion: 100 dB
- Power supply 230 VWechsel/50 Hz/230 VA
- Req. Boxes section: 310 x 120 mm
- Inputs: 2 x Line input (L/R, unbalanced.), 1 x S/PDIF, 1x mini USB Schnittstellefur DSP Programmierungund Audio-In.1 x trigger, 3.5-mm jack (input/output).1 x mains input socket
- Outputs: 1 x sub-output (line, unbalanced.), 1 x S/PDIF, 4x terminal connectors for 4- to 8-ohm loudspeaker (back side).1 x LSP output via 2 banana jacks (front side)
- Integrated Limiter: via DSP
- Level control: via DSP
- 2-way tone control: via DSP
- Product type
Built-in amplifier
- Power per channel (4Ω)
60 W
- Power per channel (8Ω)
45 W
- Dim
(W x H x D) 115 x 60 x 200 mm
- Weight
1.5 kg
- Width
115 mm
- Height
60 mm
- Depth
200 mm
Description
Features
- Active speaker module with DSP technology, 200WMAX, 120WRMS, with flexible application options
- 2-channel active module (Class D)
- 2 x 60WRMS/4 Ohm
- 3-channel DSP
- S/PDIF input and output
- Audio input via USB interface is possible
- Line output for subwoofer amplifier (3. DSP-channel)
- Link-Ein and output to synchronize two AKB-210 DSP modules
- External Mini Keypad with control keys for on/off and volume control, connection via 50-cm flat ribbon cable
- Optional Touch Panel TP AKB-210 as an alternative to the keypad available
- Built-in infrared receiver for optional IR remote control AKB-210 RC
- Including software (Windows* XP/Vista/7/8)
- The software adjustable parameters: Biquad-Filterfunktionen (Bell, notch, Allpass, Low Shelf, High shelf, band-pass, High Pass, Low Pass), Delay, Limiter, gain for the inputs, Master Volume, Low Cut
- Circuit breaker
- Over heating protection
- Bridge mode can be configured via software
- Supplied with mains cable, USB cable, link cable (3.5 mm jack), Mini Keypad Application examples: With a akb-210 DSP
- Passive gefilteres stereo system
- 2-way active system for the control of the woofer and tweeter a box.
- Bridge Mode for operating a subwoofer or single loudspeaker with higher LeistungMit two AKB-210 DSP
- 2-way, active filtered stereo system
- 2-channel system with active subwoofer
- 2-channel system with bridged power amps for higher power additional 3. DSP-channel
- The 3. DSP-programmable line output expands the application possibilities of the module enormously. Through the control of additional power amplifiers can be controlled from active 3-way speakers via fully active subwoofer/satellite speaker systems a variety of different concepts to configure and implement.
