MONTECH Metal120 PWM PC fan Black (W x H x D) 120 x 120 x 25 mm

A black computer fan with five blades and the inscription 'Montech'.

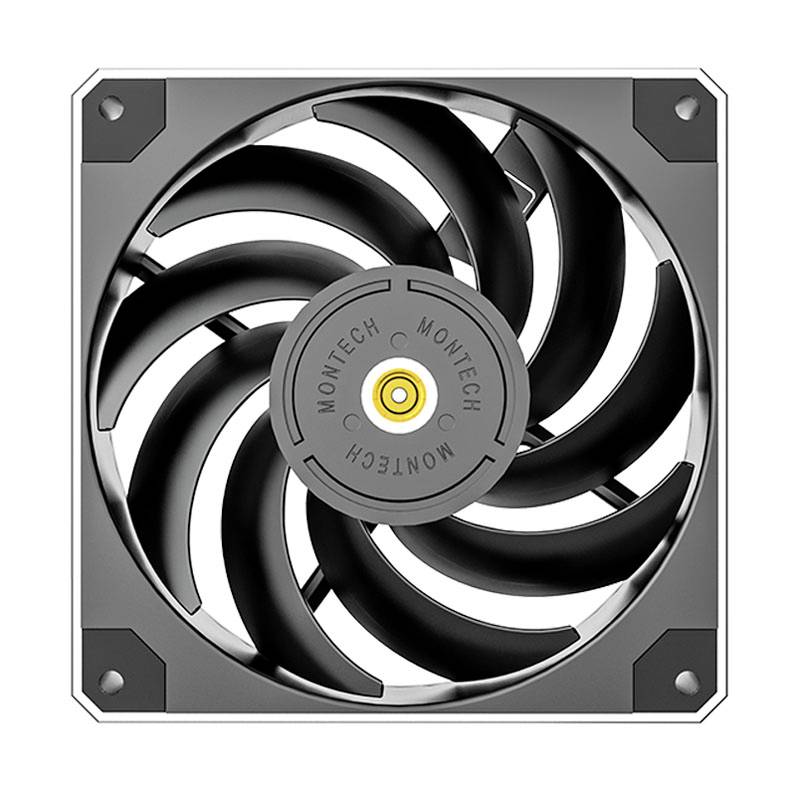

A black computer fan with six blades, viewed from above. The 'Montech' brand logo is visible in the centre.

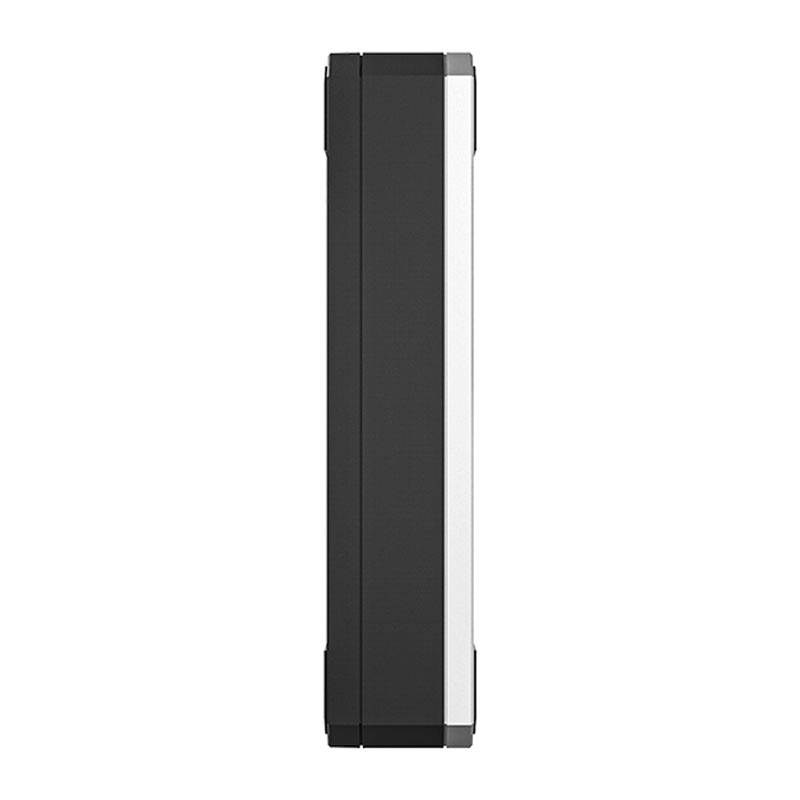

'Image of a black and white, rectangular object with vertical lines, possibly a narrow box or device.'

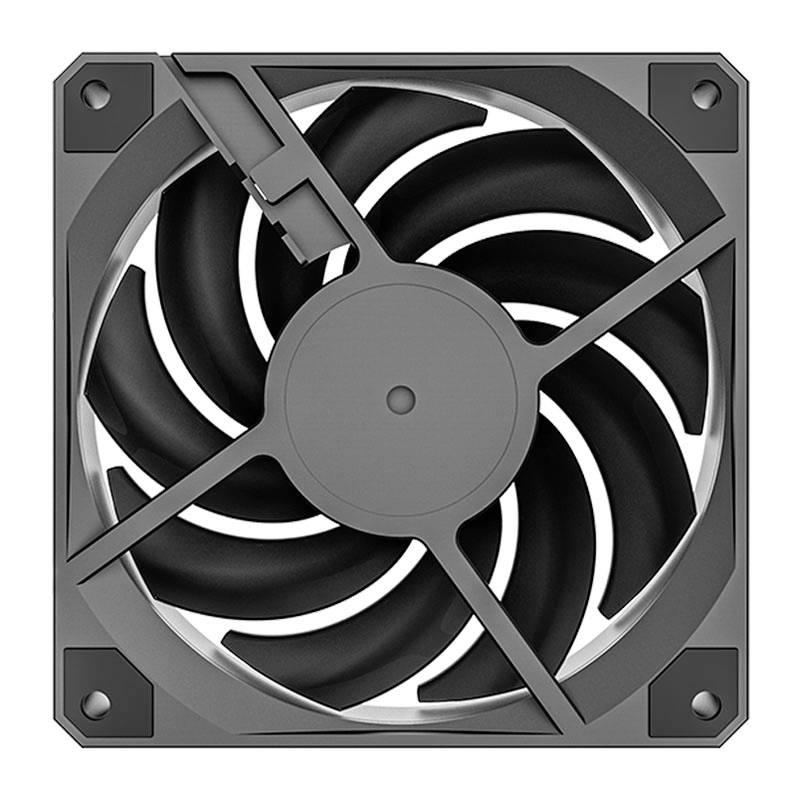

A computer fan in a square casing, with black blades and a grey border, serves to cool electronic components.

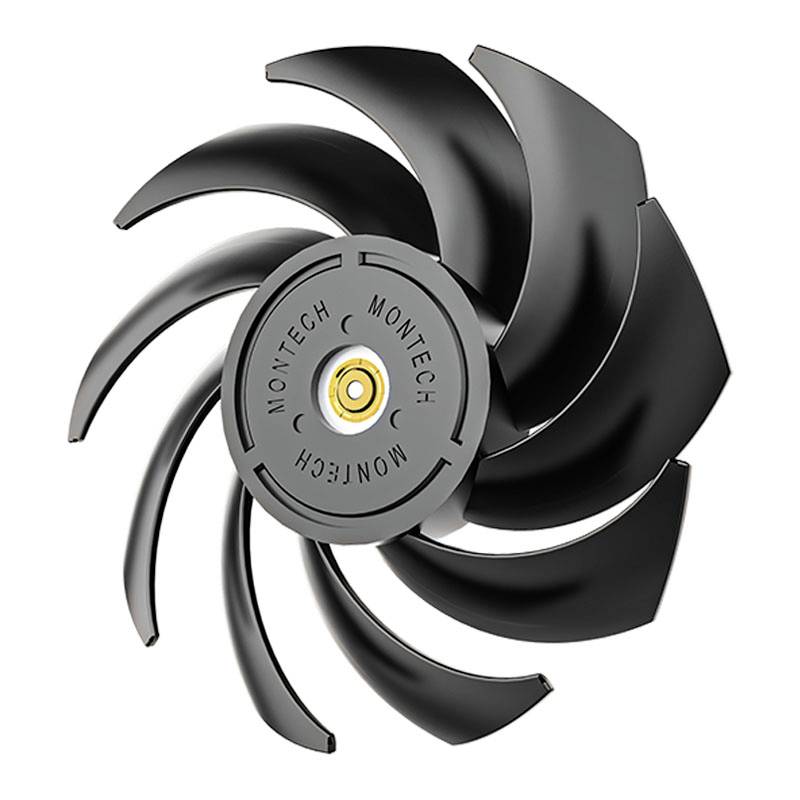

A black computer fan with multiple blade-like fins arranged in a screw-like pattern, with the brand name 'Montech' in the centre.

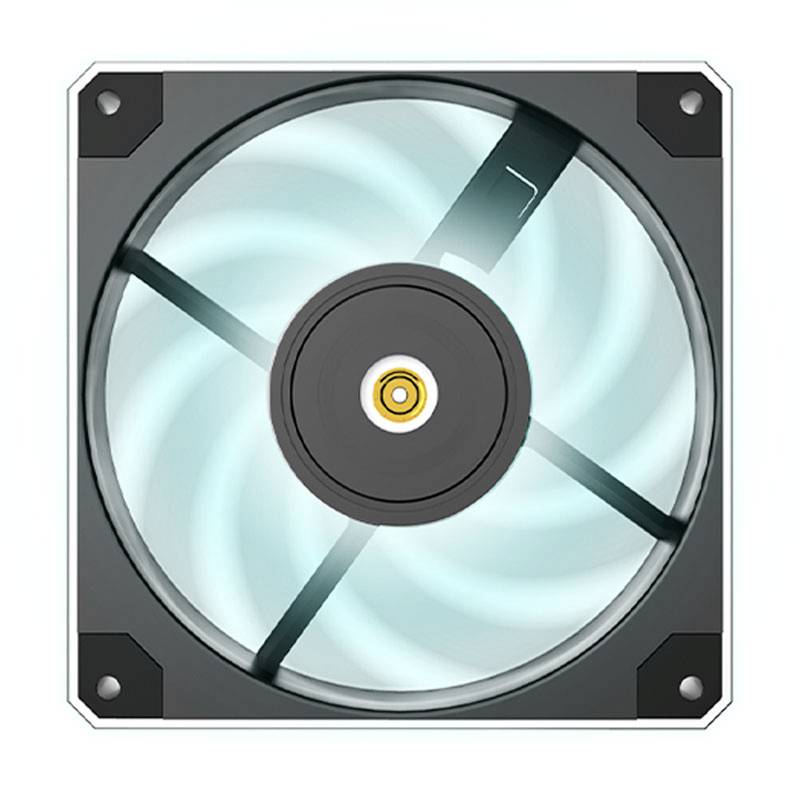

A square computer cooler with a glowing, transparent fan in blue light, mounted in a black frame.

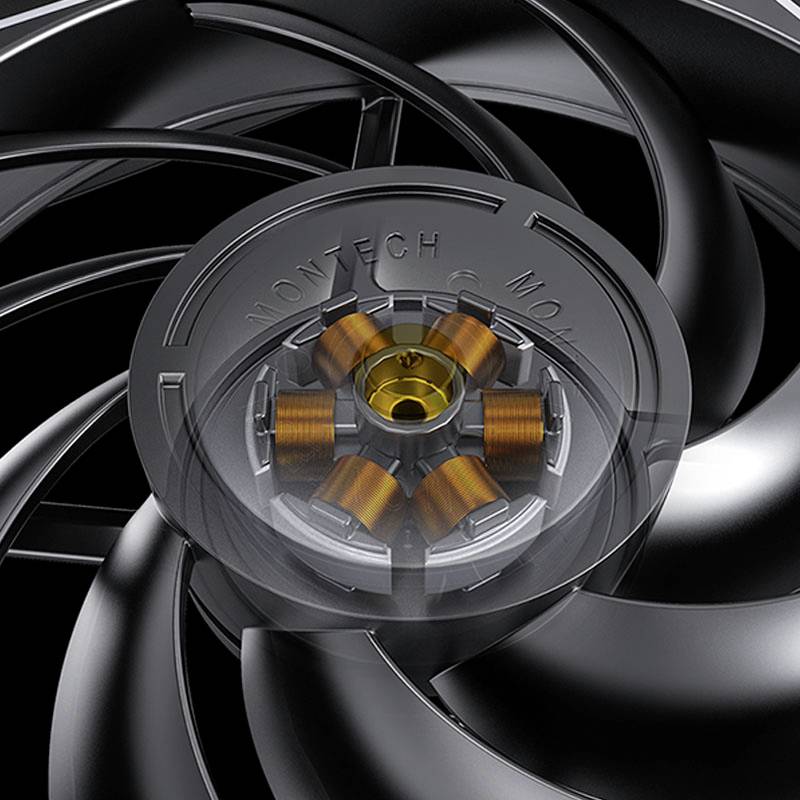

A close-up image of a glossy black, spiral-shaped fan with a central copper coil motor.

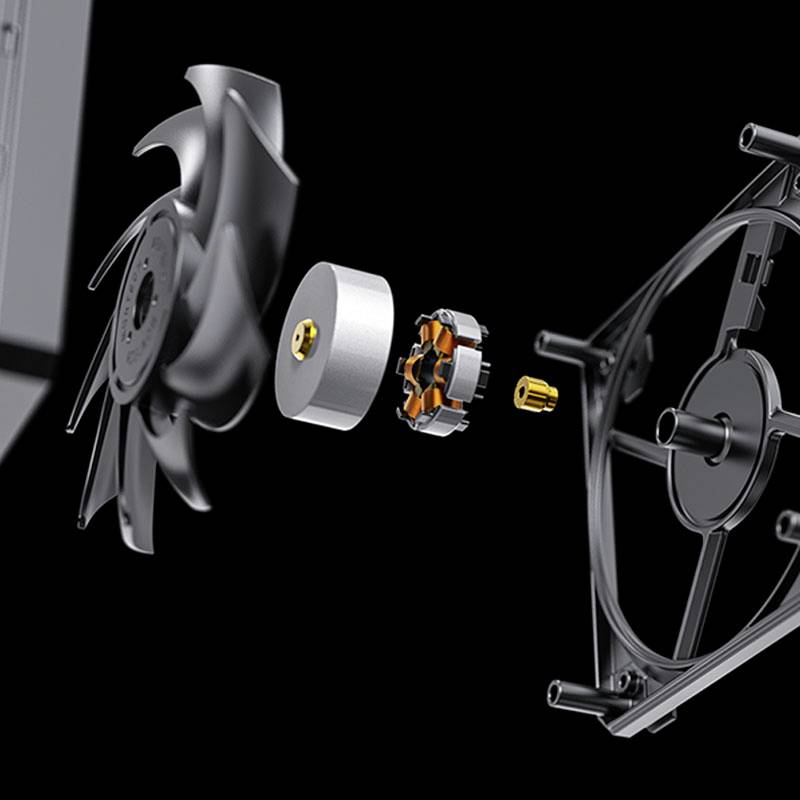

Dismantled representation of a computer fan: rotor blades, hub, motor and frame shown as separate components against a black background.

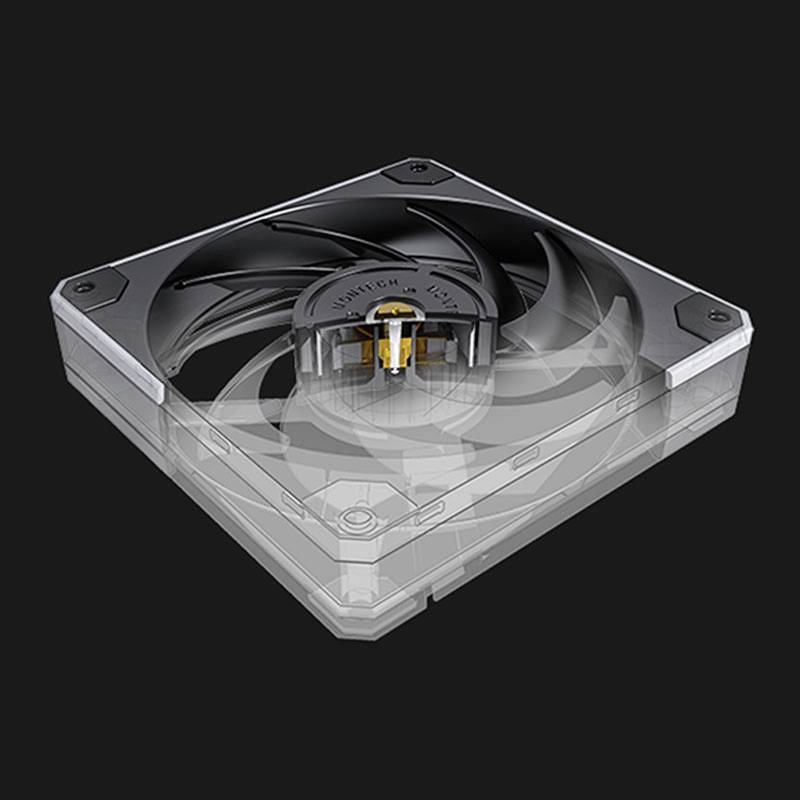

A black and silver computer fan with five curved blades lies on a dark background.
1/9
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 11.99 / piece)
€ 11.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

MONTECH Metal120 PWM PC fan

  • Black case fan with nine white rotor blades
  • PWM-controlled speed range from 800 to 1,950 rpm
  • Including vibration dampers made of rubber
  • High displacement volume of 117.23 m³ / h.

Technical specifications

  • Material: Plastic, rubber
  • Colour: Black (frame), black (fan blades)
  • Air pressure 2.82 mm H2O
  • Operating voltage 12 V.
  • 4 pin PWM connector
Product type

PC fan

Fan size

120 mm

Noise emission (max.)

26 dBa

Noise emission

20.1 dBa - 30 dBa

Rotational speed (min.)

800 U/min

Air discharge

117.23 m³/h

Rotational speed (max.)

1950 U/min

Connection

4-pin PWM

Factory colour

Black

Weight

1850 g/m²

Width

120 mm

Height

120 mm

Depth

25 mm

Dim

(W x H x D) 120 x 120 x 25 mm

Content

1 pc(s)

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2996604 MONTECH Metal120 PWM PC fan Black (W x H x D) 120 x 120 x 25 mm

Description


Montech Metal120 PWM: Powerful and smooth housing fans
The Montech Metal120 PWM is a high-performance 120-mm fan that was developed for use as an internal fan. Nine blades provide a displacement of 117.23 m³/h and a static pressure of 2.82 mmH2O. The fan is controlled by PWM-signal in a speed range of 800 to 1,950 rotations per minute.

At maximum speed the Montech Metal120 PWM generates a low volume of 26 dB(A). The quiet and silent bearing and the vibration damper made of rubber ensures that no vibrations are transferred to the housing. The fan comes with four screws for mounting on the housing and eight rubber dampers.
