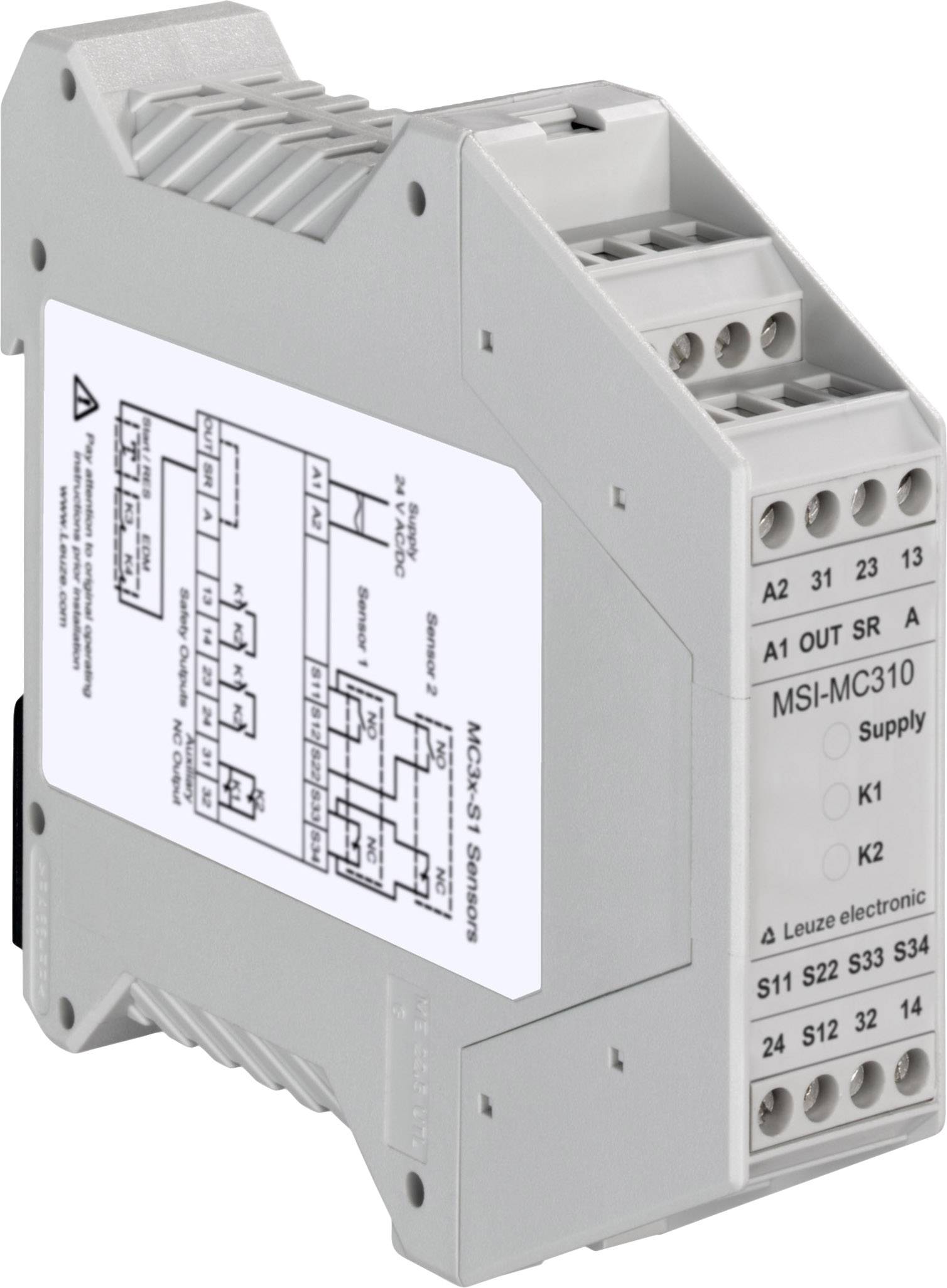

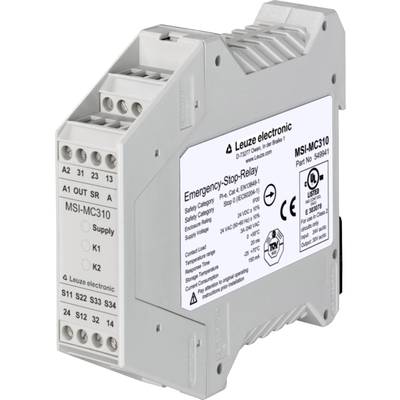

MSI-MC310 Leuze Electronic 2 makers, 1 breaker (W x H x D) 22.5 x 99 x 113.6 mm 1 pc(s)
Type
MSI-MC310
Max. operating voltage
24 V DC
Operating voltage
24 V DC (max)
Response time
20 ms
Contact type
2 makers
1 breaker
EAN:
Part number:
Item no:
Number
Total (€ 289.00 / piece)
€ 289.00
incl. VAT
14-day return policy included
Technical specifications
- Safety category: 4 1 sensor is connected), 3 (more than 1 sensor is connected)
- Performance Level PL e (1 sensor connected), PL d (more than 1 sensor connected)
- Type (misc.): safety switching device
- Type
MSI-MC310
- Max. operating voltage
24 V DC
- Operating voltage
24 V DC (max)
- Response time
20 ms
- Contact type
2 makers
1 breaker
- Switching voltage (max.)
24 V DC
240 V AC
- Switching current (max.)
1.5 A
- Max. switching capacity
720 W
- Performance level
PL e
- Safety rating
4
- Operating temperature (min.)
0 °C
- Operating temperature (max.)
+55 °C
- Depth
113.6 mm
- Width
22.5 mm
- Height
99 mm
- Dim
(W x H x D) 22.5 x 99 x 113.6 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1362576 MSI-MC310 Leuze Electronic 2 makers, 1 breaker (W x H x D) 22.5 x 99 x 113.6 mm 1 pc(s)
Description
Suitable safety switching device for magnetic coded sensors, among other things, of the type MC336 and MC 388. These sensors contain a special combination reed contact by the coded magnetic field of actuator contact-activated. If for example a door is opened, the distance between the here mounted actuator from the sensor, located on the stationary part of the separating protective equipment. The change of the position of the actuator reaches the maximum value of the defined distance, the switching status is indicated by the safety switching device connected to the sensor captures and two fail-safe OSSD contacts of the control signals.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Safety switching device MSI-MC 310
Hints
Sensor and actuator are not included in the delivery. Please order separately.
