Murrelektronik MB CAP Ultra 3/24 12s Add-On 85462 Energy storage
Datasheet (PDF)
EAN:
Part number:
Item no:
2 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 325.00 / piece)
€ 325.00
incl. VAT
Only 2 Piece(s) available
Only available for business customers
14-day return policy includedHighlights & Details

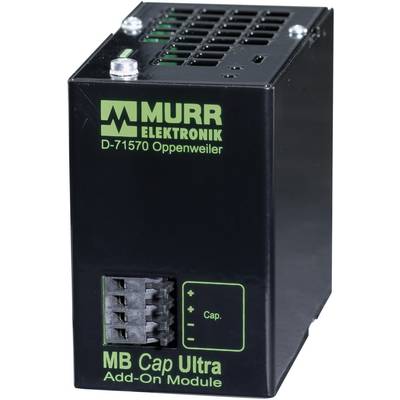

Murrelektronik MB CAP Ultra 3/24 12s Add-On 85462 Energy storage
- Simple expansion of existing system
- Expansion of system for buffer time 12 s with 3 A load per module
Technical specifications
- Input voltage
24 V DC
- Product type
Energy storage
- Nominal power
72 VA
- Output
Spring-loaded terminal
- Input voltage (max.)
26.4 V DC
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V
- Dim
(W x H x D) 60 x 100 x 125 mm
- Rechargeable battery capacity (details)
1 kJ
- Connections
Cage-clamps
- Output current (details)
3 A
- Weight
0.6 kg
- Width
60 mm
- Height
100 mm
- Depth
125 mm
- Type
MB CAP Ultra 3/24 12s Add-On
- Features
Capacitive energy storage
- Bridging time, max load
12 s
- Output voltage
24 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 512871 Murrelektronik MB CAP Ultra 3/24 12s Add-On 85462 Energy storage
User & Safety Instructions
User & Safety Instructions 512871 Murrelektronik MB CAP Ultra 3/24 12s Add-On 85462 Energy storage
Description
The MB Cap Ultra – Add-On Module serves to increase the buffering power of the device MB Cap Ultra 3 / 24 7s The charging and discharging of the expansion modules is monitored and controlled by the MB Cap Ultra 3/24 7s.
Features
- 24 V Input-/output voltage
- Cascadierung of many expansion module increases system flexibility.
- Fast, tool-free wiring by cage clamps
