Name: Neutrik NC3MX1-TOP XLR connector Plug, straight Number of pins: 3 Mono Silver 1 pc(s)
Brand: Neutrik
SKU: 3773811
Availability: InStock

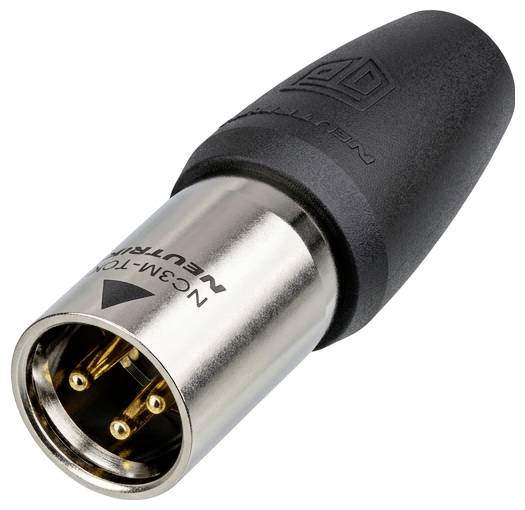

Close-up of a Neutrik XLR male audio connector with a black rubber housing and three-pin metal plug<br>

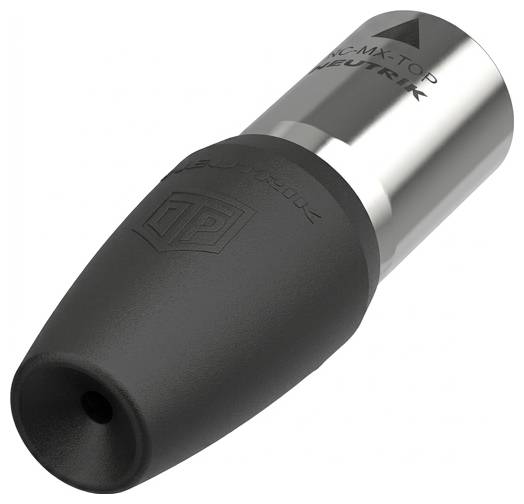

Close-up of a black and silver audio adapter plug with 'SUPERTRICK' branding, shown on a white background.<br>

1/2

Product type

XLR connector

Connector type

Plug, straight

Connection

Soldering

Number of pins

Contact material

Brass gold plated

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

44 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 14.99 / piece)

€ 14.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

NC3MX1-TOP 3-pin cable connector, TRUE OUTDOOR PROTECTION (TOP), gold-plated contacts

XLR connector
Plug, straight

Technical specifications

Dielectric strength 1.5 kVdc
Capacity between the contacts: Up to 4pF
Flammability: UL 94 V-0
Compliance: IEC 61076-2-103 and certified to IEC 61984:2008
Tightening force: Up to 20 N

Type: TRUE OUTDOOR PROTECTION (TOP) , waterproof and UV-resistant

Product type: XLR connector

Connector type: Plug, straight

Factory colour: Silver

Connection: Soldering

Number of pins: 3

Type: NC3MX1-TOP

Contact material: Brass gold plated

Material (details): Housing and locking element made of stainless steel
Application made of polyamide (PA66)
Clamping sleeve made of polyacetal
Bend protection made of UV-resistant rubber

Manufacturer part #: NC3MX1-TOP

Type: NC3MX1-TOP

: 16

Connector cross section: 1.5 mm²

Audio channels: Mono

Outside Ø: 22.52 mm

Industrial packaging: Yes

Content: 1 pc(s)

Cable Ø (max.): 8 mm

Cable Ø up to: 5 mm

Cable Ø range: 5 - 8 mm

Bend relief: Yes

Nominal voltage: 50 V

Nominal current: 16 A

Width: 22.52 mm

Height: 22.52 mm

Length: 64 mm

(Ø): 22.52 mm

: IP65

Temperature range: -30 °C to 80 °C

Documents & Downloads

Datasheet

Datasheet 3773811 Neutrik NC3MX1-TOP XLR connector Plug, straight Number of pins: 3 Mono Silver 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3773811 Neutrik NC3MX1-TOP XLR connector Plug, straight Number of pins: 3 Mono Silver 1 pc(s)

Description

3-pin cable plug, TRUE OUTDOOR PROTECTION (TOP), gold-plated contacts. Sealed XLR plug for use in harsh environments with the highest requirements.
Protected according to IP65 for outdoor applications when connected with the corresponding mating plug/socket of the XLR-TOP series.
