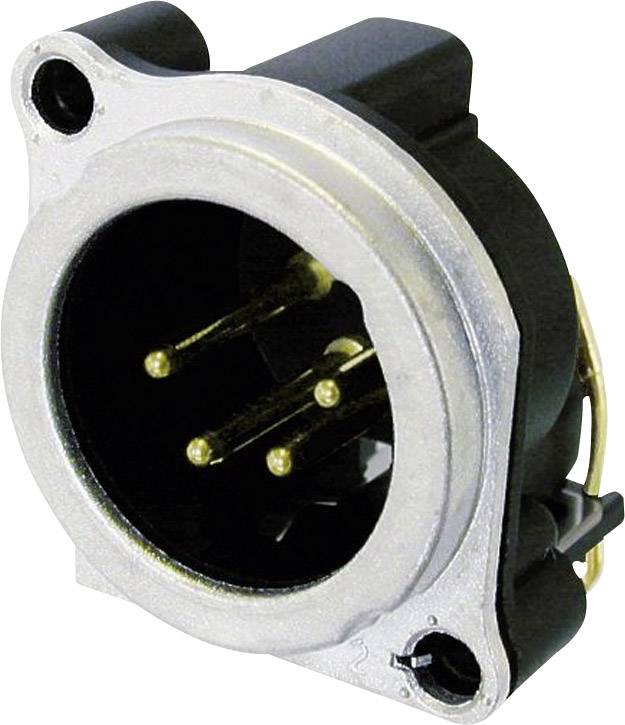

Image similar
Neutrik NC4MBV XLR connector Sleeve plug, straight pins Number of pins: 4 Silver 1 pc(s)
Product type
XLR connector
Connector type
Sleeve plug, straight pins
Connection
Print
Number of pins
4
Contact material
Nickel plated
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 2.29 / piece)
€ 2.29
incl. VAT
14-day return policy included
Highlights & Details
XLR-FLANGE PLUG B series
- XLR connector
- Sleeve plug, straight pins
Technical specifications
- Product type
XLR connector
- Connector type
Sleeve plug, straight pins
- Factory colour
Silver
- Connection
Print
- Number of pins
4
- Contact material
Nickel plated
- Manufacturer part #
NC4MBV
- Type
NC4MBV
- Content
1 pc(s)
- Cable Ø range
- Nominal voltage
50 V AC
- Nominal current
6 A
- Temperature range
-30 - +80 °C
- Seal type
Spring-lock
Documents & Downloads
Datasheet
Datasheet 651120 Neutrik NC4MBV XLR connector Sleeve plug, straight pins Number of pins: 4 Silver 1 pc(s)
Description
4-pin chassis plug, earthing: separate ground contact with the housing of the connector and Front Panel, horizontal PCB mounting
The B series is a series very similar. The difference is in a metal ring on the front side, the best ground connection to the front plate. The all-round ground contact provides a shield against EMI interference.
