Name: Neutrik NL4FXX-W-S Audio jack Plug, straight Number of pins: 4 Black-green 1 pc(s) Piece
Brand: Neutrik
SKU: 3123464
Availability: InStock

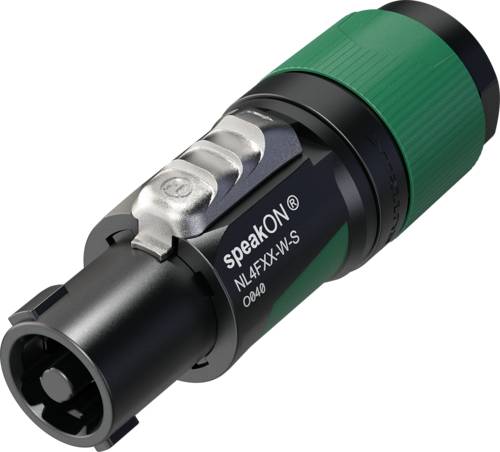

A black and green speakON audio plug with the model number NL4FX-W-S, suitable for connecting speakers to amplifiers.

Packaging type

Piece

Product type

Audio jack

Connector type

Plug, straight

Connection

Screw terminal

Number of pins

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

387 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 8.99 / piece)

€ 8.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

CABELCON 4-PIN FXX SPEAKON SMALL

Audio jack
Plug, straight

Technical specifications

Packaging type: Piece

Product type: Audio jack

Connector type: Plug, straight

Factory colour: Black-green

Connection: Screw terminal

Number of pins: 4

Manufacturer part #: NL4FXX-W-S

Type: NL4FXX-W-S

Content: 1 pc(s)

Cable Ø (max.): 12 mm

Cable Ø up to: 6 mm

Cable Ø range: 6 - 12 mm

Bend relief: Yes

Width: 2.94 mm

Height: 8.50 mm

Cable use: Loudspeaker

Weight: 47.2000

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3123464 Neutrik NL4FXX-W-S Audio jack Plug, straight Number of pins: 4 Black-green 1 pc(s) Piece

Description

4-pin Speakon cable connector, screw terminals, clamp strain relief, cable diameter from 6 to 12 mm. The speakON cable connectors are the standard plug connectors for amplifier / speaker connections. The 2- and 4-pin speakON cable plugs were developed especially for high power loads, as found in the public address and PA ranges. The speakON cable connector in the robust plastic housing has a traditional Neutrik collets strain relief, a unique locking system and contact-proof contacts.

This text is machine translated.

Features

New ergonomic design with non-slip two-component housing
Easy to mount: Chuck mechanically locks in use. Both components form a fixed unit
Nominal current up to 37 A effective current (RMS)
Unique Neutrik lock and strain relief for cable diameters from 6 to 12 mm
IEC 61984 certified and thus permitted as a component for devices according to IEC 62368-1
Superior Neutrik quality standard, extremely robust and reliable
Simple and reliable rotating-locking system
Improved kink protection through two-component adapter sleeve
