Noctua NF-F12 PC fan Black (W x H x D) 120 x 120 x 25 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 26.88 / piece)
€ 26.88
plus VAT.

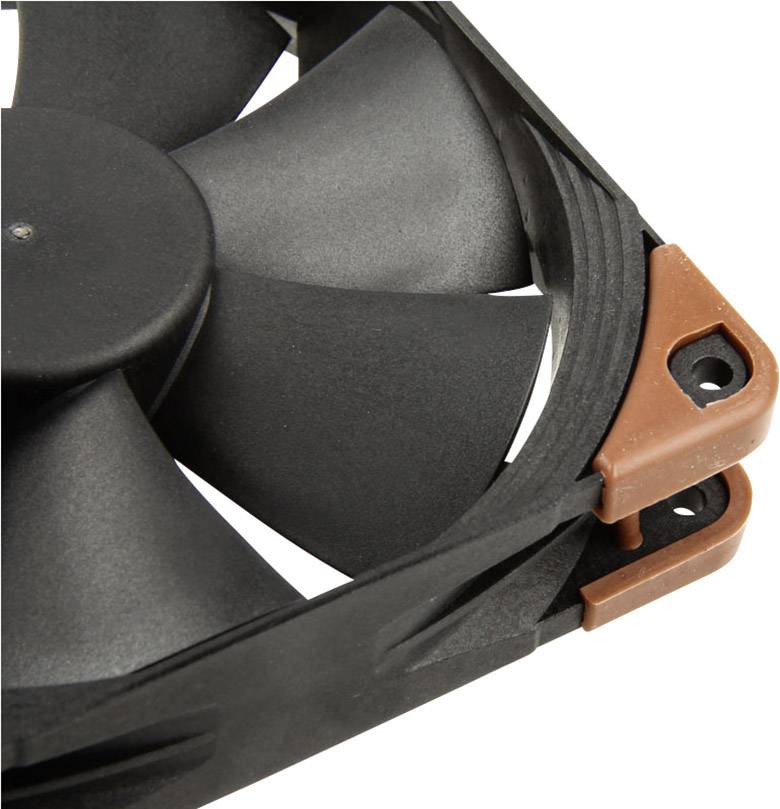

Noctua NF-F12 PC fan
Highlights & Details
- Extremely high-quality 120 mm fan from Noctua with PWM connection
- Water/dust protection (IP52) and max. 186.7 m³/h (3,000 rpm)
Technical specifications
- Product type
PC fan
- Fan size
120 mm
- Noise emission (max.)
43.5 dBa
- Noise emission
40.1 dBa - 50 dBa
- Rotational speed (min.)
750 U/min
- Air discharge
186.7 m³/h
- Rotational speed (max.)
3000 U/min
- Type of bearing
N/A
- Connection
4-pin PWM
- Factory colour
Black
- Weight
270 g
- Width
120 mm
- Height
120 mm
- Depth
25 mm
- Dim
(W x H x D) 120 x 120 x 25 mm
- Content
1 pc(s)
- Screen size diagonal (inches)
24 inch
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2205433 Noctua NF-F12 PC fan Black (W x H x D) 120 x 120 x 25 mm
User & Safety Instructions
User & Safety Instructions 2205433 Noctua NF-F12 PC fan Black (W x H x D) 120 x 120 x 25 mm
Description
Noctua NF-F12 industrial PPC-3000 PWM - 120mm.
This text is machine translated.
This text is machine translated.
Features
- Dimensions 120 x 120 x 25 mm (W x H x D)
- Material: plastic
- Color: Black, brown
- Speed 750 - 3,000 rpm (+/- 20%)
- Air flow max. 186.7 m³/h
- Static pressure: Max. 7.63 mm H2O
- Volume: Max. 43.5 dB(A)
- Max. voltage 12 V
- Consumption: Max. 3.6 W
- Connection: 4-pin PWM
- 150.000 h (MTBF) service life
- Water and dust protection: IP52
