OBO Bettermann 2007093 Junction box (L x W x H) 190 x 150 x 77 mm Grey-white (RAL 7035) IP66 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
5% = € 0.67
€ 12.77
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 22.68
-41 %
€
Highlights & Details
Junction box T 160 190 x 150 x 77 mm, light gray
- IP66
- Halogen-free
- Without terminals
Technical specifications
- Max. Conductor cross-section=16 mm²
- Assembly=without
- shape=rectangular
- Mounting type=Wall/ceiling mounting
- Entry from behind=yes
- stackable=yes
- Number of inserts=12
- Type of housing feedthrough=stage membrane can be cut
- Color=gray
- Cover mounting=screwed
- Rated insulation voltage UI=500 V
- Function retention=without
- shielding=no
- weather-resistant=no
- for Ex-Zone gas=without
- Factory colour
Grey-white (RAL 7035)
IP66
- Permanent temperature resistance
650 °C
- Dim

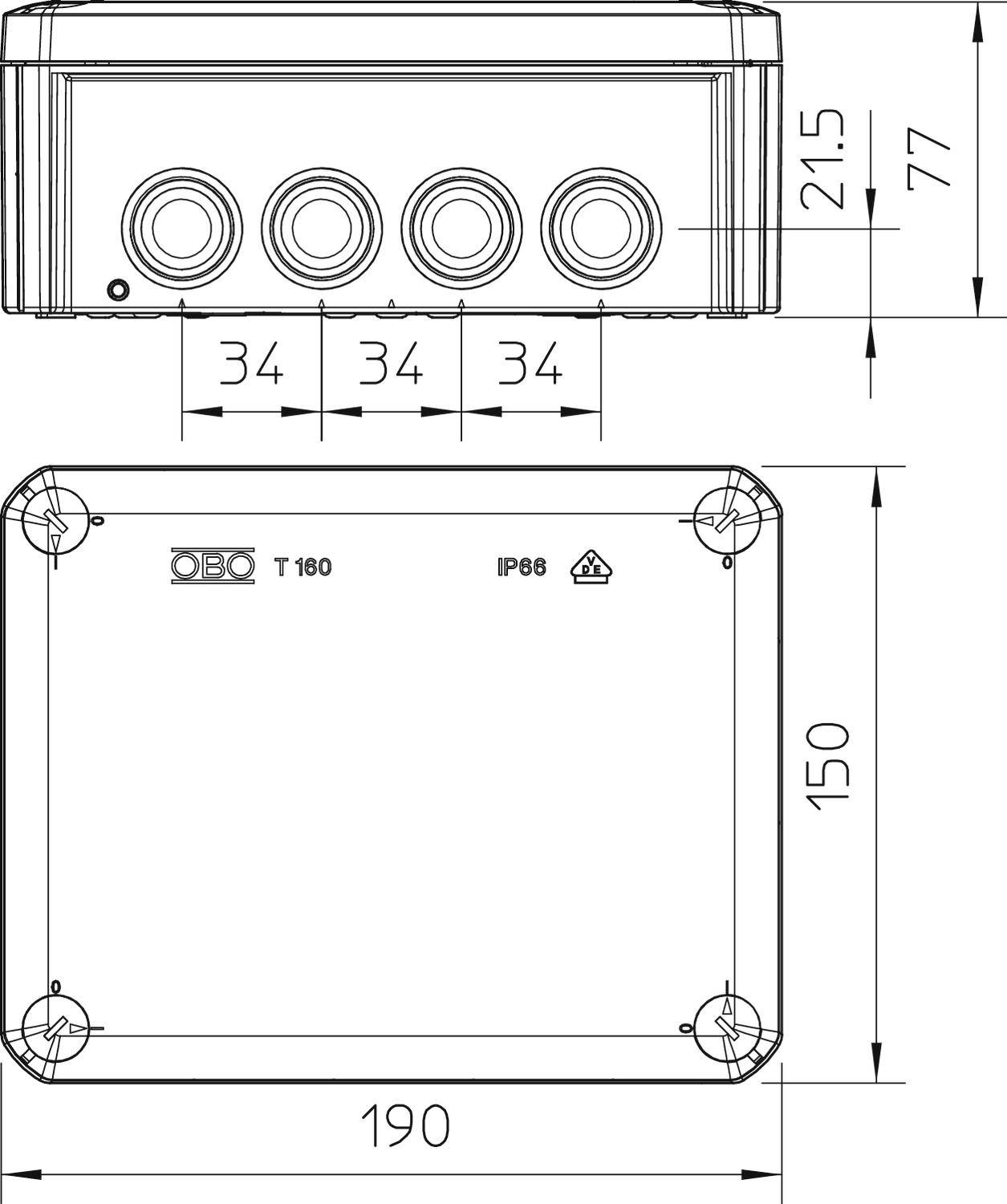

(L x W x H) 190 x 150 x 77 mm
- Content
1 pc(s)
- Height
77 mm
- Length
190 mm
- Width
150 mm
- Features
with label
Sealable
UV-resistant
Halogen-free
w/o terminal block
- Material
Plastic
- Type
without terminals
- Product type
Junction box
Description
The cable junction box of the T-series are all UV-resistant. They are made of a thermoplastic polypropylene with plug-in gaskets made of ethylene vinyl acetate EVA. Thus, cables through the 7 x M25 + 5 x M32 seals can be installed or the seals are cut with a knife to the points intended to an introduction opening for wires or pipes. Alternatively, you can cable glands through the openings in inserted instead of the seals and from the inside with a locknut countered. The cable junction box can with sheet-metal screws 3.5 x 9.5 in holes on mounting plates can be mounted. Internal dimensions: 176 x 135 x 67 mm. Cover with labelling field and lead-sealable.
