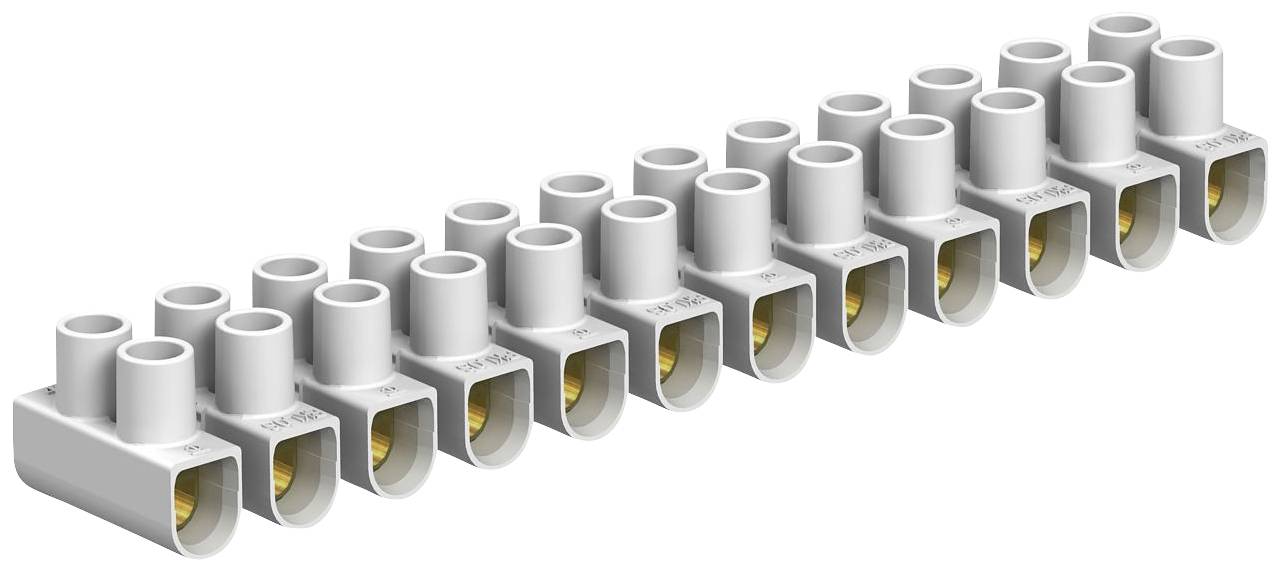

OBO Bettermann 2056070 Serial screw terminal flexible: - fixed: 4-4 mm² Number of pins: 12 1 pc(s) White
EAN:
Part number:
Item no:
Product type
Serial screw terminal
Cross section (inflexible) (min.)
4 mm²
Nominal current - rounded value
32 A
Cross section (inflexible) (max.)
4 mm²
Number of pins
12
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
14-day return policy included
Technical specifications
- Explosion tested design "Ex e": No
- Connectable conductor cross-section stranded without end sleeve: 4...4 mm²
- Design of electrical connection 1: screw terminals.
- Design of electrical connection 2: screw terminals.
- Number of clamping points each pole: 2
- Installation type: direct mounting
- Material of the insulating body: thermoplastic
- Width/spacing: 8 mm
- Height at niedrigstbauender Installation type: 13 mm
- Length: 93 mm
- End plate required: No
- Product type
Serial screw terminal
- Nominal current
32 A
- Cross section (inflexible) (min.)
4 mm²
- Nominal current - rounded value
32 A
- Cross section (inflexible) (max.)
4 mm²
- Number of pins
12
- Factory colour
White
- Content
1 pc(s)

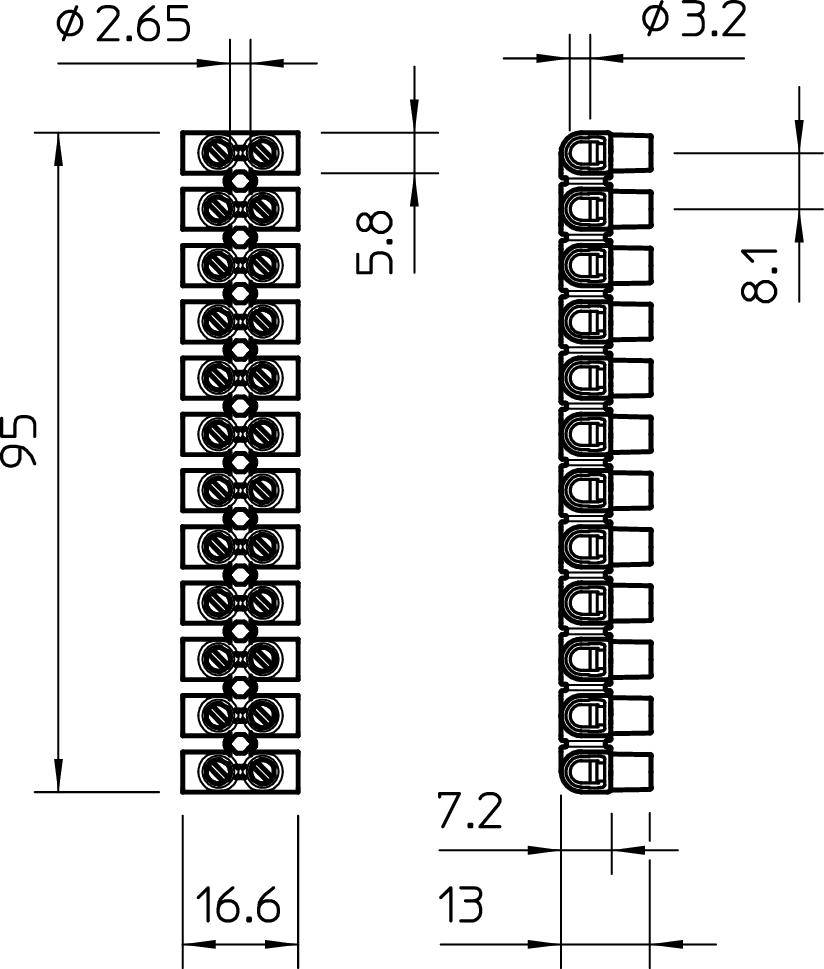

- Dim
(L x W) 93 mm x 16.6 mm
- Manufacturer part #
2056070
- Type
72 CE WS
- Connection
Screws
- Nominal voltage
450 V
- Width
16.6 mm
- Length
93 mm
- Pitch
16.6 mm
- Temperature range
-5 to +80 °C
Direct mounting
White
16.6
13 mm
95 mm
450 V
12
-5-80 °C
FALSE
Screw connection
Screw connection
FALSE
1-4 mm²
1-4 mm²
1-4 mm²
32 A
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963986 OBO Bettermann 2056070 Serial screw terminal flexible: - fixed: 4-4 mm² Number of pins: 12 1 pc(s) White
Description
Steel, galvanised steel, screw terminals, 12-pin, in single terminals detachable strips by & quot;Twist 'n' pull & quot;. Screws high-turned, undetachable.
