Name: Omnitronic MLM-81 Microphone mixer
Brand: Omnitronic
SKU: 313275
Availability: BackOrder

Audio mixing console rack with ten channels, each with individual rotary controls and input/output connections.

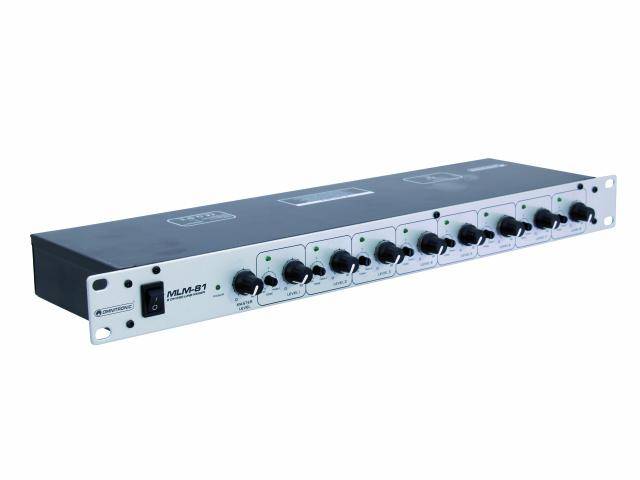

An audio mixing desk in a rack format with eight channels, predominantly black and silver, fitted with rotary controls and a power switch.

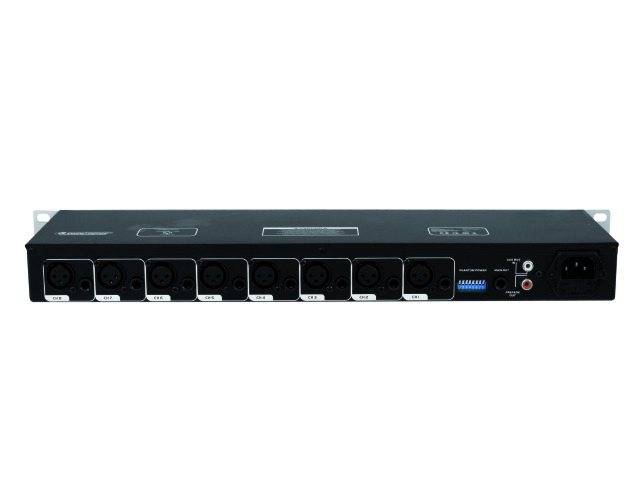

Back of an audio rack with multiple XLR outputs, RCA connections, and a mains power cable socket.

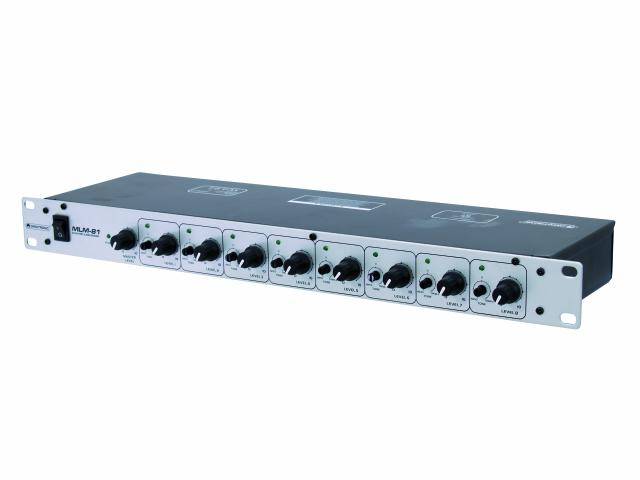

An audio mixer with eight channels, rotary controls, and connection sockets. Suitable for audio distribution in professional environments.

1/4

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

50 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 144.99 / piece)

€ 144.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Omnitronic MLM-81 Microphone Line-mixer

Microphone line mixer, 8 channels

Technical specifications

Power supply: 230 V AC, 50 Hz
Total connection value: 10 W
Input impedance: 600 Ohms (MIC), 18 kOhm (line), 10 kOhm (Aux Bus)
Max. Input Level: -23 dBV (MIC), +22 dBV (Line)
Phantom power: 12V
Max. Output level: +17 dBV
Ausgansimpedanz: 51 Ohm
Max. Gain 69 dB (MIC), 26 dB (Line)
Noise: 0.003 %
Noise distance: 106 dB
Dimensions (wxdxh): 482 x 152 x 44 mm
Weight: 3 kg.

Product type: Microphone mixer

Dim: (W x H x D) 530 x 90 x 265 mm

Weight: 2.8 kg

Width: 530 mm

Height: 90 mm

No. of inputs: 16 x

Channels: 8

Rack unit: 1 U

Depth: 265 mm

Interfaces: RCA out
XLR in
Mic 6.35 mm in

No. of microphone XLR inputs: 8 x

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 313275 Omnitronic MLM-81 Microphone mixer

Description

Microphone line mixer, 8 channels · To mix up to 8 mono input signals to 1 mono output · 8 mic/line channels with separate volume and tone controls as well as signal LED · Each channel with balanced XLR microphone and unbalanced tri-chem 6.3-mm jack input · Each microphone input with switchable 12 V phantom power via DIP switch · Master Level Control; master output via balanced 6.3 mm jack socket · Master-independent loop-through output for connecting an additional MLM-81 · Each input can be configured separately for line output jack via internal jumpers · Rack installation, 1 HE

This text is machine translated.
