ORBIS Zeitschalttechnik CO2-Melder CO2 detector 0 - 2000 ppm Calibrated to Manufacturer's standards (no certificate)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 224.99 / piece)
€ 224.99
incl. VAT
Only 5 Piece(s) available
Highlights & Details

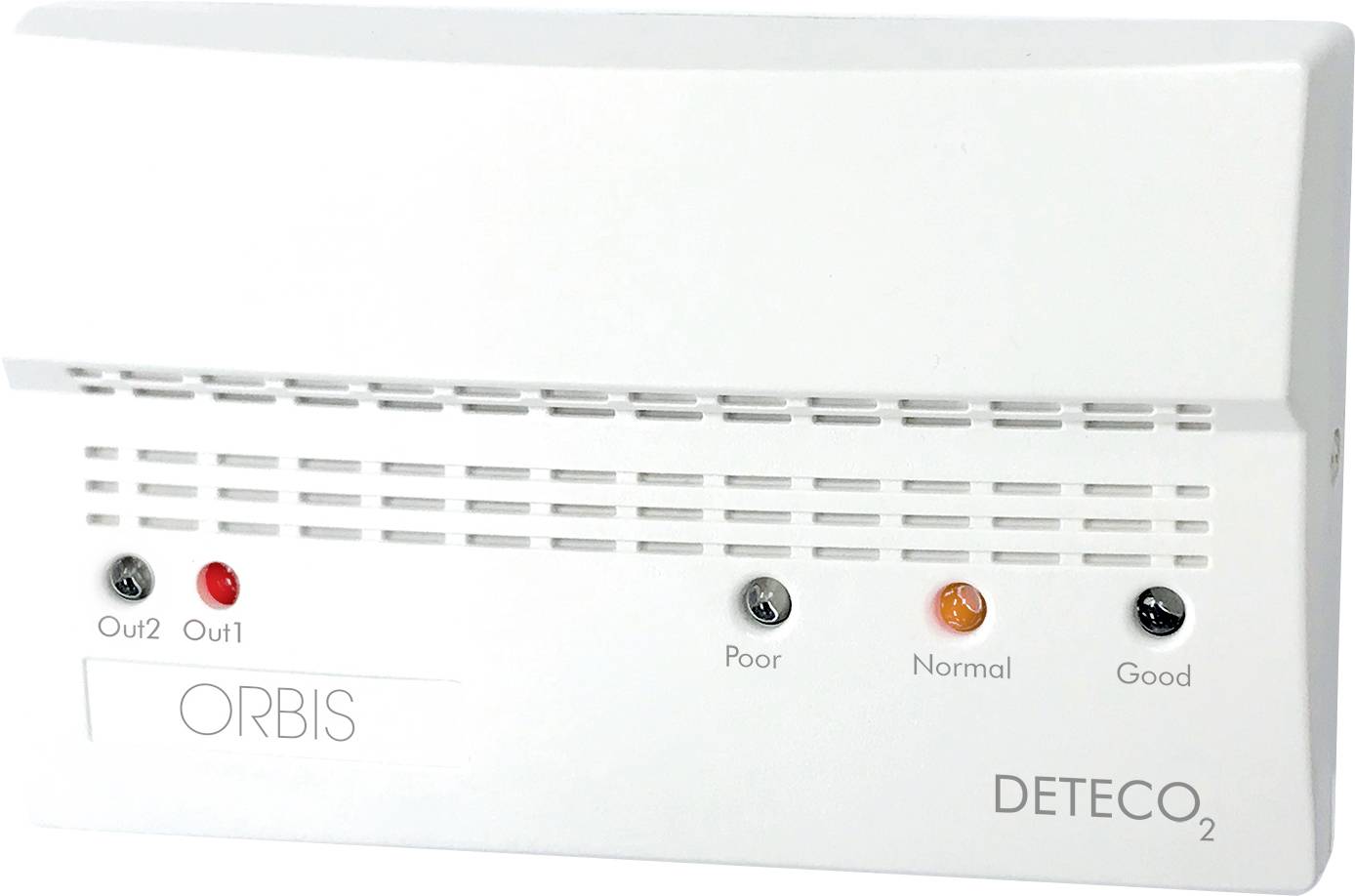

DETECO2 wall CO2I sensor
- Wall-mounted CO2 air quality detector with 3-color LED display (green, yellow, red) and two integrated relay outputs for automatic control of ventilation and air-conditioning systems
Technical specifications
- Optical 3-stage display of air quality (traffic light system)
- 2 switchable relays for automatic control of fans or window openers
- Operating temperature: 0 °C to +50 °C
- Recommended installation height: 1.5 m to 2.0 m above ground
- Reading range
0 - 2000 ppm
- Product type
CO2 detector
- Unit of measurement
CO2
- Reading range
0 - 2000 ppm
- Dim
(L x W x H) 37 x 142 x 85 mm
- Weight
200 g
- Reading range (max.)
2000 ppm
- Reading range (min.)
0 ppm
- Reading category
CAT III
- Width
142 mm
- Height
85 mm
- Length
37 mm
IP40
- Power supply (details)
230 V AC
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 3828122 ORBIS Zeitschalttechnik CO2-Melder CO2 detector 0 - 2000 ppm Calibrated to Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3828122 ORBIS Zeitschalttechnik CO2-Melder CO2 detector 0 - 2000 ppm Calibrated to Manufacturer's standards (no certificate)
Description
Designed to measure environmental CO2 concentration, e.g. in offices, classrooms, business premises, waiting rooms, restaurants, Hotels etc. The device warns and acts when values are too high and can control ventilation systems to eliminate the danger to humans. It also measures air temperature and humidity to achieve maximum comfort in the room.
This text is machine translated.
This text is machine translated.
Features
- 3 Indication LEDs (green, yellow, red)
- 2 relay outputs (switching output 8(2) A / 250 V AC)
- Integrated DIP switch for selection of direct or reverse work logic
Scope of delivery
- 1x CO2 meter Orbis DETECO2 (OB960001)
- Installation and operating instructions
