Osram Automotive Working light 12 V, 24 V LEDriving® ROUND VX70-SP LEDWL102-SP Long range high beam (L x W x H) 93 x 30

Two round LED auxiliary headlamps by OSRAM with a hexagonal pattern on the surface, mounted on metal fastenings.

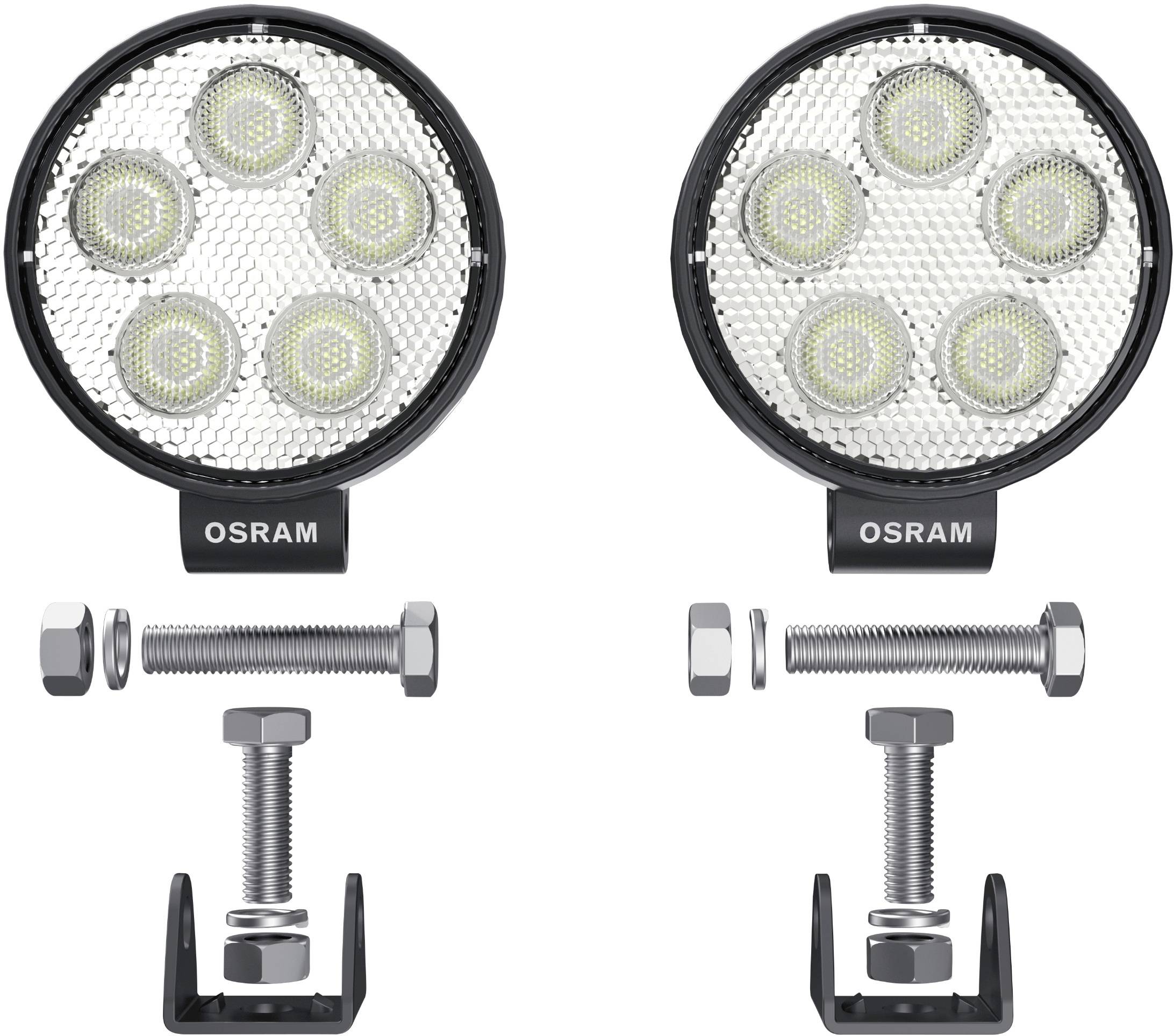

Two round LED headlamps by OSRAM with mounting hardware: screws, nuts and brackets. Suitable for vehicles or machinery.

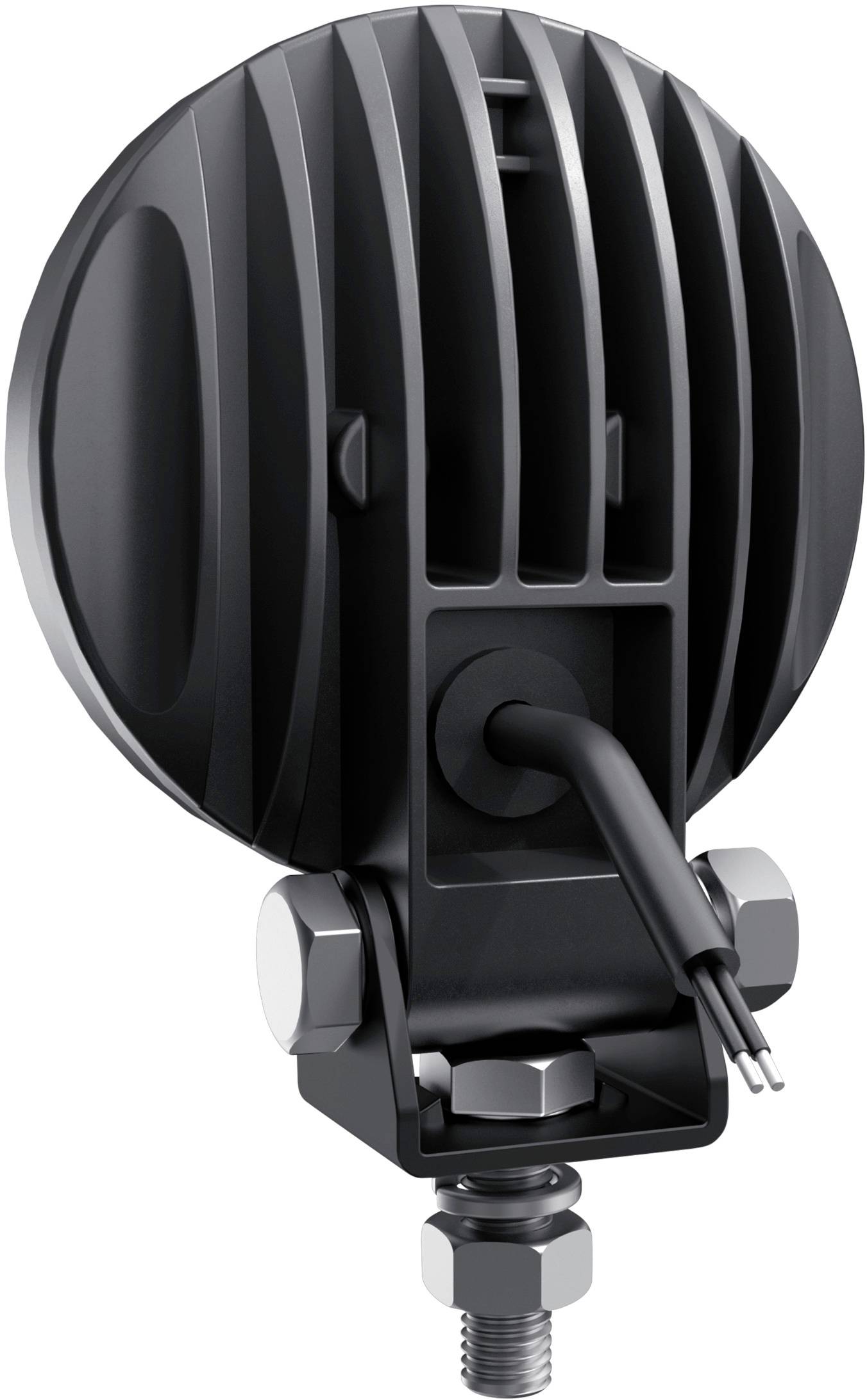

Round LED light in black with cooling fins and mountable bracket. A cable hangs at the rear for electrical connection.
A round LED headlight shines brightly, mounted on a metal bracket with the inscription 'OSRAM'.

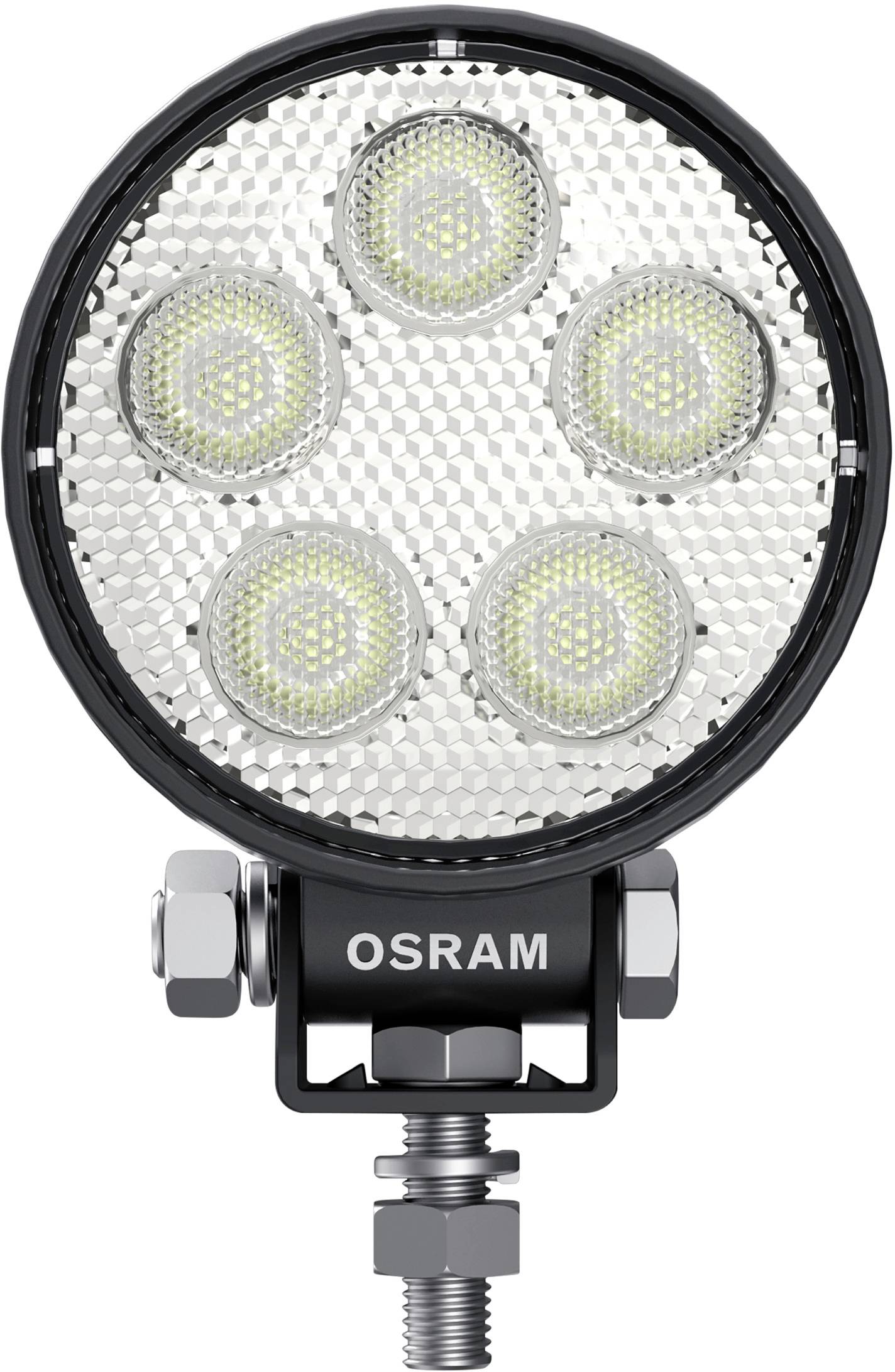

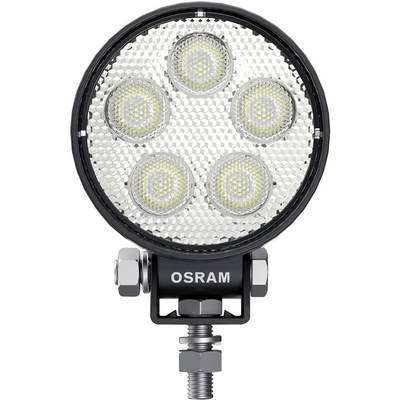

Round LED work light by OSRAM with five lights and silver reflective background, suitable for vehicle applications.

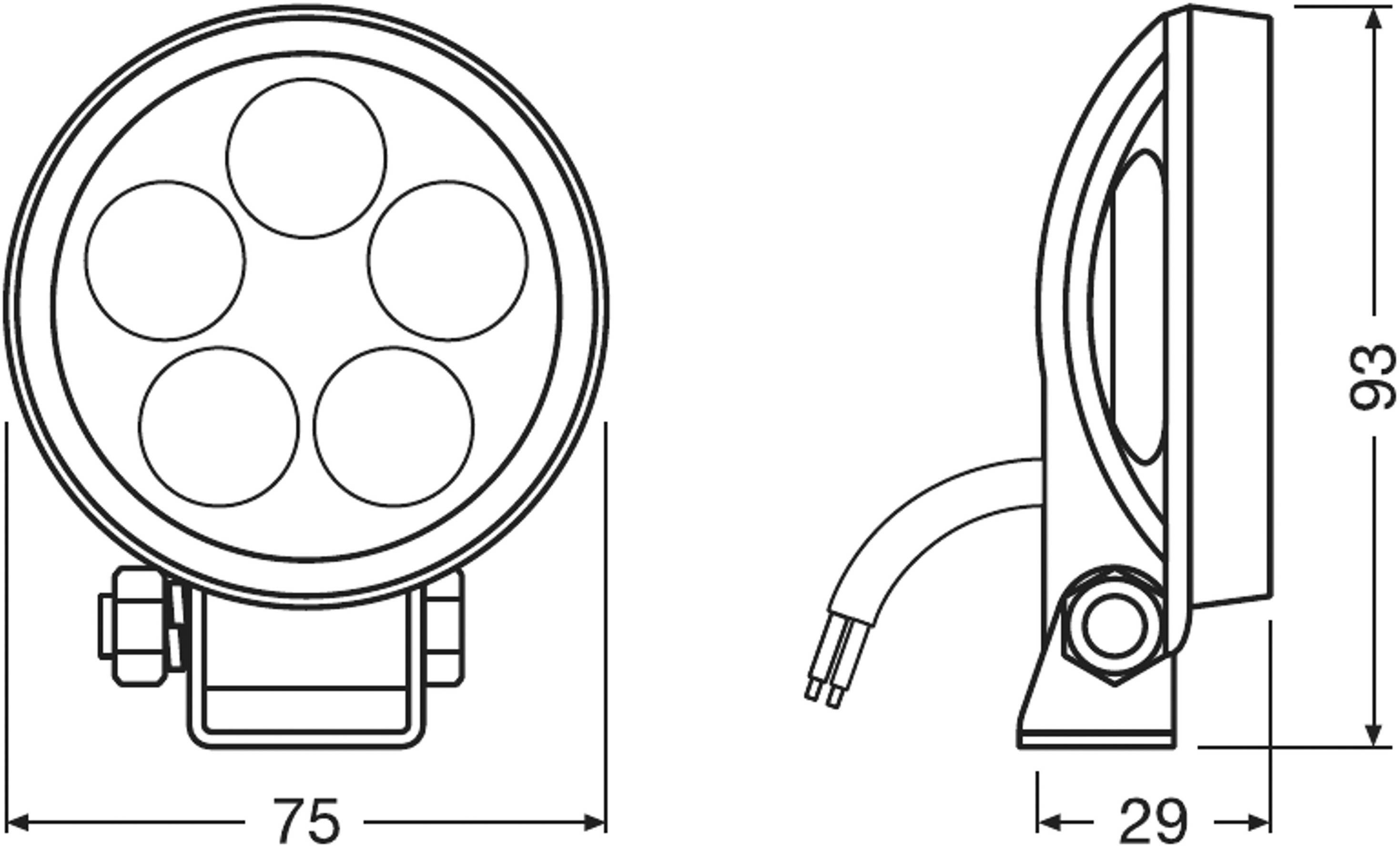

Technical drawing of a round headlight with dimensions 75 mm diameter, 93 mm height and 29 mm depth. Front and side view.

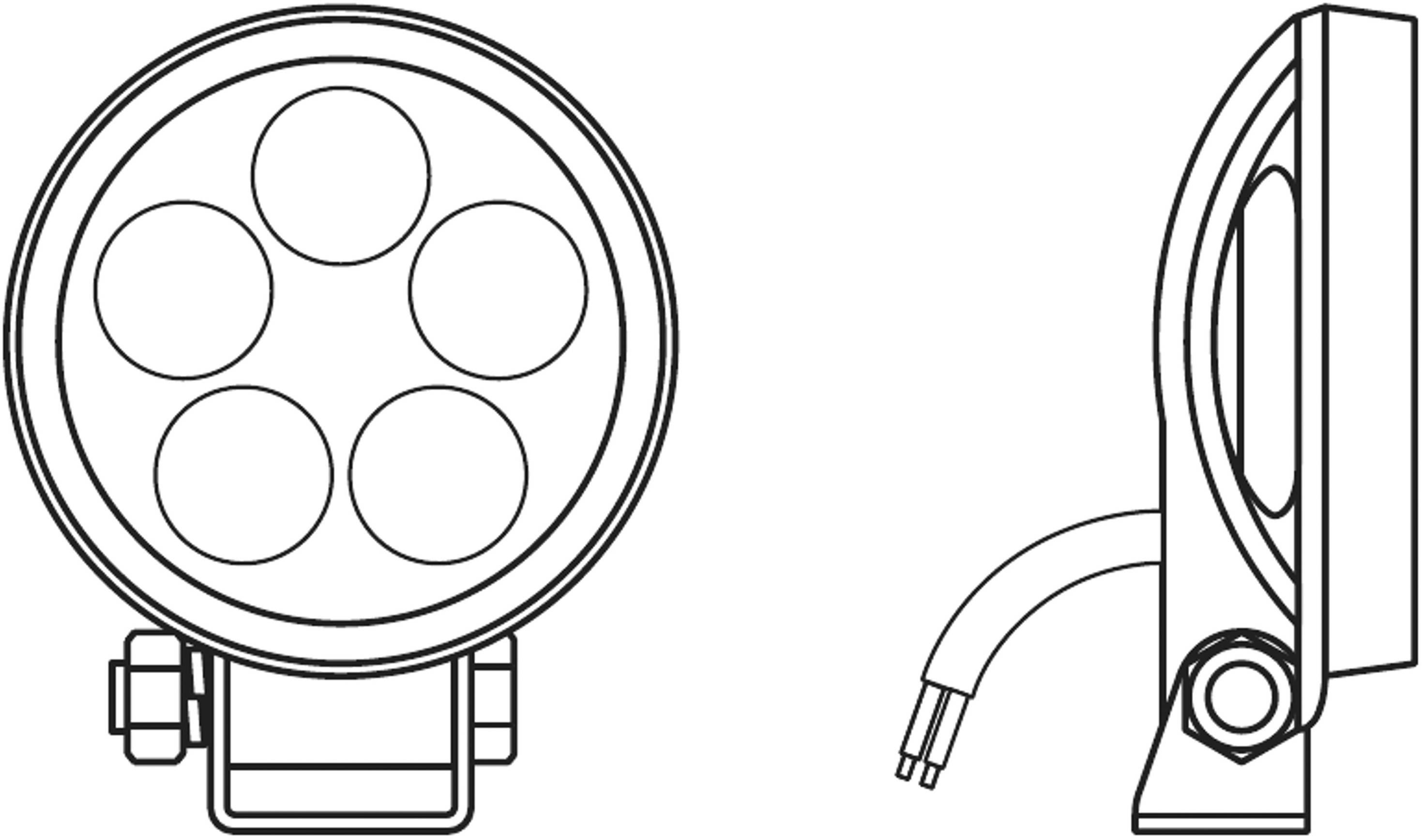

Drawing of a round LED headlight in front and side view with five light points and a cable connection.

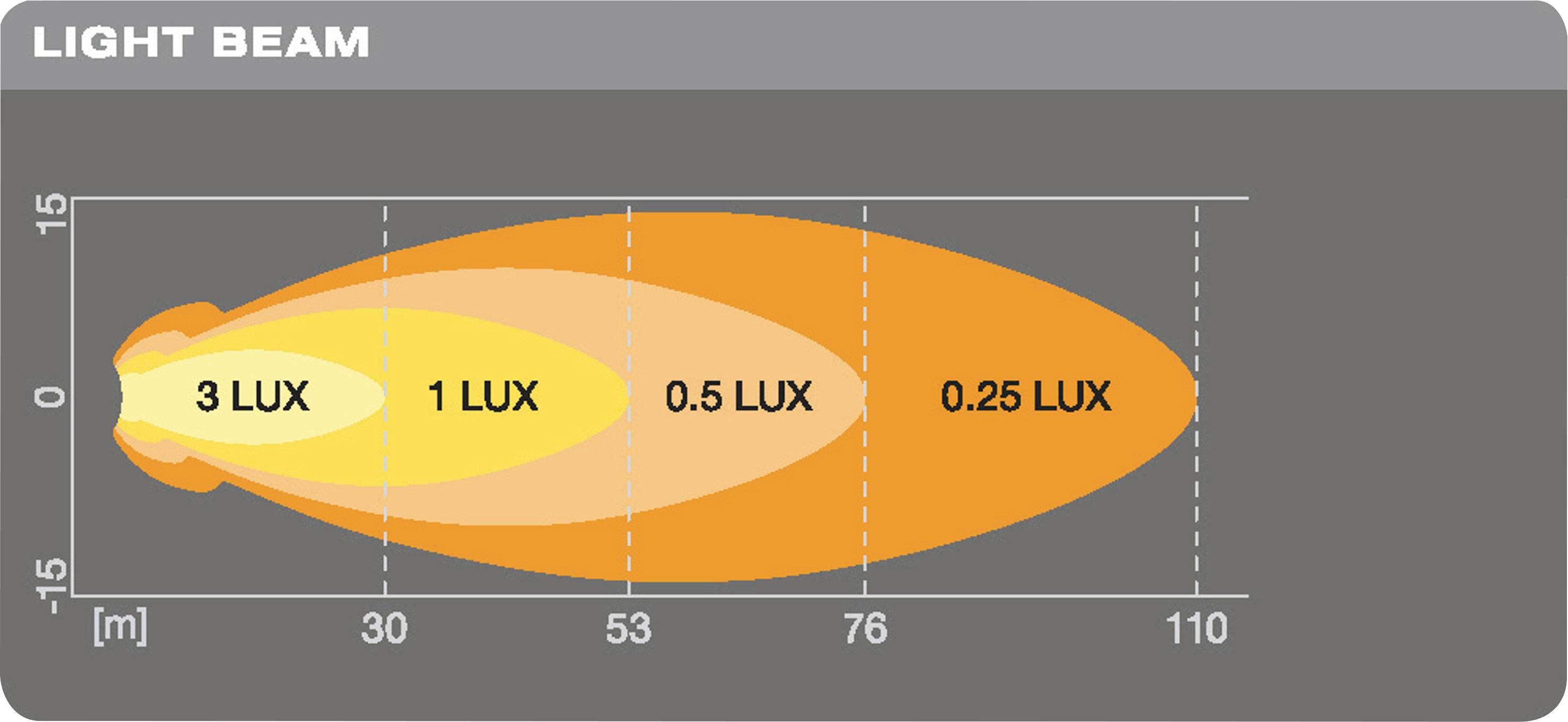

Diagram of a light beam distribution. Horizontal axis shows distance in metres. Colour ranges indicate 3, 1, 0.5 and 0.25 Lux.
1/8
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
17 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 65.99 / piece)
€ 92.99
-29 %
€ 65.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Osram Automotive Working light 12 V, 24 V LEDriving® ROUND VX70-SP LEDWL102-SP Long range high beam (L x W x H) 93 x 30 x 75 mm 550 lm 6000 K

  • Pack of 2

Technical specifications

Dim

(L x W x H) 93 x 30 x 75 mm

Product type

Working light

LEDs

5 pc(s)

Design type

Round

Fastening method

Screw mount

Bulb type

LED (monochrome)

Operating voltage

12 V

24 V

Weight

1000 g

8 W

6000 K

Total luminous flux

550 lm

Width

30 mm

Height

75 mm

Depth

200 mm

Lenses for

Long range high beam

ECE type approval labels

R10

Mounting site

front

Length

93 mm

Recommended use

ATVs

Construction plant

Agriculture

HGVs

Quads

Forklifts

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2302109 Osram Automotive Working light 12 V, 24 V LEDriving® ROUND VX70-SP LEDWL102-SP Long range high beam (L x W x H) 93 x 30

Warranty Terms

Warranty Terms 2302109 Osram Automotive Working light 12 V, 24 V LEDriving® ROUND VX70-SP LEDWL102-SP Long range high beam (L x W x H) 93 x 30

Description

The Off-Road LED working spotlight Cube is a high-performance LED spot lamp with 6000 Kelvin.

This text is machine translated.

Features

  • Compact high-performance LED spot lights
  • Compact and robust
  • Breakproof polycarbonate lens for high demands
  • Over- and under-voltage protection
  • Integrated driver and heat management system for an increased life span
  • Input voltage: 12/24V
  • IP class: IP67
  • Polarity protection
  • Cable length: 35cm
  • ECE R10
  • Color temperature: 6000 K
  • 5 OSRAM LED DURIS S5
  • Light range @1lx: 53 m
  • Hot lumen: 550 lm
  • Nominal input power 8 W
  • Weight 200 g.
  • This text is machine translated.
