Buy Osram Automotive Working light 12 V, 24 V LEDriving® Cube PX4500 Flood LEDPWL 109-FL Long range high beam (W x H x D) 68

LED work light by Osram with robust, square design, ideal for outdoor applications.

LED Work Light by OSRAM with powerful illumination, suitable for construction and outdoor use. Packaging displays application examples and product specifications.

'Packaging of an OSRAM LED work light with 4500 lumens. Suitable for construction machinery. Graphic of tractors and excavators.'

'OSRAM LEDriving CUBE PX4500 FLOOD' Work Light, 4500 Lumens, Suitable for Heavy Machinery Applications, 5-Year Warranty.

Exploded diagram of a technical device with various components, including screws, casing, and internal parts arranged in sequence.

Black, rectangular electronic device with ribbed structure and multiple connection points, likely for technical application.

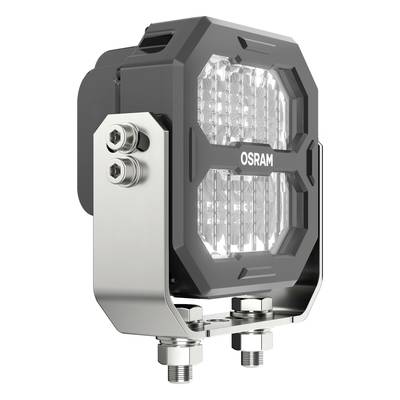

A rectangular LED work light with a robust housing and 'OSRAM' inscription. Mounted on a metal mounting system.

A square LED work light from OSRAM, illuminating and radiating bright light. The housing is dark grey.

A rectangular LED headlight from Osram with a robust housing, multiple small lights, and a mounting bracket.

Osram Automotive Working light 12 V, 24 V LEDriving® Cube PX4500 Flood LEDPWL 109-FL Long range high beam (W x H x D) 68-10

Rear view of a robust black, rectangular device with screw fastenings, suitable for industrial applications.

A black, metallic device with a ribbed structure and mounting elements. It appears to be designed in an industrial and robust manner.

Square LED work light by OSRAM with clear plastic housing and mounting screws visible underneath.

'OSRAM LED light for vehicles, showing a rectangular front view with illuminating LEDs inside, emphasising brightness and design.'

A rectangular, black LED work light from OSRAM with multiple brightly illuminating LED lamps.

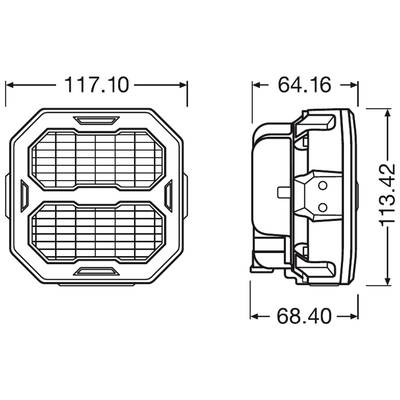

Technical drawing of a square component with the dimensions: width 117.10 mm, height 113.42 mm, depth 64.16 mm and 68.40 mm.

1/17

Fast track dispatch on Fri, 11 Sep

12 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 105.03 / piece)

€ 105.03

plus VAT.

Report legal concerns

Highlights & Details

Osram Automotive Working light 12 V, 24 V LEDriving® Cube PX4500 Flood LEDPWL 109-FL Long range high beam (W x H x D) 68.4 x 113.42 x 117.1 mm 4500 lm 6000 K

Floodlight-like characteristics: For a wide and wide distribution of light.Matrix portfolio: Vehicle-specific lighting design can be individually combined. Mix & match Vary and combineIP & IK Protection Classes: Tested and validated in a DIN-certified environmental simulation laboratory with regard to extreme external influences such as water, dust, impact, heat, Cold, permanent vibrations and much moreEfficient reflector lens design with powerful OSRAM LEDs. Three mounting options available: Standard/flexible, heavy-duty mounting and direct mountingAdditional working headlights without ECE approval for use as working headlights are approved according to StVZO §52 (7) for use on every vehicle. However, they must not be switched on while driving; furthermore, individual special regulations and laws of the countries outside of Germany must be observed.

Technical specifications

Dim: (W x H x D) 68.4 x 113.42 x 117.1 mm

Product type: Working light

Fastening method: Screw mount

Bulb type: LED (monochrome)

Operating voltage: 12 V
24 V

Weight: 698 g

: 45 W

: 6000 K

Total luminous flux: 4500 lm

Width: 68.4 mm

Height: 113.42 mm

Depth: 117.1 mm

Lenses for: Long range high beam

ECE type approval labels: R10

Mounting site: rear
lateral
front

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2798483 Osram Automotive Working light 12 V, 24 V LEDriving® Cube PX4500 Flood LEDPWL 109-FL Long range high beam (W x H x D) 68

Warranty Terms

Warranty Terms 2798483 Osram Automotive Working light 12 V, 24 V LEDriving® Cube PX4500 Flood LEDPWL 109-FL Long range high beam (W x H x D) 68

Description

Professional light for professional workWith the portfolio of the OSRAM LED-driving Professional Series PX work lights, it is now possible to find exactly the right lighting for a variety of special professional tasks and applications. The total of 16 working headlights are excellent with maximum optical efficiency, effectiveness and homogeneous light distribution. The modular series focuses on the most important aspects of working light usage: Lighting, performance, quality, shape, durability, Functionality and thus can also result in increased safety at work for you and others. The optimal factors can be selected and prioritized for each corresponding application; thus a complete vehicle-specific lighting set-up can be put together with these work lights, which is perfectly applicable to the respective individual requirements and requirements. The headlights are suitable for 12V and 24V vehicles and there are a total of four radiation characteristics - Flood, Spot, Wide and Ultra Wide - as well as four power levels - 1500lm, 2500lm, 3500lm and 4500lm - available for each lamp. In addition, they can be mounted in three different ways: Direct mounting, flexible standard mounting and heavy-duty mounting – here too OSRAM has developed specially designed brackets and also a cable with DT-connector. The Professional Series has been validated in accordance with the highest IP and IK protection classes IP6K8 and IP6K9K and CISPR25 Class 5 and can therefore meet the highest OE standards and requirements of the automotive industry. OSRAM provides a 5 year warranty on these products.Additional working headlights without ECE approval for use as working headlights are approved according to StVZO §52 (7) for use on every vehicle. However, they must not be switched on while driving; furthermore, individual special regulations and laws of the countries outside of Germany must be observed.Exact conditions under www.osram.de/am-garantie

This text is machine translated.
