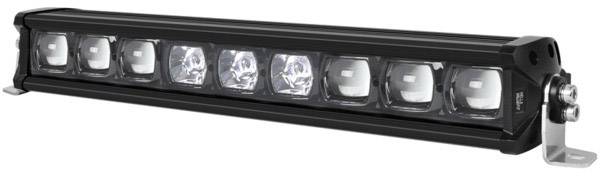

Hella Valuefit Working light 12 V, 24 V Lightbar LBX-540 LED 1GJ 360 002-002 Long range illumination (W x H x D) 574 x 9
EAN:
Part number:
Item no:
Number
Total (€ 197.47 / piece)
€ 197.47
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Working headlights light bar LBX
- Low mounting position
- Illuminating a large area.
- Incl. 2 m connection cable.
Technical specifications
- Connection via Dt-Stecker
- Wire height 585 mm

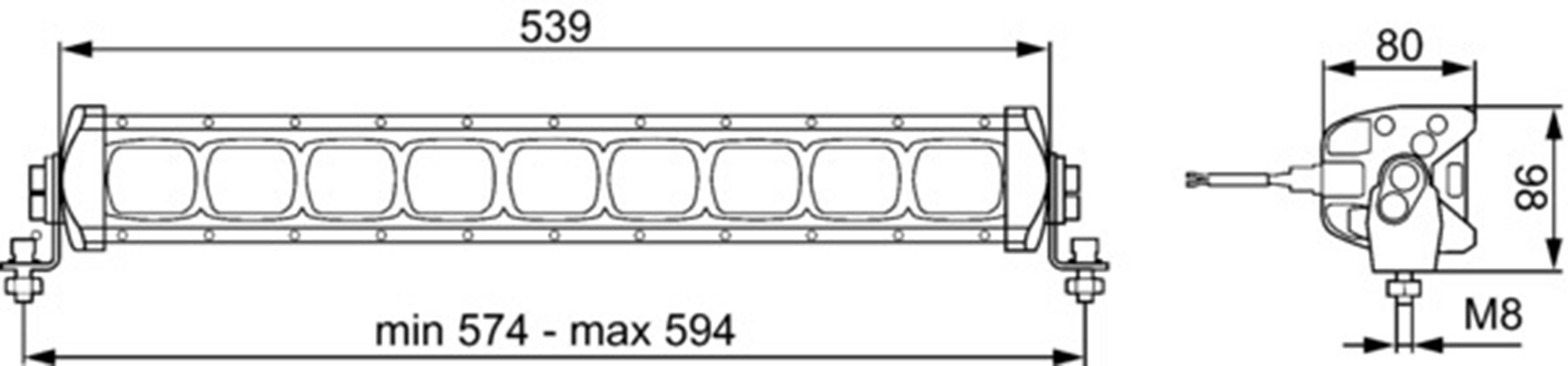

- Dim
(W x H x D) 574 x 98 x 80 mm
- Product type
Working light
- LEDs
9
- Design type
Rectangular
- Fastening method
Assembly
- Bulb type
LED (monochrome)
- Operating voltage
12 V
24 V
- Factory colour
Black
- Weight
3090
66 W
6500 K
- Total luminous flux
3500 lm
- Width
574 mm
- Height
98 mm
- Depth
80 mm
- Lenses for

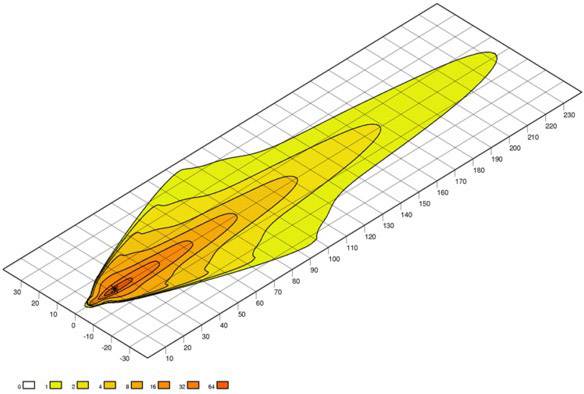

Long range illumination
- ECE type approval labels
CE-geprüft
- Features
Deutsch DT connector
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1716800 Hella Valuefit Working light 12 V, 24 V Lightbar LBX-540 LED 1GJ 360 002-002 Long range illumination (W x H x D) 574 x 9
Description
With the work lights HELLA VALUEFIT offers HELLA you products tailored to your needs. The HELLA OEM quality benefits - the unique combination of existing OE-Know-how and high sales expertise, and ensures good quality at fair prices. All products meet the relevant technical specifications which are HELLA VALUEFIT safely and reliably and enables a low-cost conversion to LED technology.
At low mounting position particularly illuminating a large area.
This text is machine translated.
At low mounting position particularly illuminating a large area.
This text is machine translated.
Features
- Reverse polarity protection
- Protection class IP 67
- Recommended mounting height 0.5 to 1.5 m.
- Aluminum casing
