Number
Highlights & Details

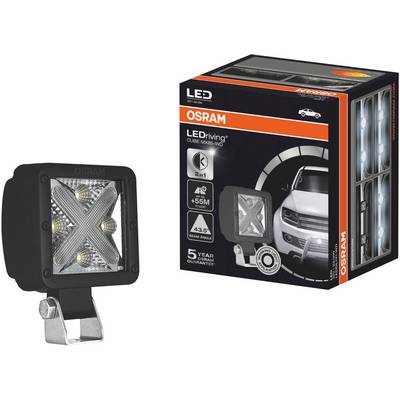

Osram Automotive Working light 12 V LEDriving CUBE MX85-WD LEDDL101-WD Wide angle close range illumination (W x H x D) 57 x 85 x 121.5 mm 1250 lm 6000 K
- High performance LED
- 2 LED light functions
- Intelligent protection systems
- Upgraded off-road style
Technical specifications
- Range up to 55 m.
- Conforms to ECE R10
- Dim
(W x H x D) 57 x 85 x 121.5 mm
- Product type
Working light
- LEDs
16
- Fastening method
Screw mount
- Bulb type
LED (monochrome)
- Operating voltage
12 V
- Factory colour
Black
- Weight
500 g
22 W
6000 K
- Total luminous flux
1250 lm
- Width
57 mm
- Height
85 mm
- Depth
121.5 mm
- Lenses for
Wide angle close range illumination
Documents & Downloads
Datasheet
Datasheet 2179597 Osram Automotive Working light 12 V LEDriving CUBE MX85-WD LEDDL101-WD Wide angle close range illumination (W x H x D) 5
User & Safety Instructions
User & Safety Instructions 2179597 Osram Automotive Working light 12 V LEDriving CUBE MX85-WD LEDDL101-WD Wide angle close range illumination (W x H x D) 5
Information
Information 2179597 Osram Automotive Working light 12 V LEDriving CUBE MX85-WD LEDDL101-WD Wide angle close range illumination (W x H x D) 5
Warranty Terms
Warranty Terms 2179597 Osram Automotive Working light 12 V LEDriving CUBE MX85-WD LEDDL101-WD Wide angle close range illumination (W x H x D) 5
Description
Concentrated LED power meets long-lasting quality
If you drive a lot on the road, you will know how advantageous a strong and reliable LED high-beam headlight is.
The near field illumination for off-road use can be seen here. With an illuminance of one lux, the LED work light reaches a light distance of up to 55 meters. The beam angle is 43.5 degrees.
The work light for the car basically offers the driver two possible LED light functions. On the one hand, the classical working light can be used and on the other hand the LED working spotlight offers the function of a still light in X-shape.
But it is not only in its function as an LED work lamp that the headlight is convincing. The off-road style of the vehicle is highlighted again with the LED working headlights and thus improved.
Compact, robust and durable
Properties such as long life and quality are particularly required in off-road applications. The LEDriving® Cube MX85-WD working spotlight has a robust polycarbonate lens to meet even the most demanding requirements on the terrain.
An over- and under-voltage protection up to 18 volts automatically interrupts the circuit if the electric current exceeds the specified current over a specified period of time.
In terms of durability, the powerful search headlights are also equipped with an integrated driver and heat management system. This prevents overheating during continuous use.
Highest compatibility
The LEDriving® Cube MX85-WD work lights are versatile. The LED worklights are used from all-wheel-drive vehicles to off-road, utility vehicles and construction vehicles to caravans or agricultural vehicles.
This text is machine translated.
Features
- IP67
- EMC/EMI R10
- High-power LEDs provide for a much better view
- 2 LED light functions for more variability
- Intelligent protection systems ensure longevity
- Versatile application area through high compatibility
