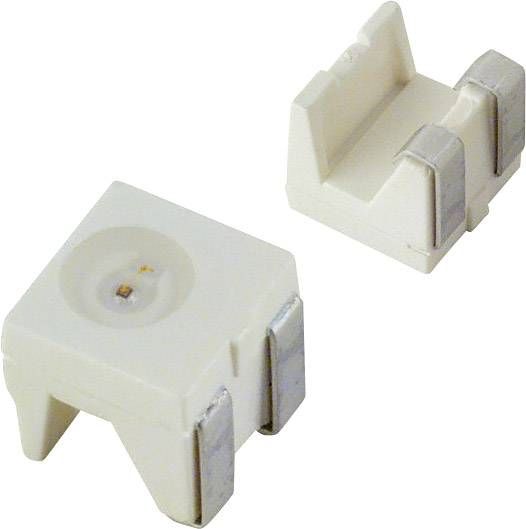

OSRAM LS A67K-J1K2-1-Z SMD LED SMD 2 Red 7.85 mcd 120 ° 2 mA 1.8 V
Product type
SMD LED
Forward voltage U(F)
1.8 V
Forward current I(F)
2 mA
Type
SMD
Type
SMD 2
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 0.49 / piece)
€ 0.49
incl. VAT
14-day return policy included
Highlights & Details
Our service for you
Technical specifications
- Series: SIDELED
- Product type
SMD LED
- Type
LS A67 K-J 1K2-1-Z
- Factory colour
Red
- Forward voltage U(F)
1.8 V
- Forward current I(F)
2 mA
- Type
SMD
- Type
SMD 2
- Light intensity I(V)
7.85 mcd
- Wavelength
630 nm
- Radiation angle
120°
- Type
Clear
- Dim
(L x W x H) 4 x 3.6 x 4.2 mm
- Length
4 mm
- Technology
AlInGaP
- Width
3.6 mm
- Min. temperature
-40 °C
- Height
4.2 mm
- Max. temperature
+100 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1007184 OSRAM LS A67K-J1K2-1-Z SMD LED SMD 2 Red 7.85 mcd 120 ° 2 mA 1.8 V
User & Safety Instructions
User & Safety Instructions 1007184 OSRAM LS A67K-J1K2-1-Z SMD LED SMD 2 Red 7.85 mcd 120 ° 2 mA 1.8 V
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
