Buy Panasonic AGQ2104H PCB relay 4.5 V DC 1 A 2 change-overs 1 pc(s)

An electronic component marked 'AGQ2004H', originating from Japan and featuring multiple metal pins on its underside.

Image similar

'Dimensional drawing of electronic components with detailed measurements in millimetres. Two components with different sizes and pins.'

Technical Drawing of a Drilling Template: 8 Holes with 0.85 mm Diameter. Spacing: 3.20 mm horizontal, 2.20 mm vertical.

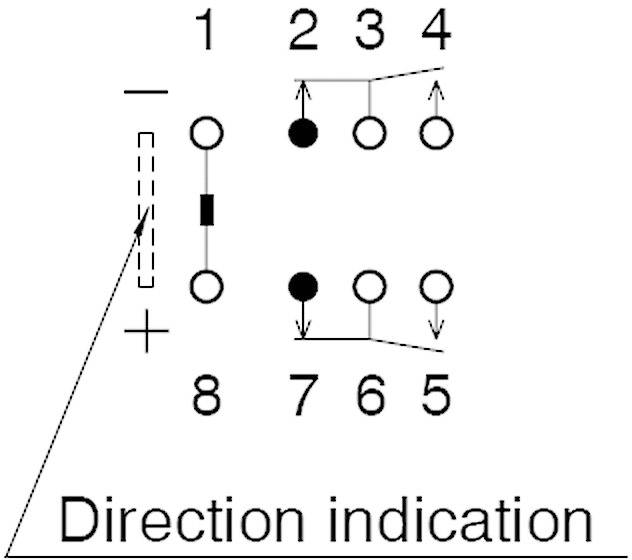

Directional guidance with a diagram showing circles, arrows, and numerals from 1 to 8, illustrating the direction of movement.

1/4

Image similar

Product type

PCB relay

Coil nominal voltage

4.5 V DC

Control mode

bi-stable, 1 coil

Contact type

2 change-overs

Switching voltage (max.)

110 V DC

125 V AC

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

19 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1.67 / piece)

€ 1.67

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: PCB relay

Type: AGQ2104H

Coil nominal voltage: 4.5 V DC

Min. pick-up voltage: 3.38 V DC

Max. pick-up voltage: 6.75 V DC

Control mode: bi-stable, 1 coil

Resistance (coil): 202.5 Ω

Contact type: 2 change-overs

Contact material: AgPd + Au

Switching voltage (max.): 110 V DC
125 V AC

Switching current (max.): 1 A

Max. switching capacity: 30 W
37.5 VA

Connection: Solder pins

Durability: 5 x 10⁷

Min. temperature: -40 °C

Max. temperature: +85 °C

Length: 10.6 mm

Width: 7.2 mm

Height: 5.2 mm

Dim: (L x W x H) 10.6 x 7.2 x 5.2 mm

Content: 1 pc(s)

Type: bistable

Nominal voltage (details): 4.5 V DC

Switching capacity: -30 W/37.5 VA

Dielectric strength: (Coil/Contct) 2.5 kV

Type: AGQ2104H

Ambient temperature: -40 - +85 °C

Documents & Downloads

Datasheet

Datasheet 504835 Panasonic AGQ2104H PCB relay 4.5 V DC 1 A 2 change-overs 1 pc(s)

User & Safety Instructions

User & Safety Instructions 504835 Panasonic AGQ2104H PCB relay 4.5 V DC 1 A 2 change-overs 1 pc(s)

Description

Extremely compact and low profile ultra-miniature signal relays, small footprint for high packing densities. Very high voltage resistance according to Bellcore standard. Applications: telecommunications, consumer electronics, instrumentation, safety and medical technology.
