Buy PB Fastener 331380 EPDM (Ø x L) 16 mm x 22.2 mm 1 pc(s)

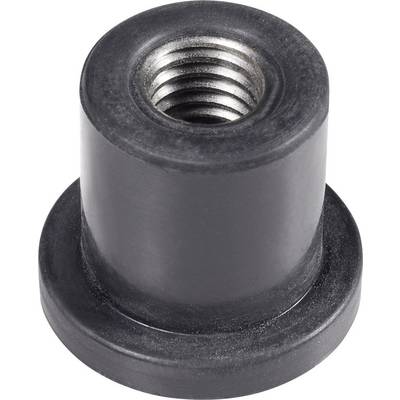

Black, cylindrical plastic component with a central, internal metal thread. Suitable for fixing or mounting.

Cross-section of a technical drawing shows two mounting methods for a screw with nut: on the left with sealing washer, on the right without sealing washer.

1/2

Material

EPDM

Min. temperature

-40 °C

Max. temperature

+90 °C

Length

22.2 mm

(Ø)

16 mm

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

424 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 2

Total (€ 1.25 / piece)

€ 2.50

plus VAT.

Report legal concerns

Highlights & Details

PB Fastener 331380 EPDM (Ø x L) 16 mm x 22.2 mm 1 pc(s)

Our service for you

Technical specifications

Mounting hole dia.: 8 mm
Material thickness 0.4 - 4.0 mm

Min. temperature: -40 °C

Max. temperature: +90 °C

Length: 22.2 mm

(Ø): 16 mm

Dim: (Ø x L) 16 mm x 22.2 mm

Thread size: M8

Board thickness (max.): 4 mm

Material: EPDM

Content: 1 pc(s)

Type: 331380

RoHS-compliant: Yes

Material (details): Neoprene

Thread size: M8

Type: 331380

Temperature range: -40 - +90 °C

Documents & Downloads

Datasheet

Datasheet 523624 PB Fastener 331380 EPDM (Ø x L) 16 mm x 22.2 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 523624 PB Fastener 331380 EPDM (Ø x L) 16 mm x 22.2 mm 1 pc(s)

Description

For easily and reliably joining, insulating and attaching - even for sensitive materials. Advantages: Vibration-damping, can be used from one side, suited to sensitive materials, even in blind holes, oil-resistant, no corrosion problems, not electrically conductive.
