Buy PCE Instruments PCE-A 430 Anemometer 2.5 up to 105 km/h Thermometer

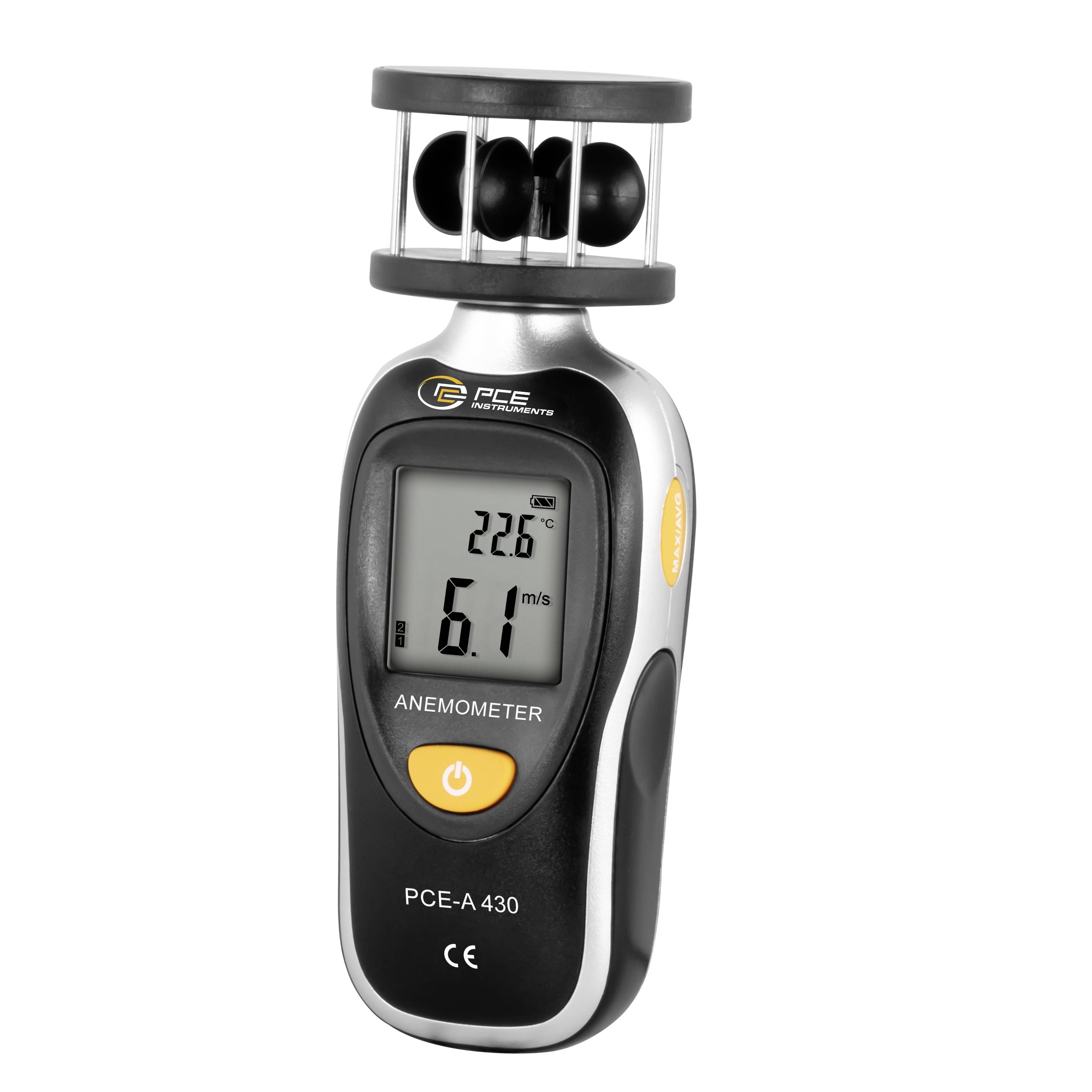

Handheld PCE-A 430 anemometer displaying 6.1 m/s and 22.6°C on its screen.<br>

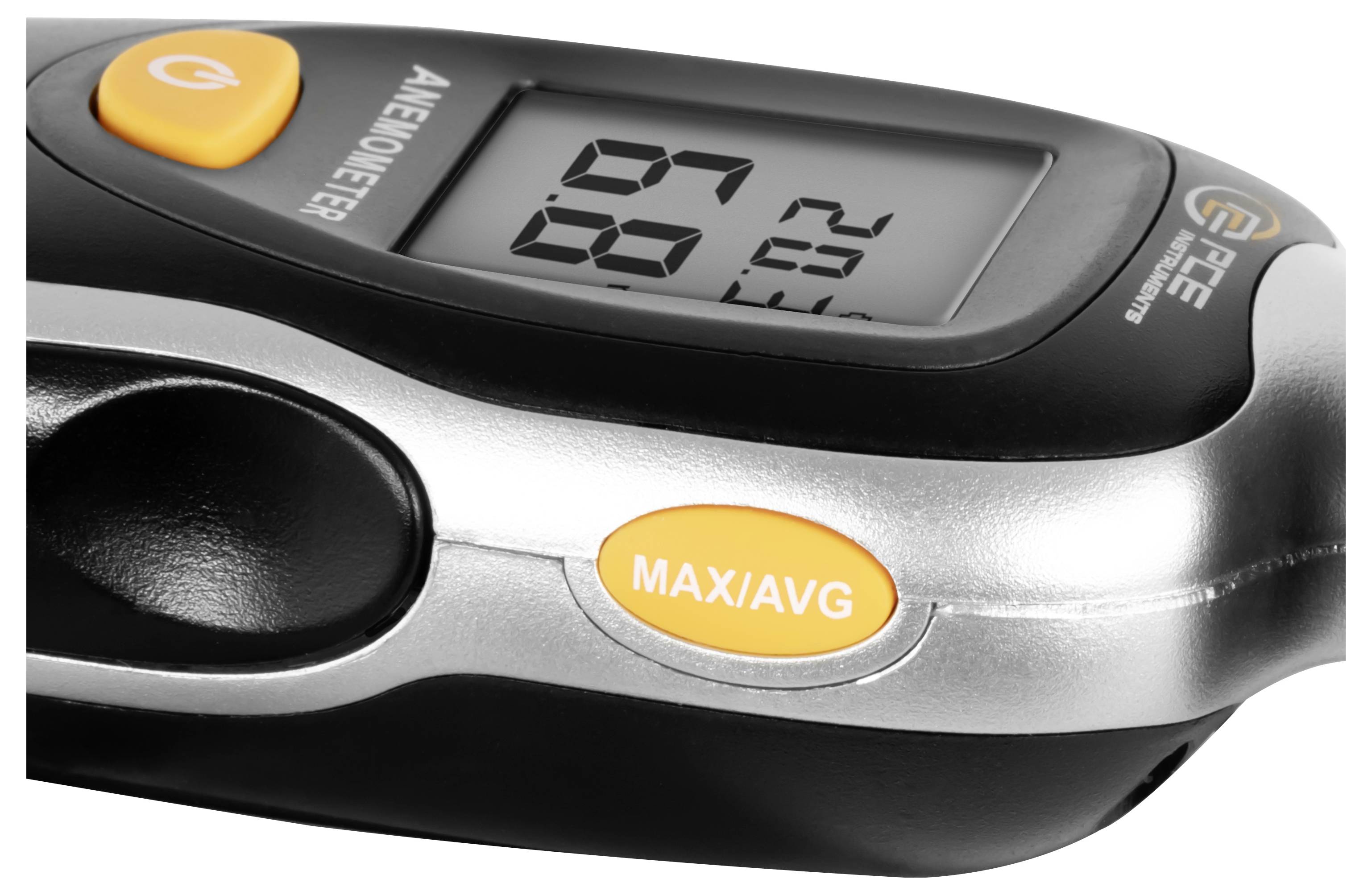

Digital handheld anemometer with LCD display and orange MAX/AVG buttons on a black-and-silver body<br>

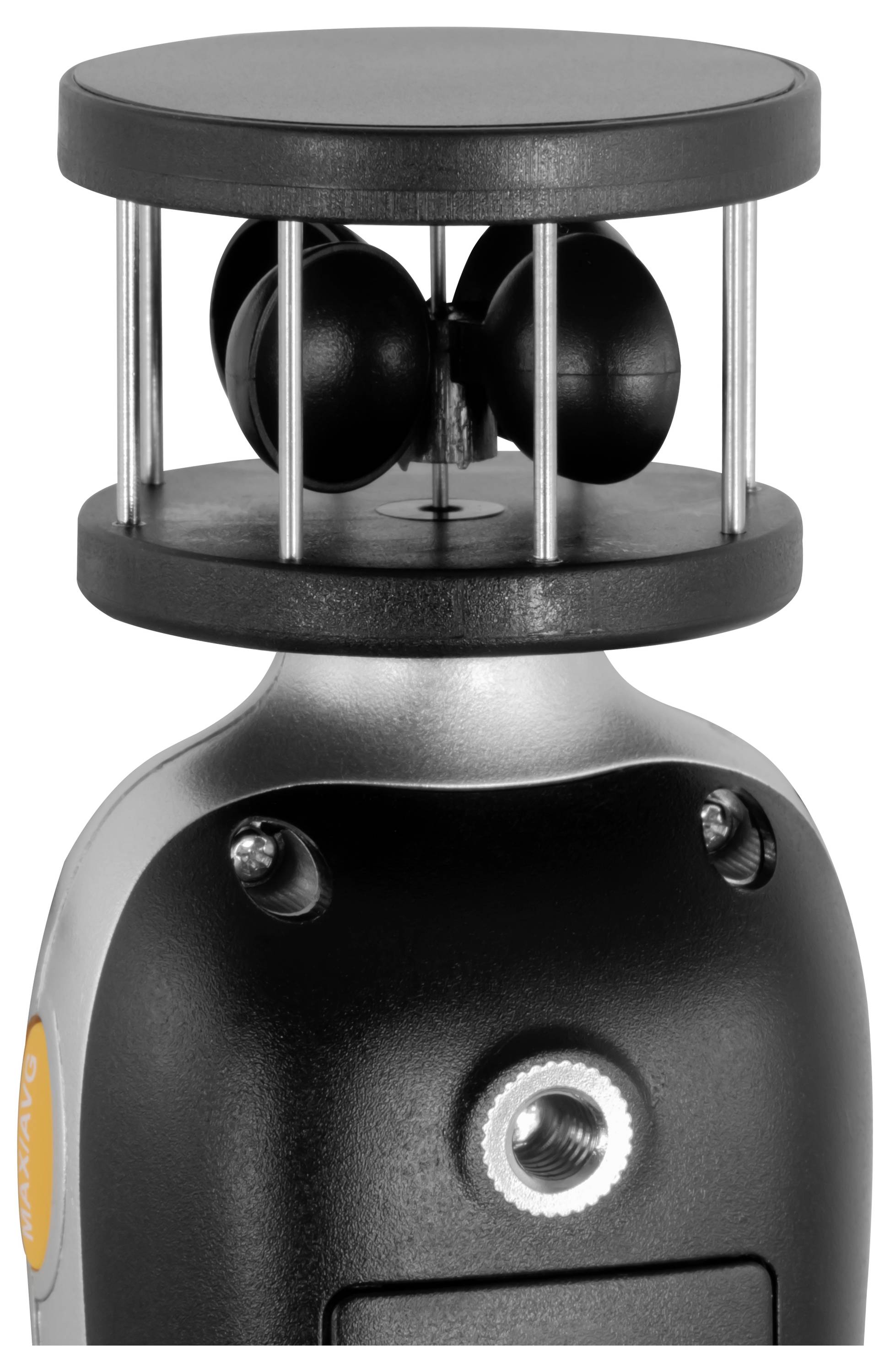

Close-up of a black handheld weather instrument with a cup anemometer on top, used to measure wind speed.

Close-up of a handheld electric massager with dual roller heads mounted on a tripod against a white background.

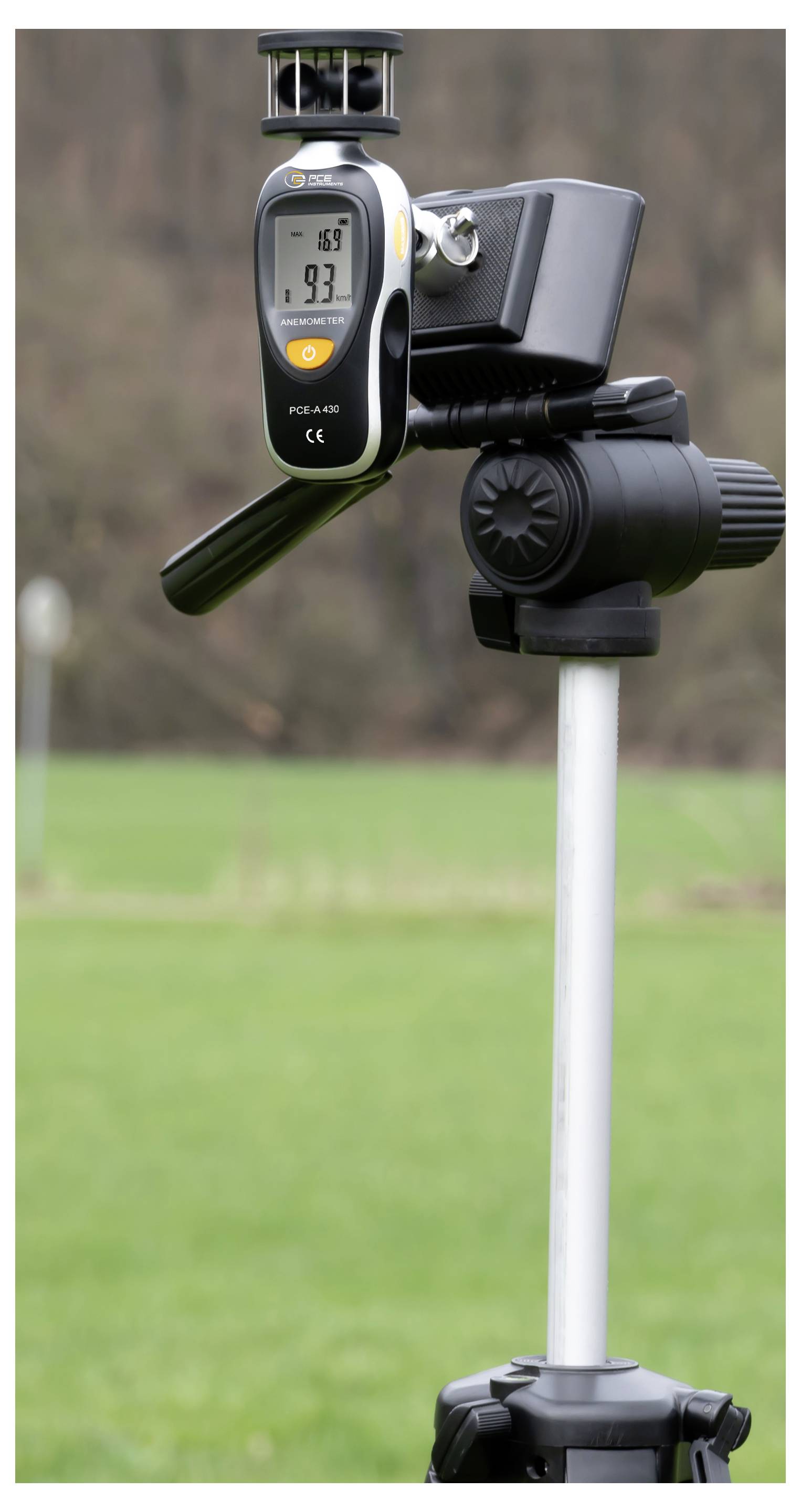

A digital anemometer mounted on a tripod measures wind speed outdoors in a field.

PCE Instruments PCE-A 430 Anemometer 2.5 up to 105 km/h Thermometer-5

PCE Instruments PCE-A 430 Anemometer 2.5 up to 105 km/h Thermometer-6

1/7

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 70.58 / piece)

€ 70.58

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-A 430

Wind speed measurement up to 105 km/h
m/s, km/h, kn, mph
Temperature measurement in C° / F°
Beaufort scale
MAX, AVG display
LC display with lighting
Auto switch-off after 15 min
Chair base - Sensor
Measuring range 0.7... 30 m/s

Technical specifications

Speed
Measuring range 0.7 ... 30 m/s
Resolution < 20: 0.1 m/s / > 20: 1 m/s.
Accuracy ±(4 % +2 digit)
Speed
Measuring range 2.5 ... 105 km/h
Release < 20: 0.1 km/h / > 20: 1 km/h.
Accuracy ±(4 % +2 digit)
Speed
Measuring range 1.5 ... 67 mph
Resolution < 20: 0.1 mph / > 20: 1 mph
Accuracy ±(4 % +2 digit)
Speed
Measuring range 1.3 ... 58.3 knots
Resolution < 20: 0.1 nodes / > 20: 1 nodes
Accuracy ±(4 % +2 digit)
Temperature
Measuring range -20 ... +50 °C
Resolution 0.1 °C
Accuracy: ±1.5 °C
Temperature
Measuring range -4 ... 60 TO +122°F
Resolution 0.1 °F
Accuracy: ±2.7 °F
General Technical Data
Measurement functions MAX, average value
Units m/s, km/h, KN, mph
Display type LCD with lighting
Sensor cross slot
Automatically switches off approx. 15 min.
Menu language English (US)
Protection class (device) IP20
Weight 36.5 g
Operating conditions -20 ... 60 °C , 10 ... 90 % r.F.
Storage conditions -20 ... 60 °C , 10 ... 75 % r.F.
Rechargeable battery 1x 9 V 9V Block , Zinc manganese dioxide
Capacity 190 mAh
Dimensions ( L x W x H ) 145 x 55 x 48 mm

Wind speed resolution: 1 km/h

Product type: Anemometer

Temperature reading range: -20 up to 50 °C

Wind speed: 2.5 … 105 km/h

Accuracy: 4 %

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 145 x 55 x 48 mm

Features: Thermometer

Accuracy: 1.5 °C

Weight: 36.5 g

Temperature reading range (max.): 50 °C

Temperature reading range (min.): -20 °C

Air speed reading range (max.): 105 km/h

Air speed reading range (min.): 2.5 km/h

Width: 55 mm

Height: 48 mm

Length: 145 mm

Power supply (details): 9 V

Documents & Downloads

Datasheet

Datasheet 3324674 PCE Instruments PCE-A 430 Anemometer 2.5 up to 105 km/h Thermometer

User & Safety Instructions

User & Safety Instructions 3324674 PCE Instruments PCE-A 430 Anemometer 2.5 up to 105 km/h Thermometer

Description

The anemometer allows wind speed to be measured up to 105 km/h and is very versatile. The anemometer is equipped with a built-in temperature sensor that measures both Celsius and Fahrenheit. The functions for maximum and average wind speed enable an effective monitoring of the measuring results.

The anemometer enables readings in various units such as m/s, km/h, KN and mph, and also has a Beaufort scale for quick assessment of wind strength. The easy to read LCD display with backlight provides optimum readability in all lighting conditions. The automatic power-off function after 15 minutes of inactivity extends the battery life to at least approx. 30 hours. The anemometer comes with a handy bag for carrying it easily on the road.

This text is machine translated.
