Name: PCE Instruments PCE-ERS 100 Refrigerant scales PCE-ERS 100 Weight range 100 kg Readability 10 g battery-powered Black
Brand: PCE Instruments
SKU: 3369084
Availability: InStock

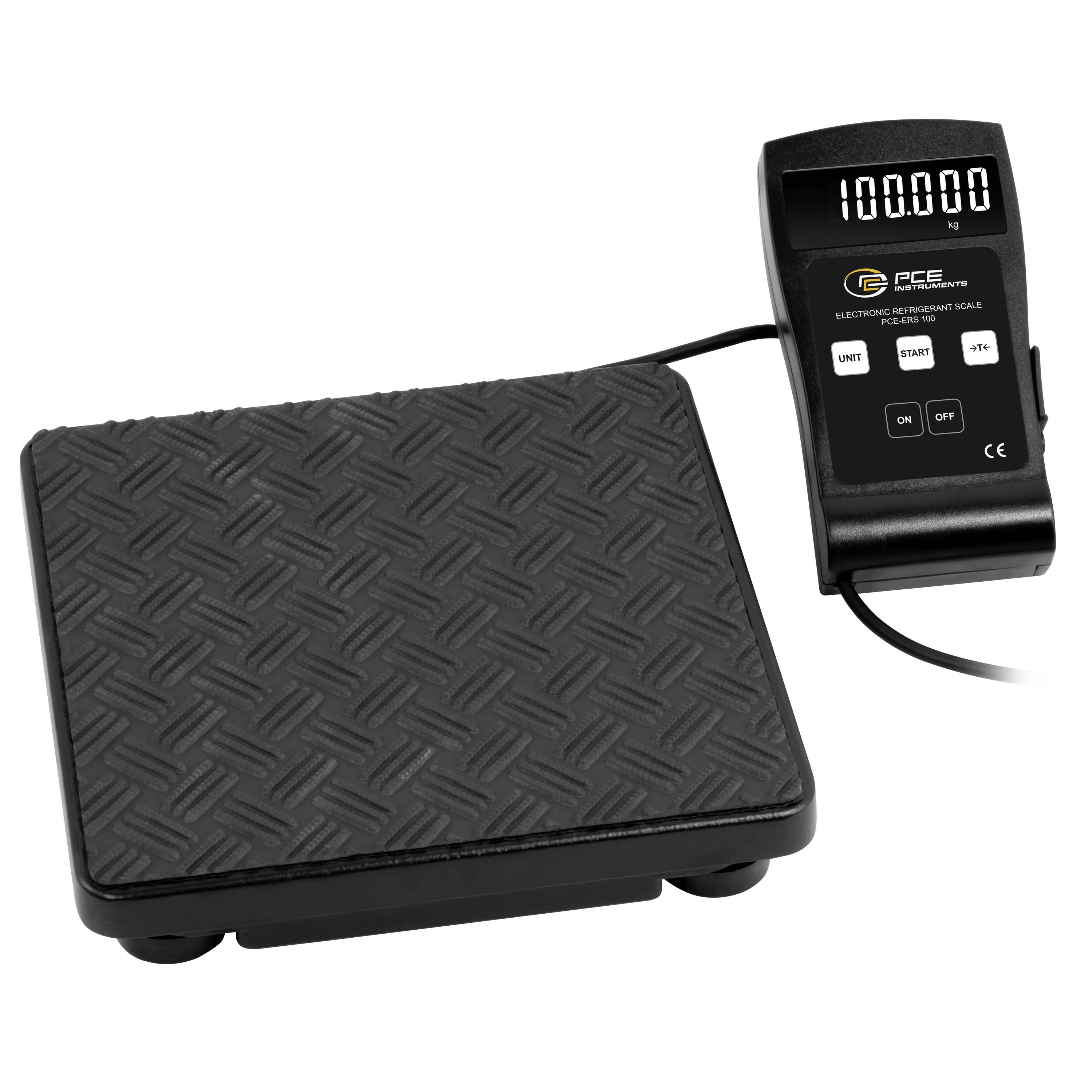

Black electronic platform scale with separate digital display showing 100.00, a foot platform connected by cable.<br>

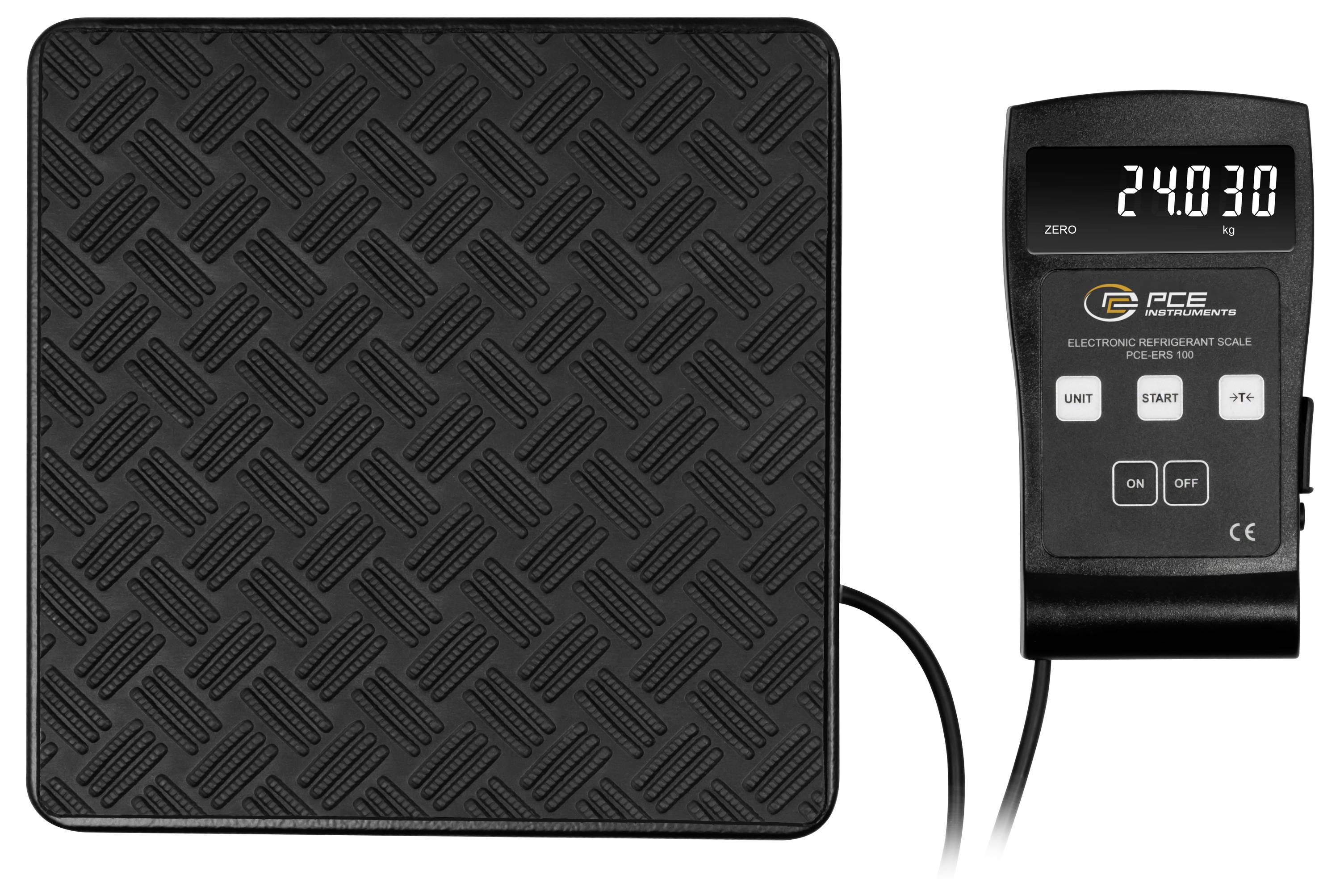

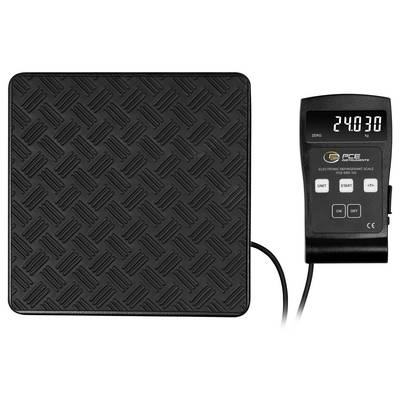

Digital platform scale with textured black weighing pad and separate display showing 24030, with control buttons for unit, start, plus/minus, on and off.

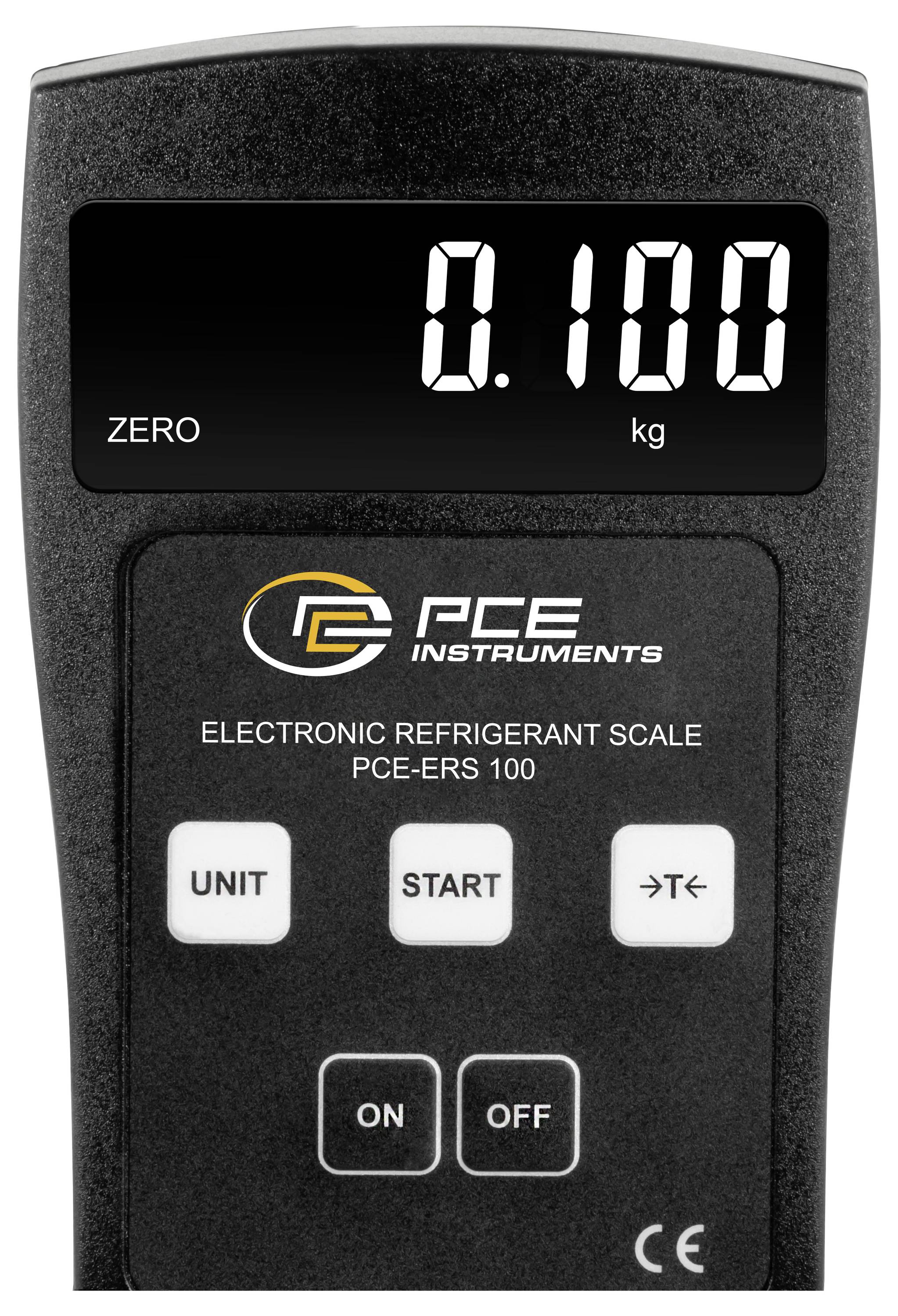

Digital refrigerant scale display reading 0.100 kg, with 'PCE Instruments' branding and unit, start, on/off buttons visible.

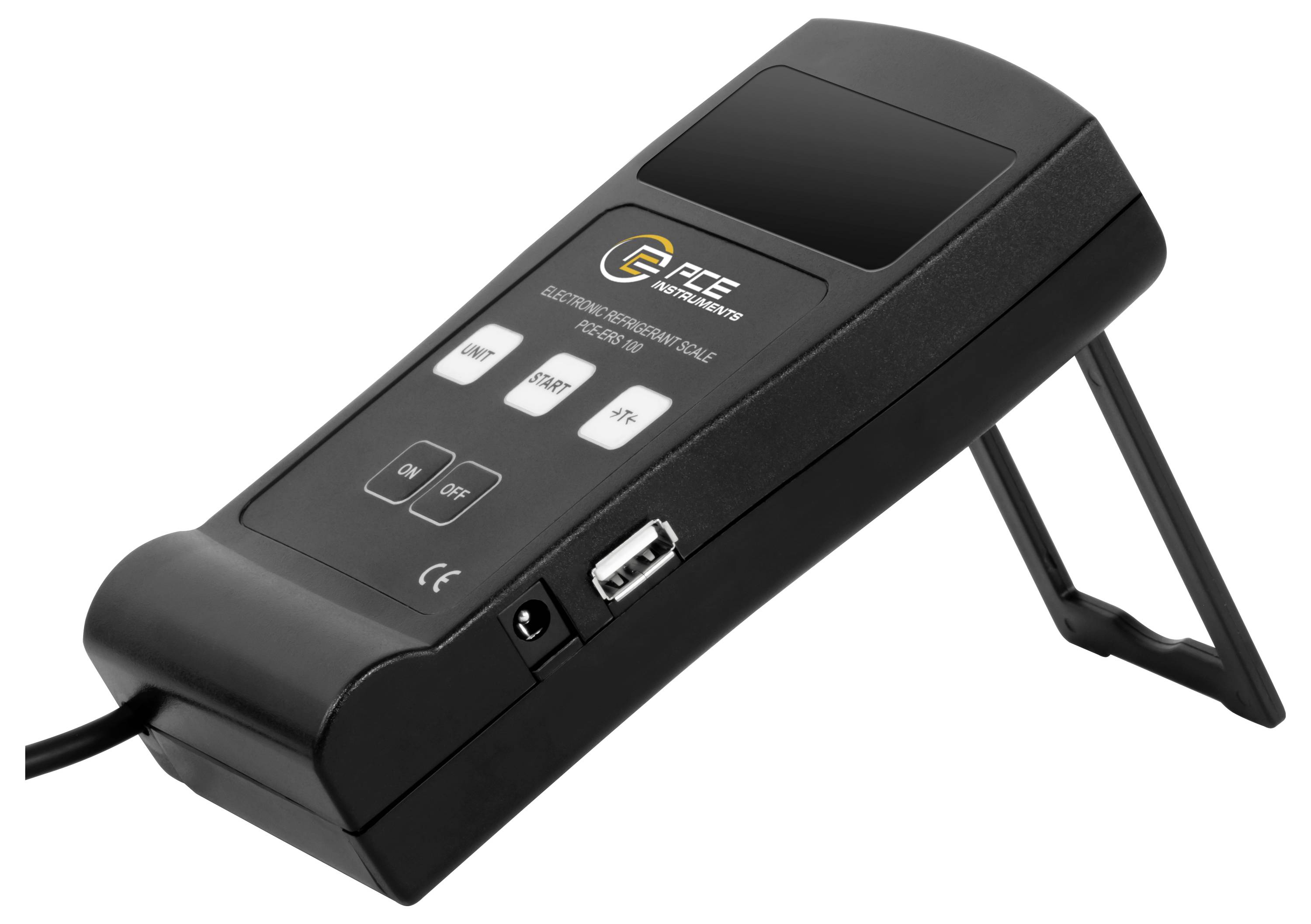

Black digital hanging scale with LCD screen, three control buttons, and fold-out stand, shown on a white background.

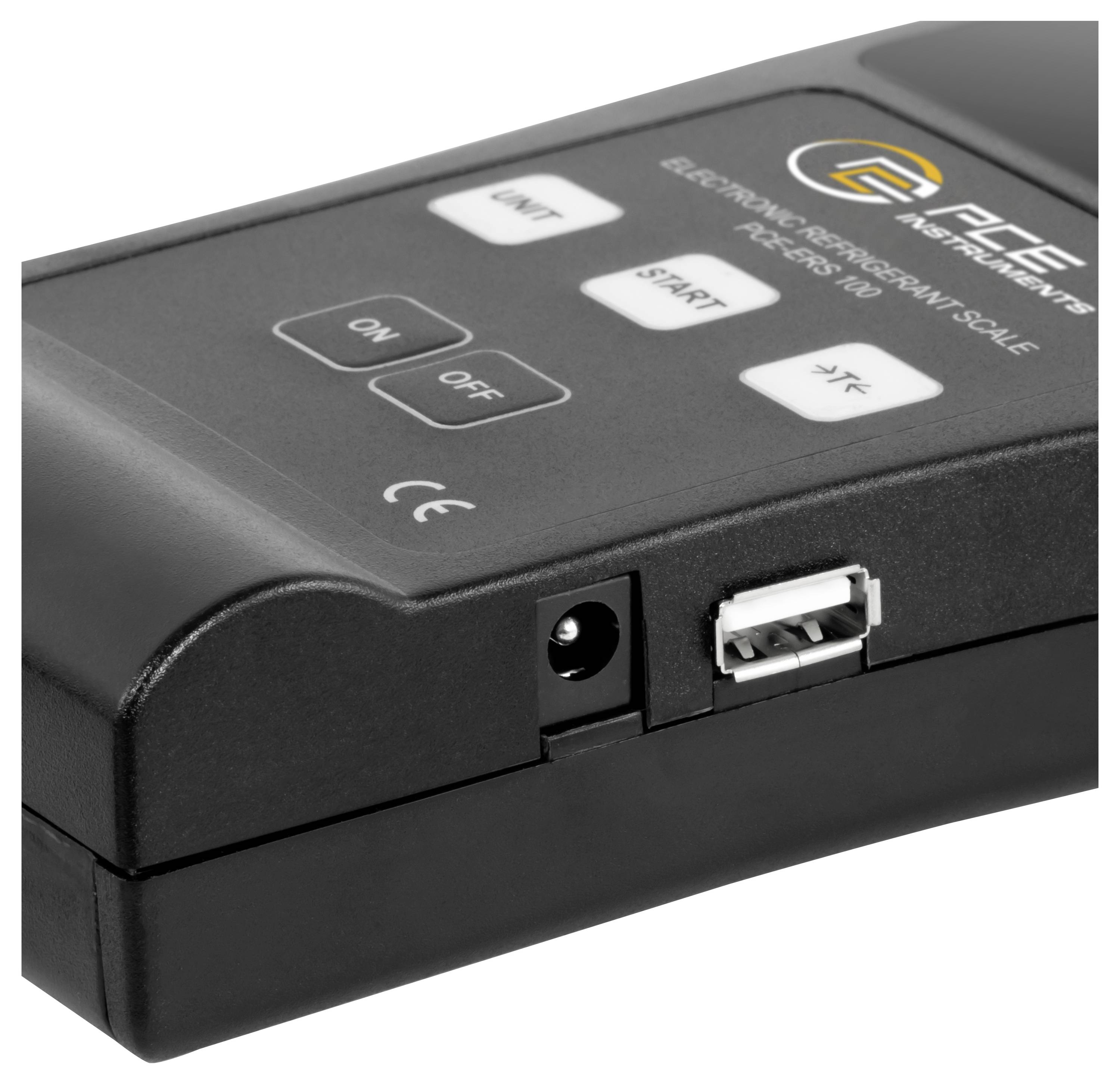

Black electronic portable scale power unit with ON/OFF, unit, and start buttons, plus power and USB ports on the side.

PCE Instruments PCE-ERS 100 Refrigerant scales PCE-ERS 100 Weight range 100 kg Readability 10 g battery-powered Black-5

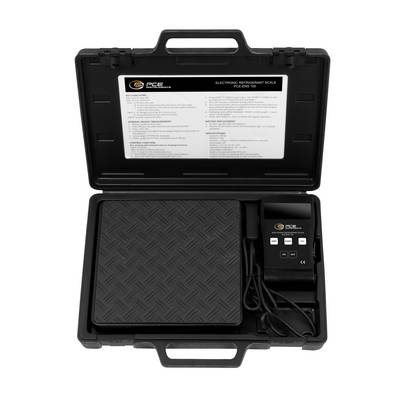

PCE Instruments PCE-ERS 100 Refrigerant scales PCE-ERS 100 Weight range 100 kg Readability 10 g battery-powered Black-6

1/7

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 259.00 / piece)

€ 259.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-ERS 100

Weighing capacity up to 100 kg.
CONTROL function
Units: Kg, g, lb, oz, Ib/oz
Auto switch-off
Weighing surface of 230 x 230 mm

Technical specifications

Weighing range
Measuring range [Max] 100 kg
Resolution [d] 0.01 kg
Accuracy ±0.01 kg
General Technical Data
Unit(s) Ib/oz, kg, g, lb, oz
Display type LCD
Display size 2.8 inches
Interface USB
Operating time 60 h
Automatically switches off approx. 15 min.
Cable length 1.3 m.
Audible alarm
Horizontal type: Horizontal scale
Minimum load [Min] 0.01 kg
Menu language English (US), English (GB)
Protection class (device) IP40
Power supply 6 V DC, 200 mA
Battery/Battery 1 x 9 V Block battery , Alkaline-Mangan
Capacity 640 mAh
Operating conditions 0 ... 40 °C , 0 ... 90 % r.F.
Storage conditions 0 ... 40 °C , 0 ... 90 % r.F.
Dimensions ( L x W x H ) 230 x 230 x 45 mm
Other dimensions of display: 160 x 85 x 38
Weighs 2061 g.

Weight range: 100 kg

Product type: Refrigerant scales

Readability: 10 g

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Factory colour: Black

Power supply (details): 6 V DC

Dim: (L x W x H) 230 x 230 x 45 mm (Display unit)

Weight: 2061 g

Weight resolution: 0.01 kg

Weighing plate: Rubber

Reading category: CAT III 1000 V
CAT IV 600 V

Dim. (add. text): Display unit

Width: 230 mm

Height: 45 mm

Length: 230 mm

Reproducibility: 10 g

Type: PCE-ERS 100

Features: Calibratable

Top plate (width): 230 mm

Top plate (length): 230 mm

Documents & Downloads

Datasheet

Datasheet 3369084 PCE Instruments PCE-ERS 100 Refrigerant scales PCE-ERS 100 Weight range 100 kg Readability 10 g battery-powered Black

User & Safety Instructions

User & Safety Instructions 3369084 PCE Instruments PCE-ERS 100 Refrigerant scales PCE-ERS 100 Weight range 100 kg Readability 10 g battery-powered Black

Description

Our refrigerant scales are the ideal solution for precise filling and emptying of refrigerant bottles. The refrigerant balance offers a measurement range of 0.01 ... 100 kg at a resolution of 0.01 kg making accurate measurements possible. The 230 x 230 mm large platform of the refrigerant scales has a non-slip rubber coating to ensure the safe storage of the bottles. Thanks to the external control unit, the refrigerant scales are ideal for flexible, mobile applications. The CONTROL function enables you to set the weight at which the scales emit an acoustic alarm.

Measurements can be made in different units such as kg, g, lb, oz and lb/oz. With the convenient tare function, the intrinsic weight can be faded out in order to measure only the actual weight change. A backlit display simplifies use even in poor lighting conditions. The scales are powered optionally with a 9V block battery or via the mains supply and have an automatic switch-off function for extending the battery life. The refrigerant scales are supplied in a practical transport case.
