Buy PCE Instruments PCE-CS 1T Crane scales PCE-CS 1T Weight range 1000 kg battery-powered Black

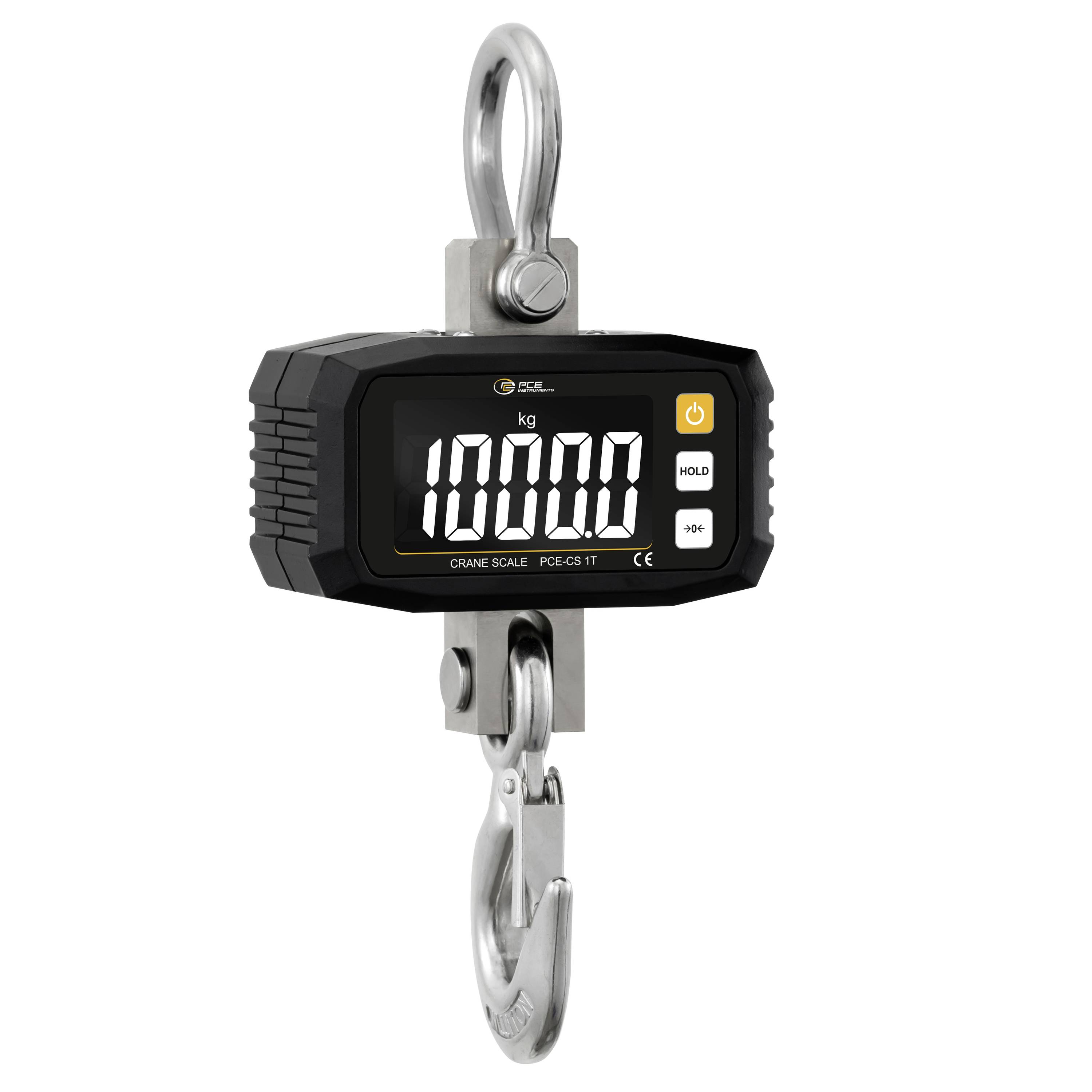

Digital crane scale with hook, showing a 1000.0 kg weight reading on a black display.

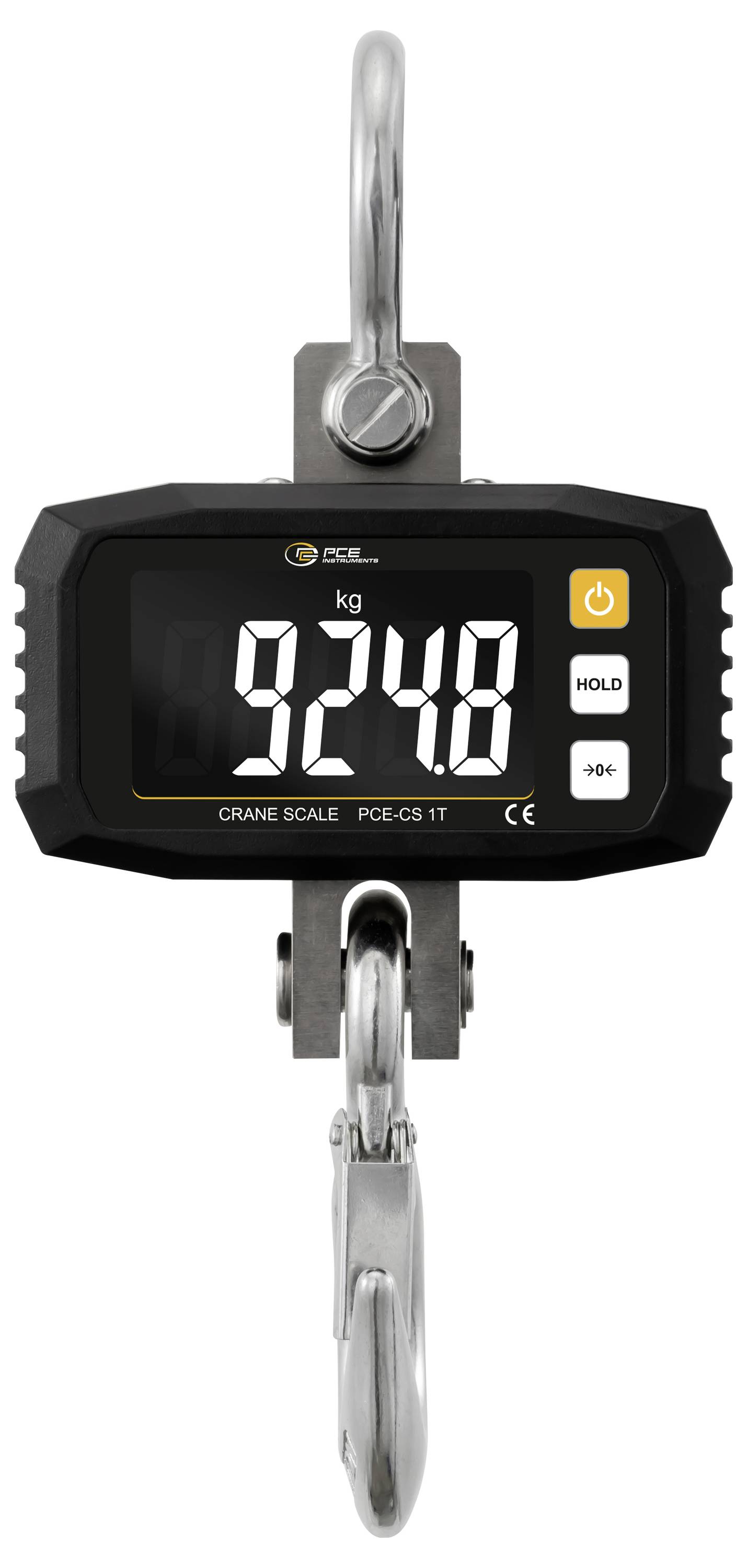

Digital crane scale displaying 9248 kg, with hook and shackle for weighing suspended loads.

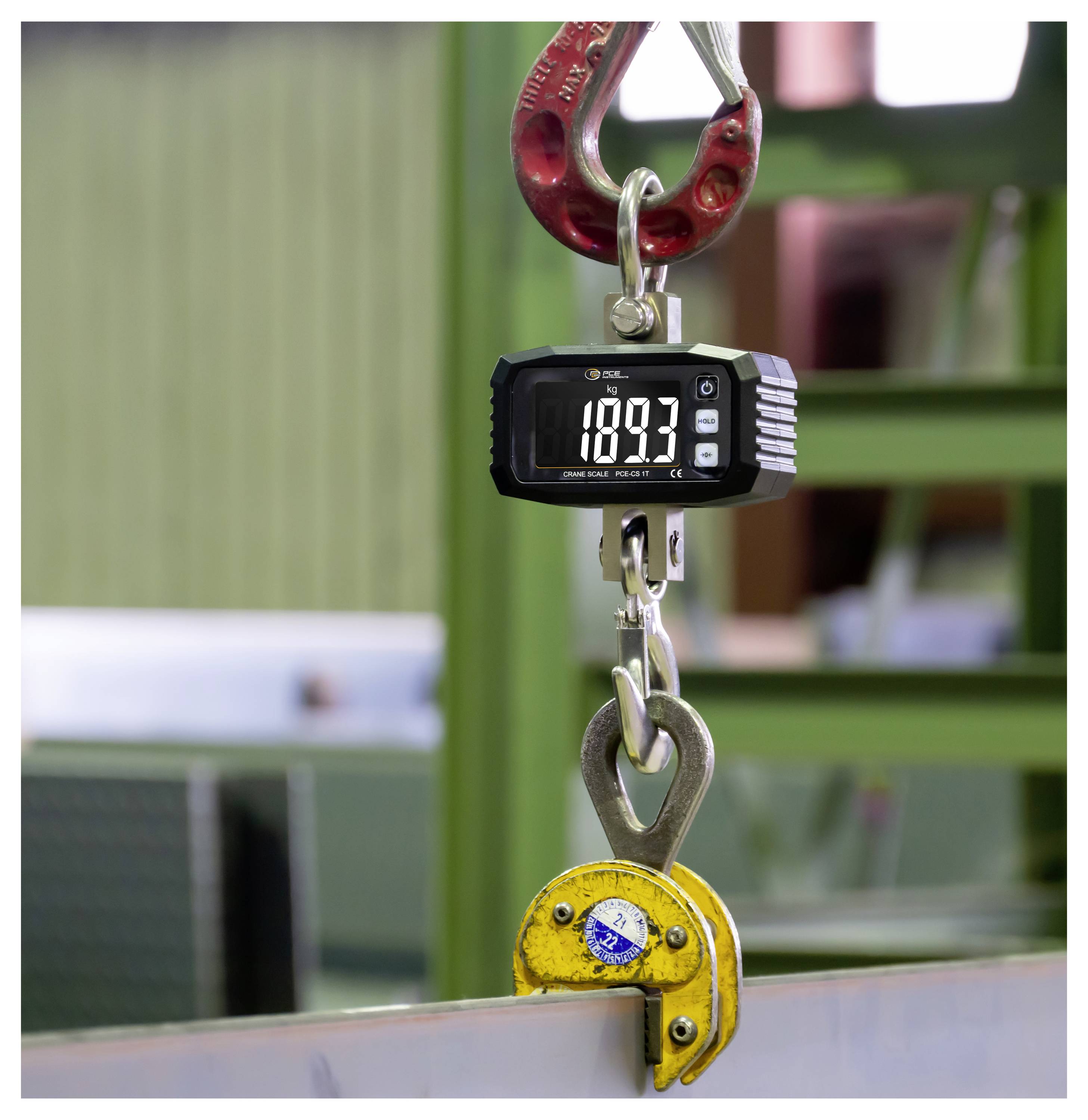

Digital hanging scale displaying 1893 kg, suspended from a red crane hook and attached to a yellow lifting clamp on a metal beam.

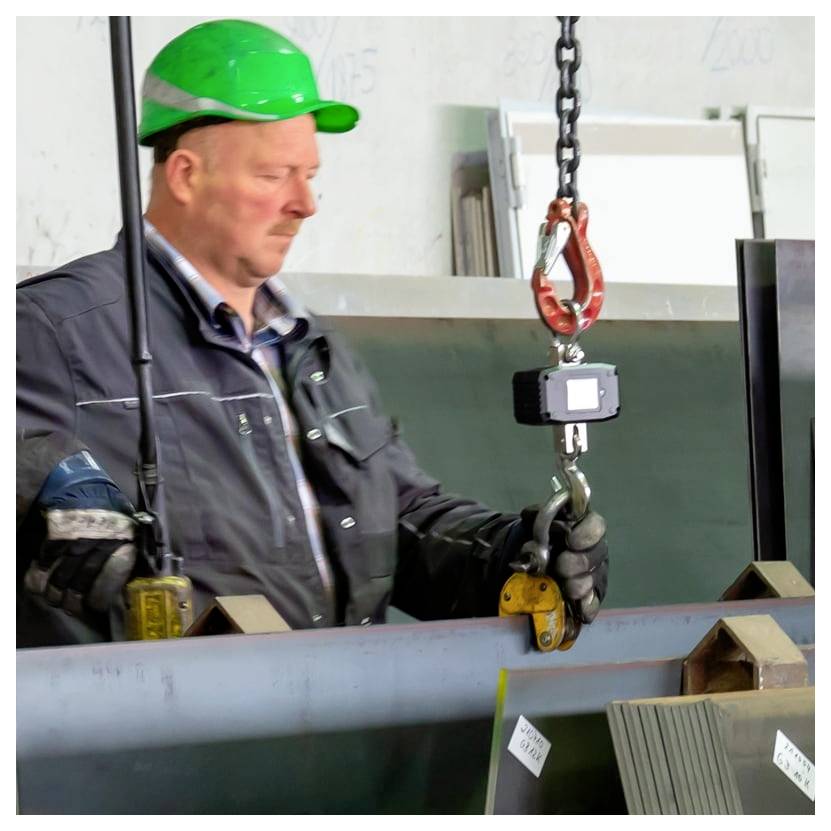

Factory worker in a green hard hat uses a crane hook and lifting clamp to move a large metal beam.<br>

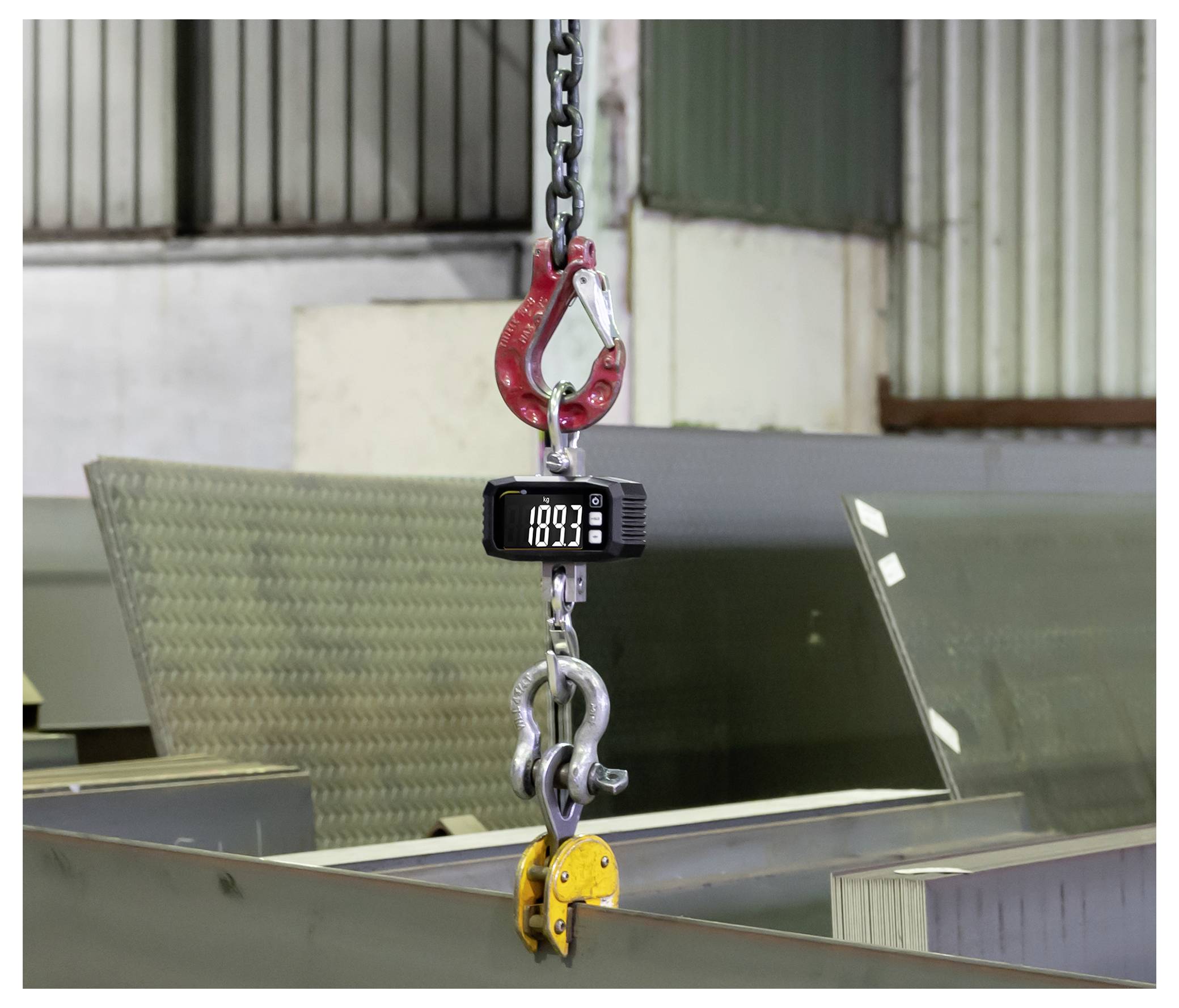

Industrial lifting scale with a digital readout '1893' hanging from a chain between two metal hooks in a workshop.

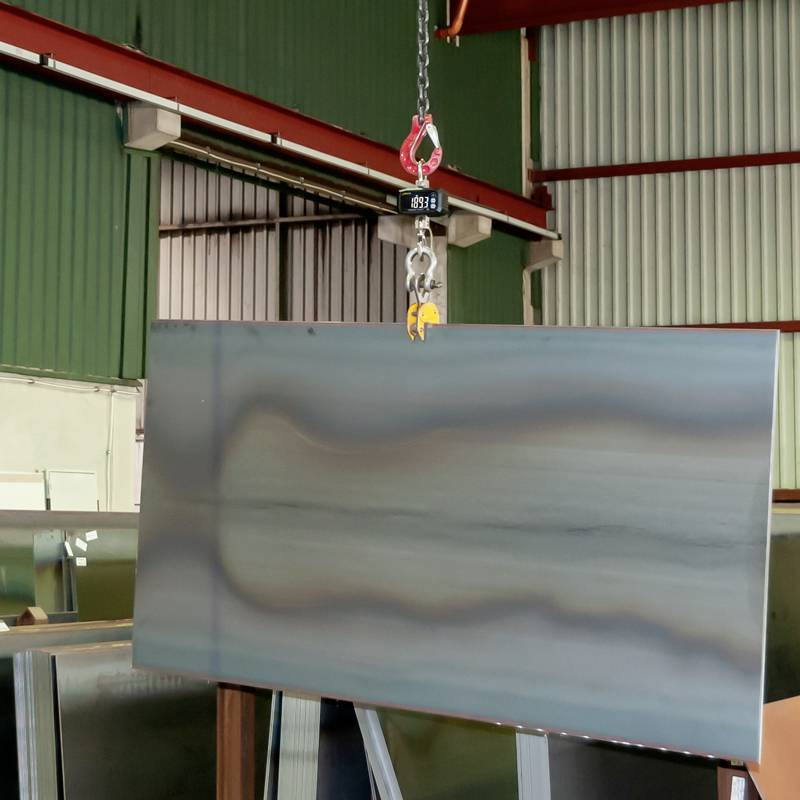

Steel plate is being transported in a workshop using a crane. The surroundings display industrial architecture and storage shelves.

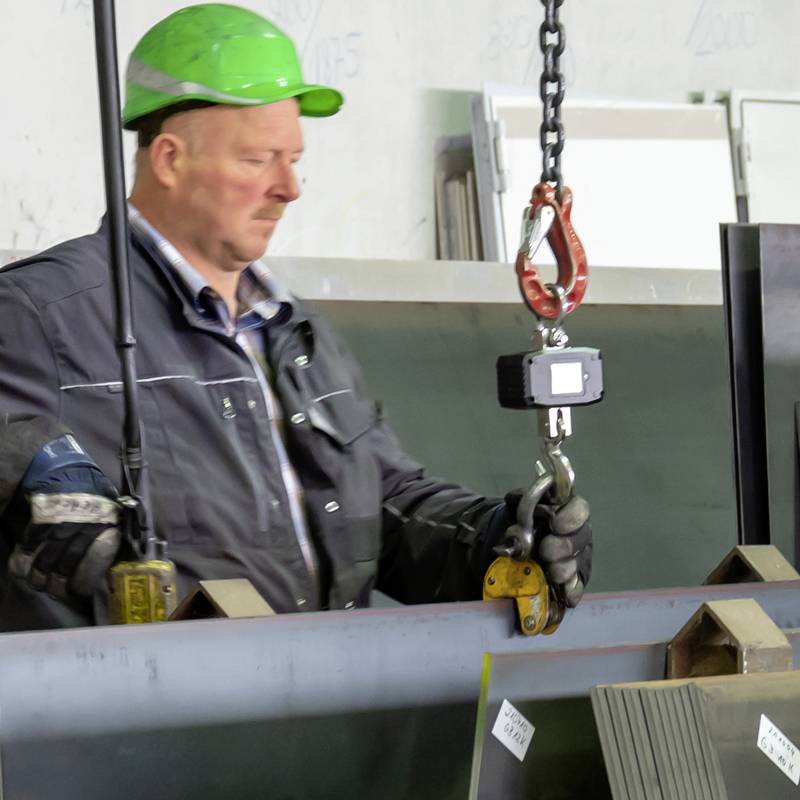

A worker wearing a green hard hat is operating a crane in an industrial hall. Metal plates are being moved. Safety shoes and gloves are visible.

1/7

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 142.85 / piece)

€ 142.85

plus VAT.

Report legal concerns

Highlights & Details

Digital - Crane weigher PCE-CS 1T

Measurement range 0 - 1000 kgAdjustable units kg, lb, N.Hold & Tara & MAX functionOptional with ISO calibration certificateBacklightHeavy duty metal casing

Technical specifications

Accuracy: 1 % of the measuring rangeUnits: Kg, lb, N.Functions: "Hold", "Tara", "MAX"Digit height: 30 mmShackle opening 20 mmHook opening 38 mmDisplay: LCD display with backlightPower supply: 3 x 1.5 V AA batteries

Weight range: 1000 kg

Product type: Crane scales

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Factory colour: Black

Power supply (details): 3 x 1.5 V AAA batteries

Dim: (L x W x H) 130 x 260 x 60 mm

Weight: 1320 g

Weight resolution: 0.1 kg

Width: 260 mm

Height: 60 mm

Length: 130 mm

Reproducibility: 10000 g

Type: PCE-CS 1T

Features: Calibratable
Incl. hook

Load capacity: 1000 kg

Documents & Downloads

Datasheet

Datasheet 2583825 PCE Instruments PCE-CS 1T Crane scales PCE-CS 1T Weight range 1000 kg battery-powered Black

User & Safety Instructions

User & Safety Instructions 2583825 PCE Instruments PCE-CS 1T Crane scales PCE-CS 1T Weight range 1000 kg battery-powered Black

Description

The crane scale has a measurement range of 0 - 1000 kg and a resolution of 0.1 kg. With an accuracy of 1% of the measuring range, the crane scale is also a precise measuring instrument. For this reason, the crane weigher is used, for example, when weighing raw materials. The backlit LC display on the crane scale has a digit height of 30 mm and can be read easily from a long distance. In addition to the kg display, the crane scale can also display the attached weight in lb and in N. The robust metal housing of the crane scales allows use in harsh industrial environments. The crane scale is operated via three 1.5 V AA batteries. The "MAX" function of the crane scale only displays and holds the largest weighed load. The "Tara" function can be used to reset the displayed measured value for the crane scale. This function is activated when, for example, measuring equipment is attached. The "Hold" function of the crane scale allows you to hold a displayed measured value. PCE Instruments offers an ISO calibration certificate for the crane scales as an option.
