Buy PCE Instruments PCE-MFM 2400 Magnetic field tester

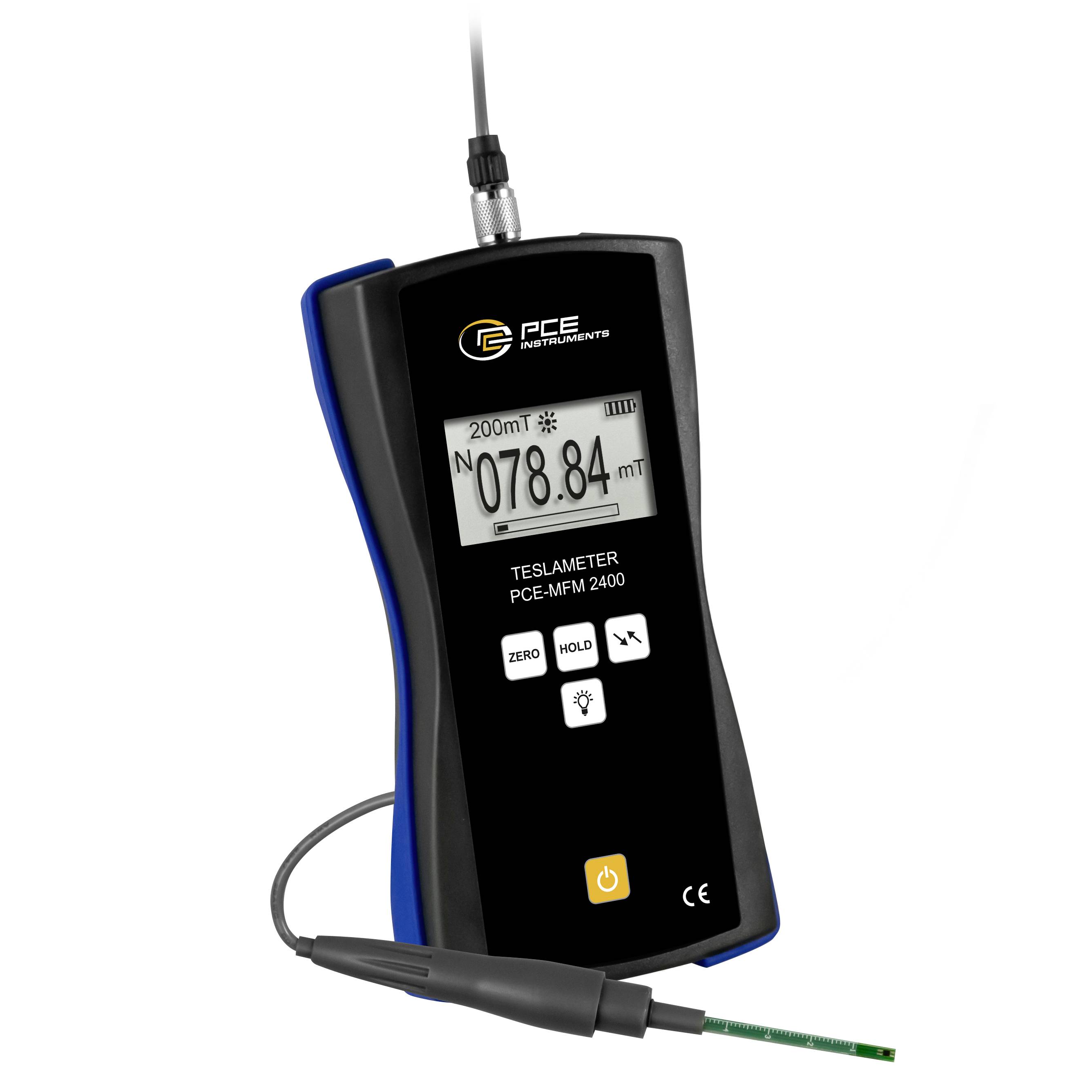

Handheld PCE Instruments teslameter showing a magnetic field reading of 078.84 mT, with probe attached and cable connected.<br>

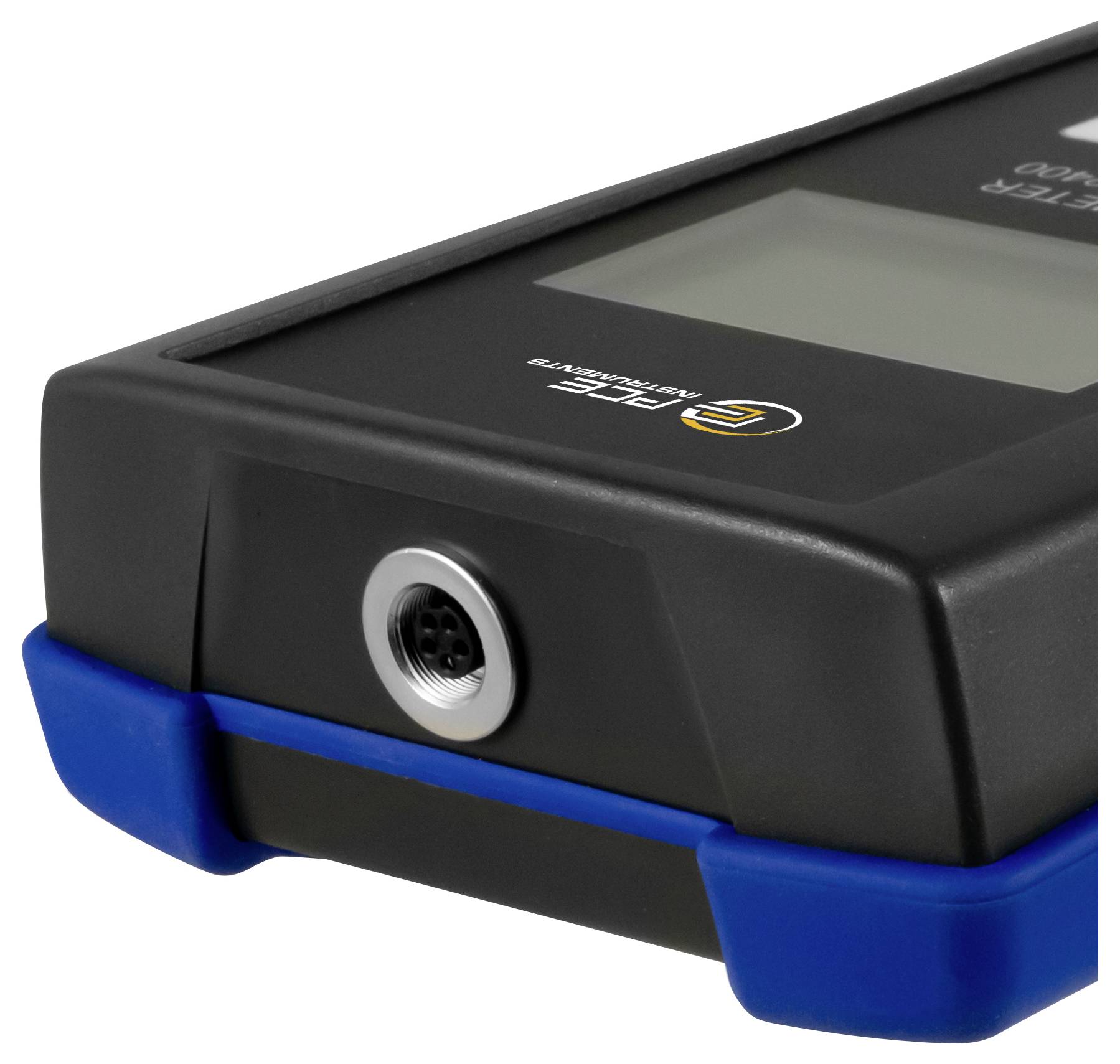

Close-up of a black handheld electronic device with a screen and circular connector port, accented in blue rubber housing on a white background.

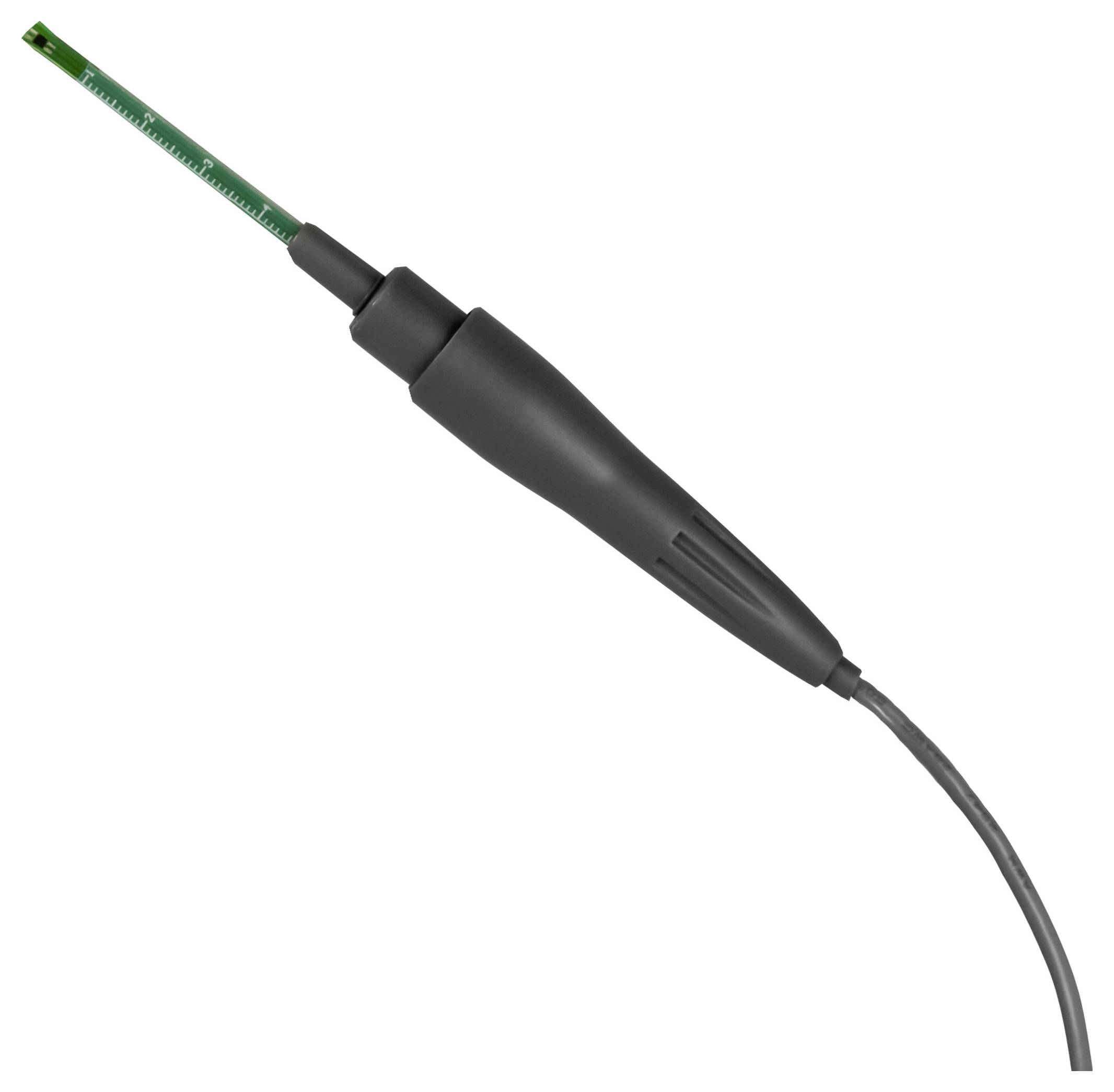

Black handheld probe with a long cable and narrow green tip, shown isolated on a white background.

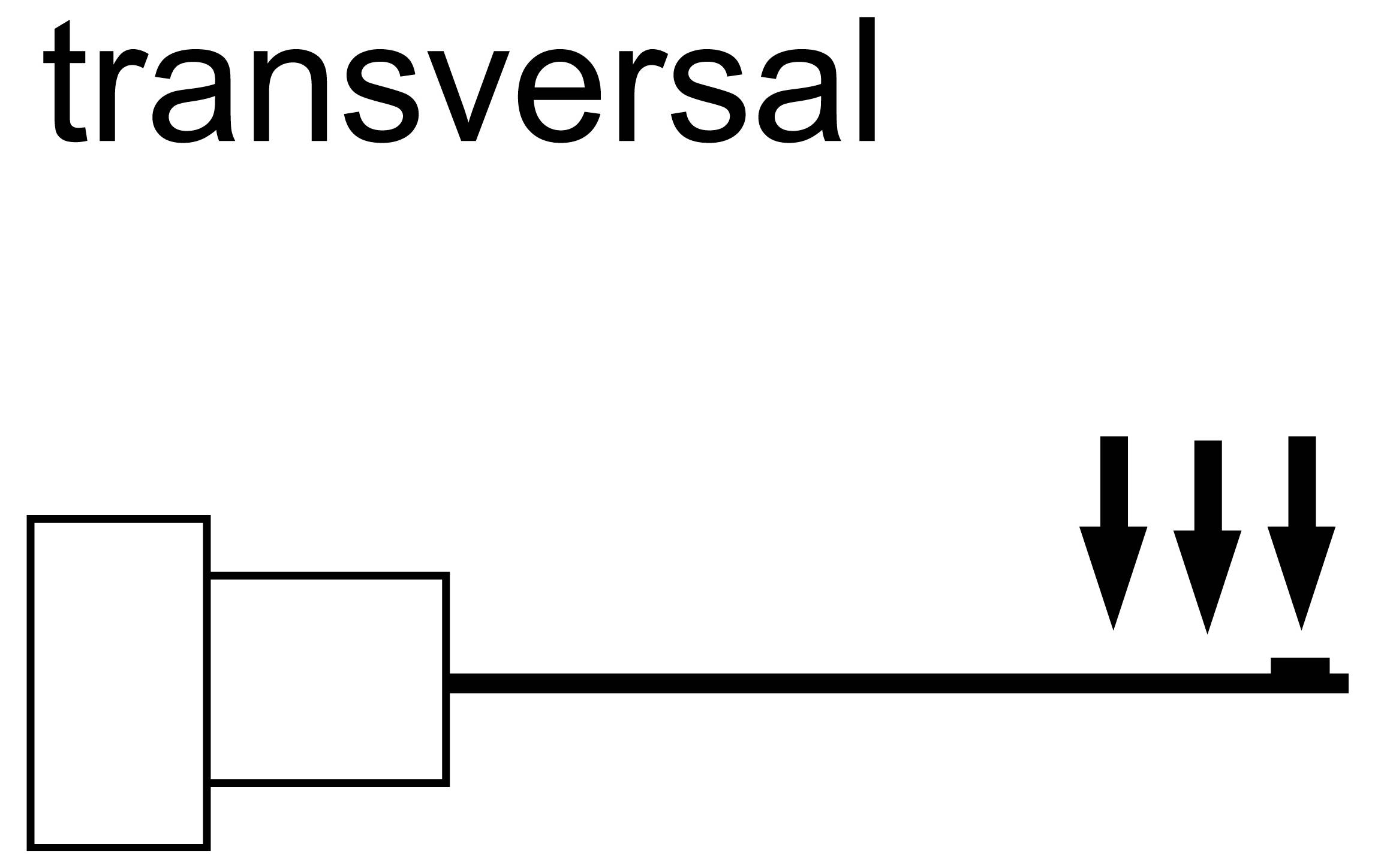

Diagram labeled 'transversal' showing a horizontal line crossing a shape, with three downward arrows pointing to the line on the right.

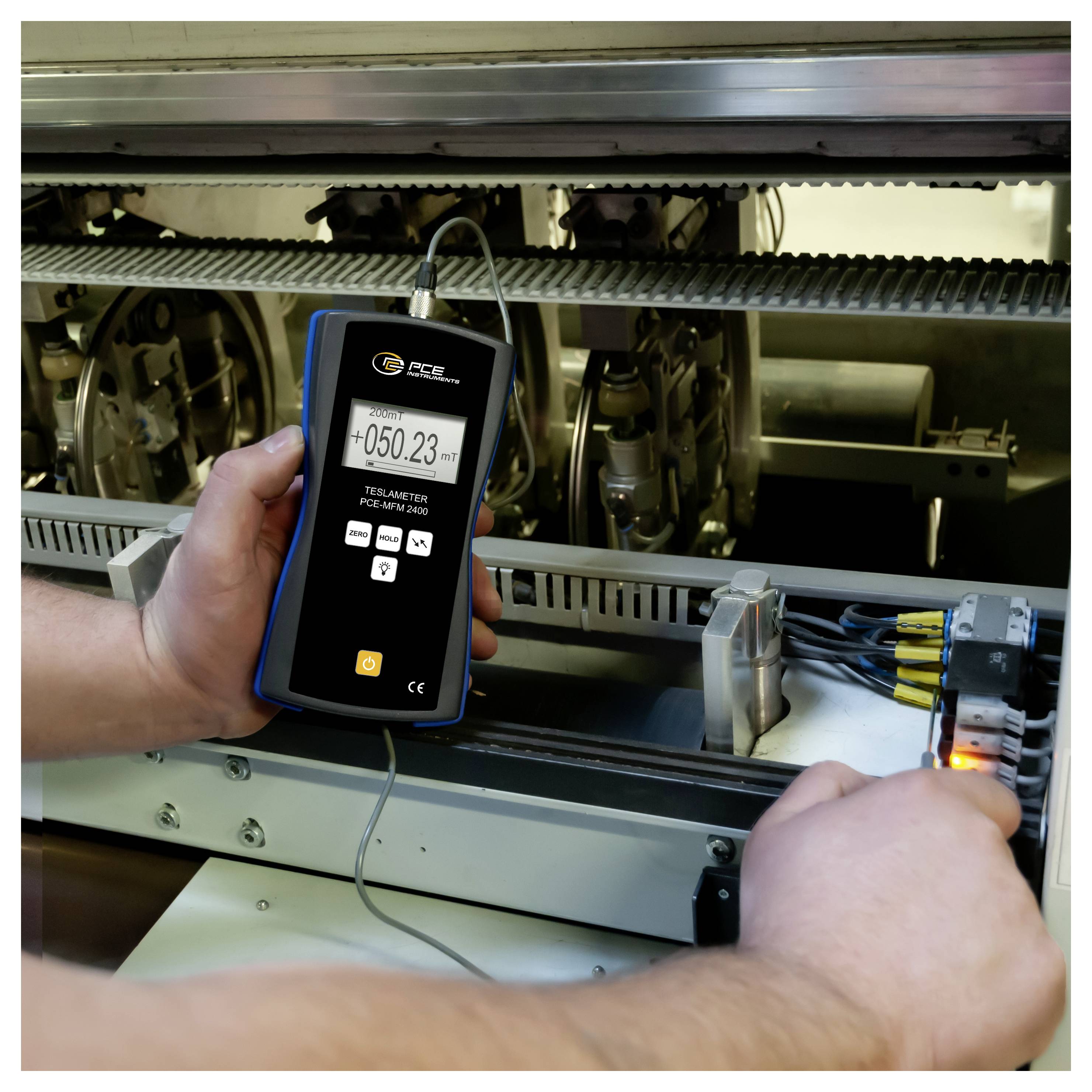

A technician uses a handheld telameter to measure inside industrial machinery, with a digital reading of '+050.23 m' visible on the device.

1/5

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

23 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 721.85 / piece)

€ 721.85

plus VAT.

Report legal concerns

Highlights & Details

Magnetic METER PCE-MFM 2400+

Calibration certificate included in delivery
Very accurate measurement technology
Measurement range up to 24,000 G and 2,400 MT
Transverse sensor
For measuring static magnetic fields
Auto switch-off

Technical specifications

Height: 185 mm
Measurement range 0 … 200 MT, 200 … 2,400 MT, 0 … 2,000 G, 2,000 … 24,000 G.

Magnetic flux density: 2400 µT

Product type: Magnetic field tester

Dim: (L x W) 97 mm x 40 mm

Weight: 310 g

Width: 40 mm

Length: 97 mm

Documents & Downloads

Datasheet

Datasheet 2299576 PCE Instruments PCE-MFM 2400 Magnetic field tester

User & Safety Instructions

User & Safety Instructions 2299576 PCE Instruments PCE-MFM 2400 Magnetic field tester

Description

With a measurement range of 2,400 MT, the magnetic field meter covers a large range of measuring tasks. The magnetic field meter has an accuracy of 1%. This makes the magnetic field meter a very precise measuring medium. For example, the magnetic field meter can be used to test relays as well as permanent magnets for the existing magnetic field. Thus, the magnetic field meter is used in production processes or also in quality control. With the background lighting of the magnetic field meter, the measured values are always easy to read even under poor lighting. Thanks to the automatic switch-off function, the magnetic field meter automatically switches off after 5 minutes. This ensures that the battery of the magnetic field meter does not discharge completely.

This text is machine translated.
