Name: PCE Instruments PCE-WS US2 Anemometer 0 up to 160 km/h
Brand: PCE Instruments
SKU: 3369129
Availability: OutOfStock

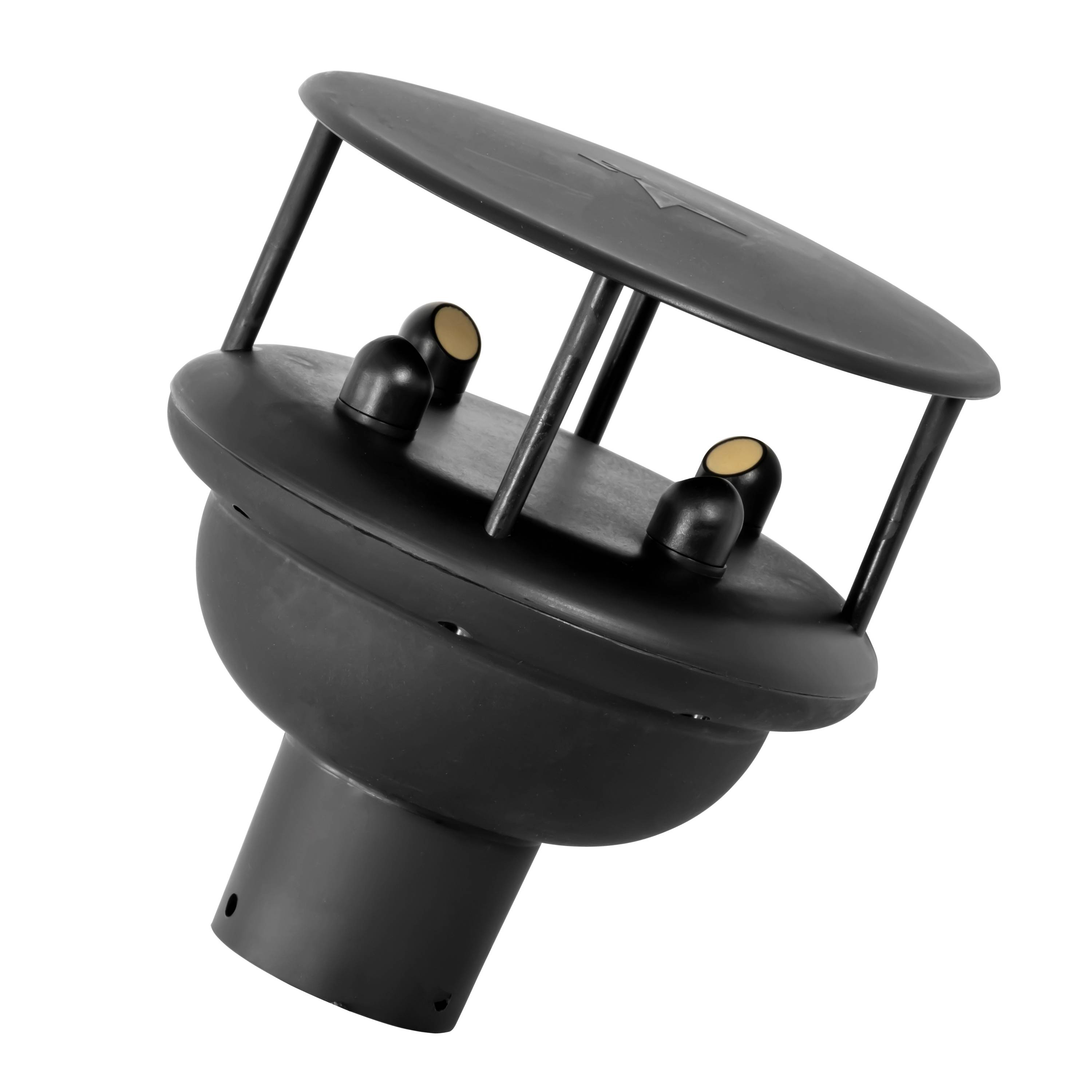

Black outdoor path light with a slanted top and two visible lamp heads on a cylindrical base.<br>

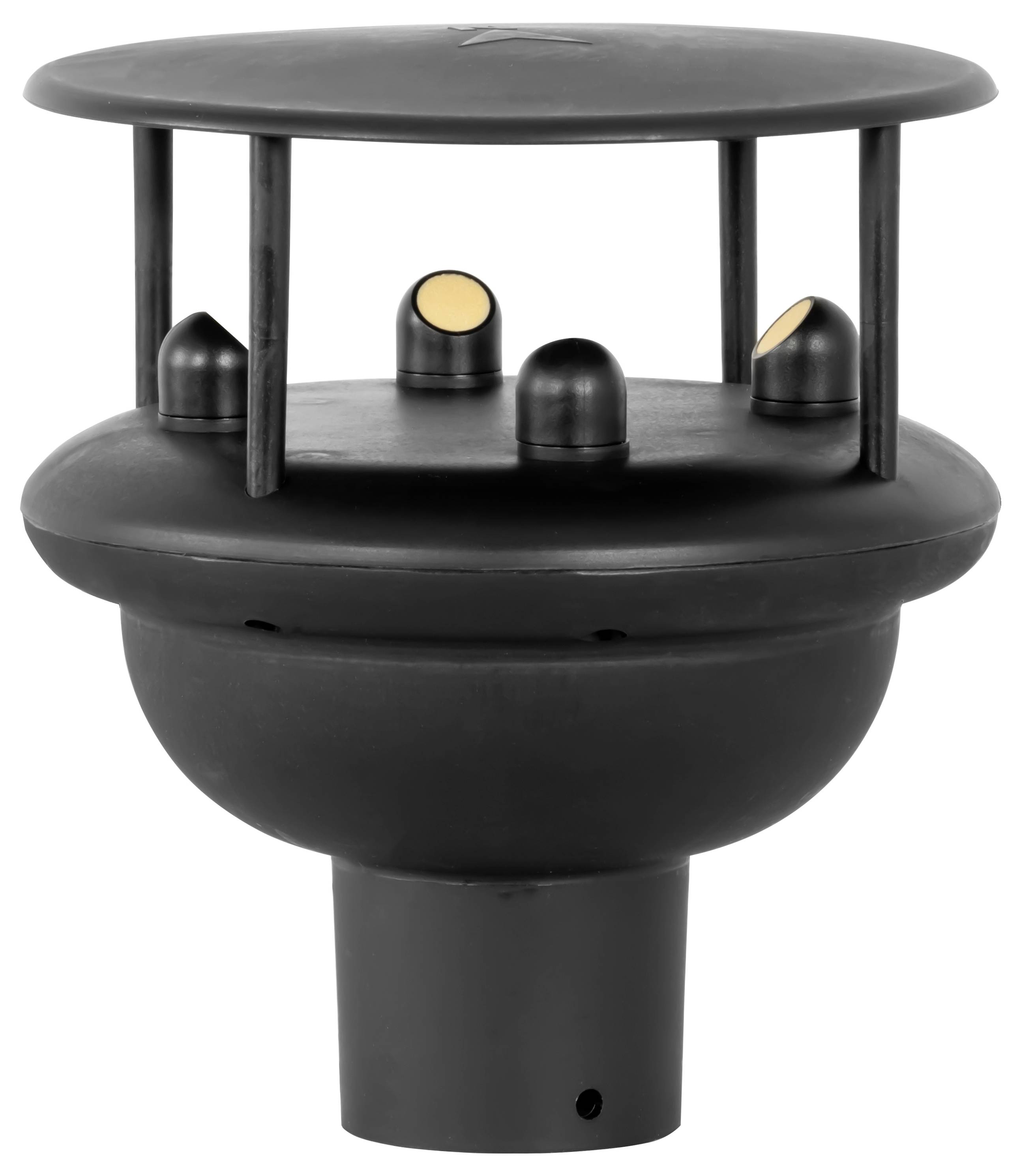

Black cylindrical outdoor post light with a flat canopy and four small dome-topped bulbs inside.

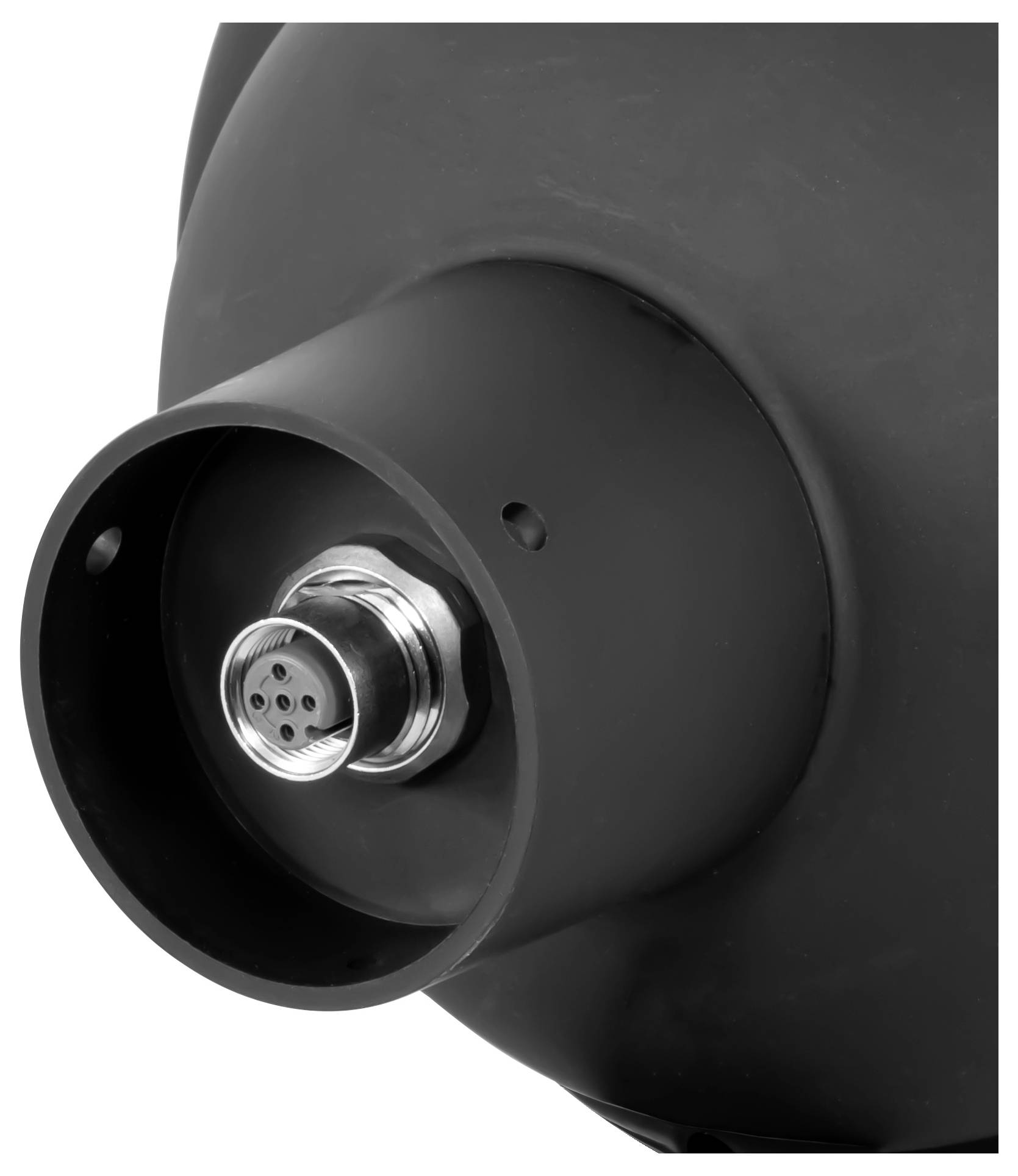

Close-up of a black cylindrical device with a silver multi-pin connector socket on the front.

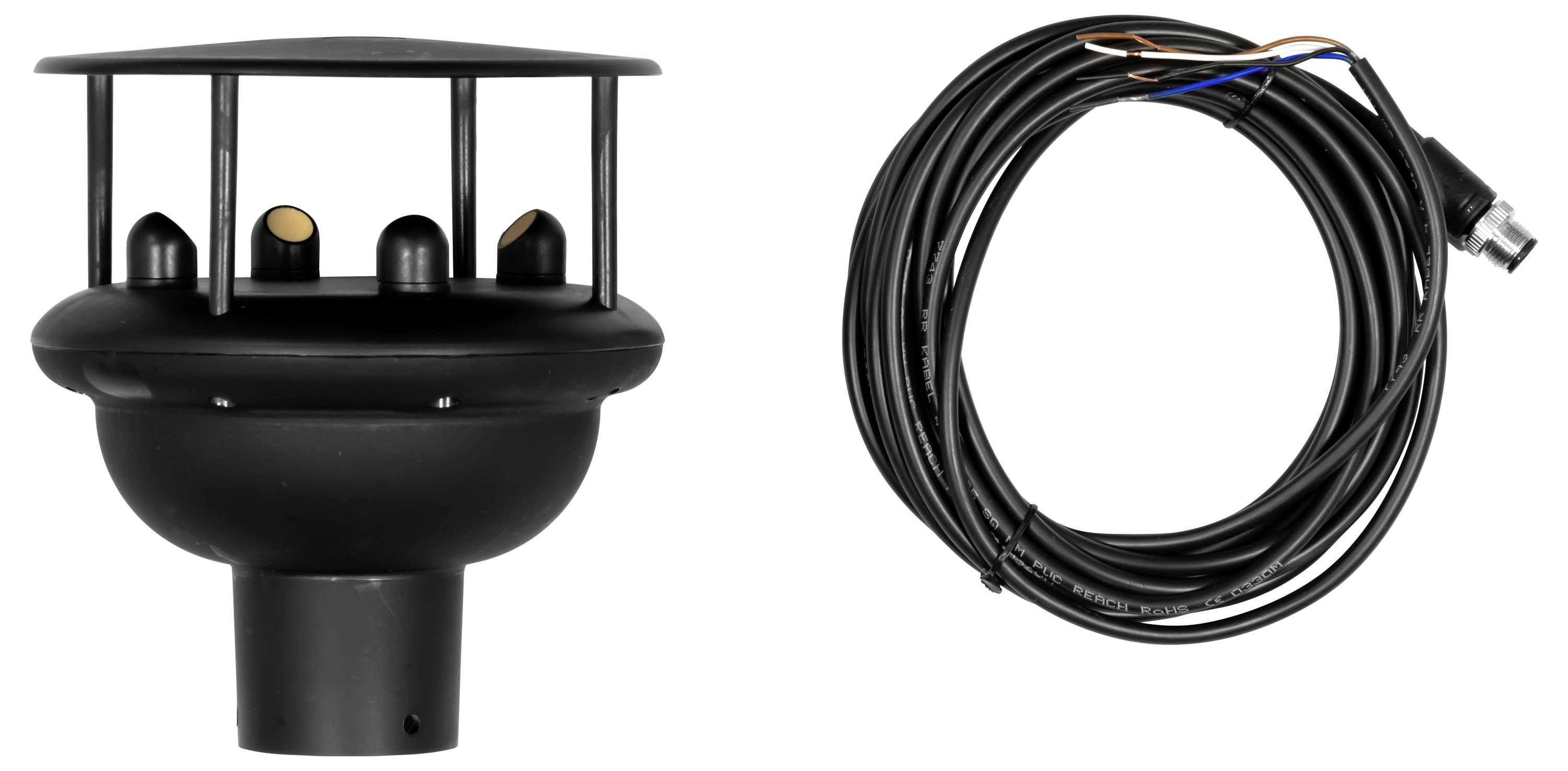

Black outdoor sensor unit with protective top cover beside a coiled black cable with connector ends.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Currently not available

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 815.00 / piece)

€ 815.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-WS US2

High resistance to high-frequency interference and electromagnetic waves
RS485 Modbus RTU output
Wear and maintenance-free ultrasound converter
Compact: Measures wind speed and direction in one unit
Protection class IP65 for outdoor use
5 m cable with 4-pin M12 plug included in delivery
Power supply 9 ... 30 V DC
Max. permitted wind speed: 200km/h

Technical specifications

Speed
Measuring range 0 ... 15 km/h
Resolution 1 km/h
Accuracy 0.5 km/h
Speed
Measuring range 15 ... 120 km/h
Resolution 1 km/h
Accuracy 3% from MW.
Speed
Measuring range 120 ... 160 km/h
Resolution 1 km/h
Accuracy 5% from MW.
Wind direction
Measuring range 0 ... 359 °
Resolution 1 °
Accuracy 3 °
General Technical Data
Measurement functions flow speed
Connections M12 4-pin
Display type without display
Interface: RS485
Ultrasound sensor
PA casing (polyamide)
Protection class (device) IP65
Power supply 9 ... 30 V DC
Weight 400 g
Operating conditions -30 ... 70 °C , 0 ... 100 % r.F.
Storage conditions -35 ... 80 °C , 0 ... 100 % r.F.
Dimensions ( H x D) 162 x 143 mm

Wind speed resolution: 1 km/h

Product type: Anemometer

Temperature reading range: -30 up to 70 °C

Accuracy: 0.5

: Manufacturer's standards (no certificate)

Accuracy: 0.5

Weight: 400 g

Temperature reading range (max.): 70 °C

Temperature reading range (min.): -30 °C

Air speed reading range (max.): 160 km/h

Air speed reading range (min.): 0 km/h

Height: 162 mm

Length: 143 mm

Power supply (details): 30 V DC

Variants(All information include VAT, plus shipping costs)

Accuracy

Temperature reading range

Wind speed reading range

PCE Instruments PCE-WS US2 Anemometer 0 up to 160 km/h

Item no:3369129

Currently not available

Conrad Electronic

This article

0.5

-30 up to 70 °C

0 up to 160 km/h

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 815.00^*

PCE Instruments PCE-A 430 Anemometer 2.5 up to 105 km/h Thermometer

Item no:3324674

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

4 %

-20 up to 50 °C

2.5 up to 105 km/h

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

PCE Instruments PCE-AM 40 Anemometer 1 up to 162 km/h Thermometer, USB interface

Item no:3594410

Fast track dispatch on Thu 29 Oct

13 Piece(s)Conrad Electronic

0 up to 45 °C

1 up to 162 km/h

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 85.99^*

PCE Instruments PCE-AM 45 Anemometer 0.3 up to 45 m/s Thermometer

Item no:2583833

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

0 up to 45 °C

0.3 up to 45 m/s

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 244.99^*

PCE Instruments PCE-AM 30 Anemometer 0.1 up to 30 m/s Thermometer

Item no:3192913

Unavailable

19 Piece(s)Conrad Electronic

1 °C

-10 up to 50 °C

0.1 up to 30 m/s

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-AM 31 Anemometer 2 up to 90 km/h Thermometer

Item no:3812942

Unavailable

Conrad Electronic

2 °C

-10 up to 45 °C

2 up to 90 km/h

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-WS CR Anemometer 0.8 up to 50 m/s

Item no:2813705

Unavailable

Conrad Electronic

<4 m/s: ± 0.27 m/s>4 m/s: ± 3 %

-20 up to 80 °C

0.8 up to 50 m/s

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-WSAC 50+ 230 Anemometer 0 up to 50 m/s Datalogger function

Item no:3369130

Unavailable

Conrad Electronic

0.3 ms

-20 up to 70 °C

0 up to 50 m/s

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-WSAC 50+ 24 Anemometer 0 up to 50 m/s Datalogger function

Item no:3369131

Unavailable

Conrad Electronic

0.3 ms

-20 up to 70 °C

0 up to 50 m/s

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-WSAC 50W+ 230 Anemometer 1 up to 50 m/s Datalogger function

Item no:3594546

Unavailable

Conrad Electronic

-20 up to 70 °C

1 up to 50 m/s

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3369129 PCE Instruments PCE-WS US2 Anemometer 0 up to 160 km/h

User & Safety Instructions

User & Safety Instructions 3369129 PCE Instruments PCE-WS US2 Anemometer 0 up to 160 km/h

Description

The ultrasound anemometer measures wind flow using ultrasound converters to determine the exact wind speed and direction. The ultrasound measuring principle eliminates the need for moving parts such as those used in mechanical shell anemometers, resulting in no mechanical friction. The ultrasound anemometer is robust, designed for use in industrial environments and highly resistant to radio frequencies and electromagnetic waves. Thanks to the high degree of protection IP65, it is also protected against the penetration of dust and water and thus Ideal is suitable for outdoor use.

The ultrasound anemometer offers RS485-Modbus-RTU bus communication and is therefore compatible with the latest industrial communication protocols. The compact design of the ultrasonic anemometer allows the measurement of wind speed and direction in a single device, WAS significantly reduces the complexity and space requirements of conventional mechanical anemometer and wind vane.

Typical application areas include solar trackers, irrigation control systems, greenhouse automation, wind turbines, cranes and weather stations. The device is Ideal for all applications, which need a precise wind monitoring for control, safety or for optimizing industrial resources.

This text is machine translated.
