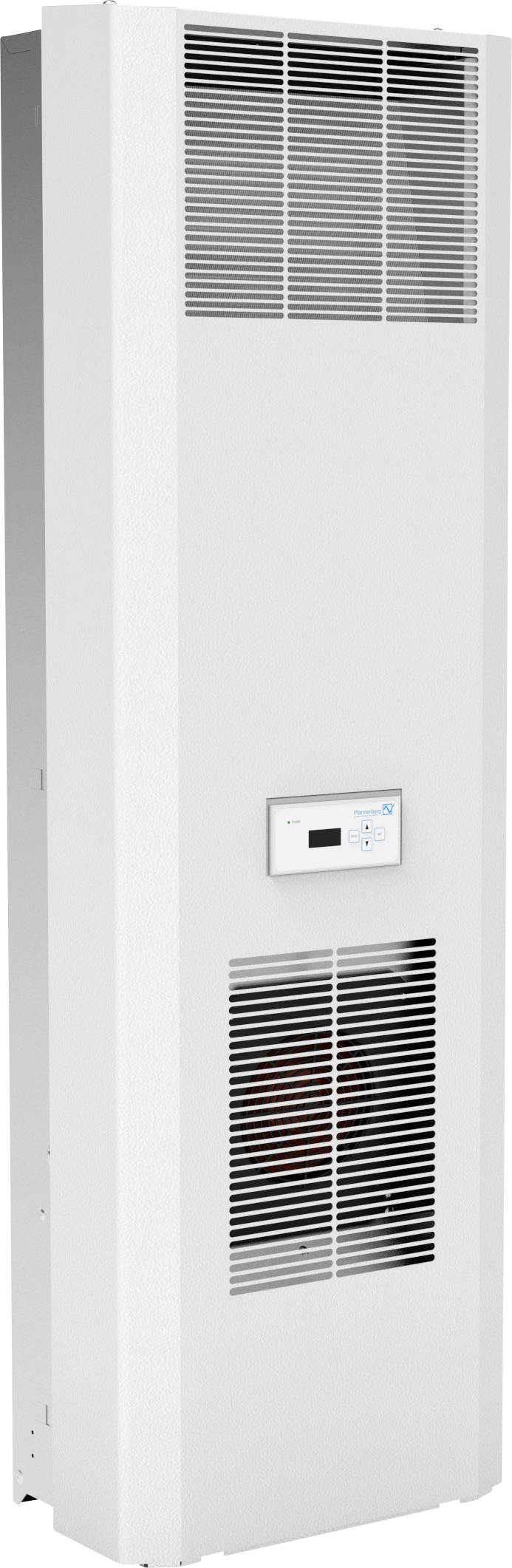

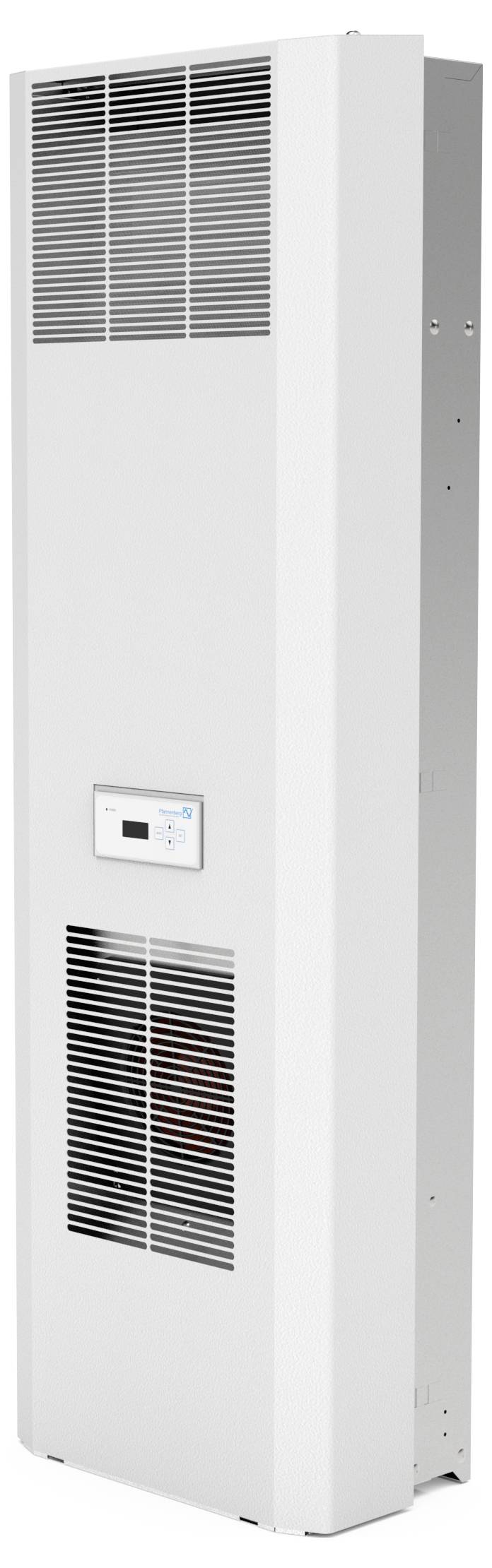

Pfannenberg DTI 6501 400V MC 7035 Cooler 400 V AC 2500 W (W x H x D) 485 x 1537 x 278 mm Single 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Cooler
Operating voltage
400 V AC
Power
2500 W
Width
485 mm
Datasheet (PDF)
Number
Total (€ 2,978.99 / piece)
€ 2,978.99
plus VAT.
Technical specifications
- Packaging type
Single
- Product type
Cooler
- Type
DTI 6501 400V MC 7035
- Features
Fan
- Operating voltage
400 V AC
2500 W
- Air flow rate
1175 m³/h
- Compatible with
Pfannenberg
- Min. temperature
10 °C
- Max. temperature
55 °C
- Width
485 mm
- Height
1537 mm
- Depth
278 mm
- Dim
(W x H x D) 485 x 1537 x 278 mm
- Content
1 pc(s)
485 mm
Other
1537 mm
278 mm
AC
FALSE
TRUE
TRUE
10-55 °C
400-400 V
460-460 V
2500 W
FALSE
1175-1175 m³/h
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3335210 Pfannenberg DTI 6501 400V MC 7035 Cooler 400 V AC 2500 W (W x H x D) 485 x 1537 x 278 mm Single 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3335210 Pfannenberg DTI 6501 400V MC 7035 Cooler 400 V AC 2500 W (W x H x D) 485 x 1537 x 278 mm Single 1 pc(s)
Description
The coolers of the Green series are characterized by extremely high energy efficiency and ease of service. Moreover, their modern design makes them easy to integrate into any layout.
Significantly less refrigerant is used and the devices are already listed according to UL 60335, for long-term planning even after 2024.
Multi Controller (MC): Energy-saving switching mode makes possible an additional sensor dependent internal fan switch off

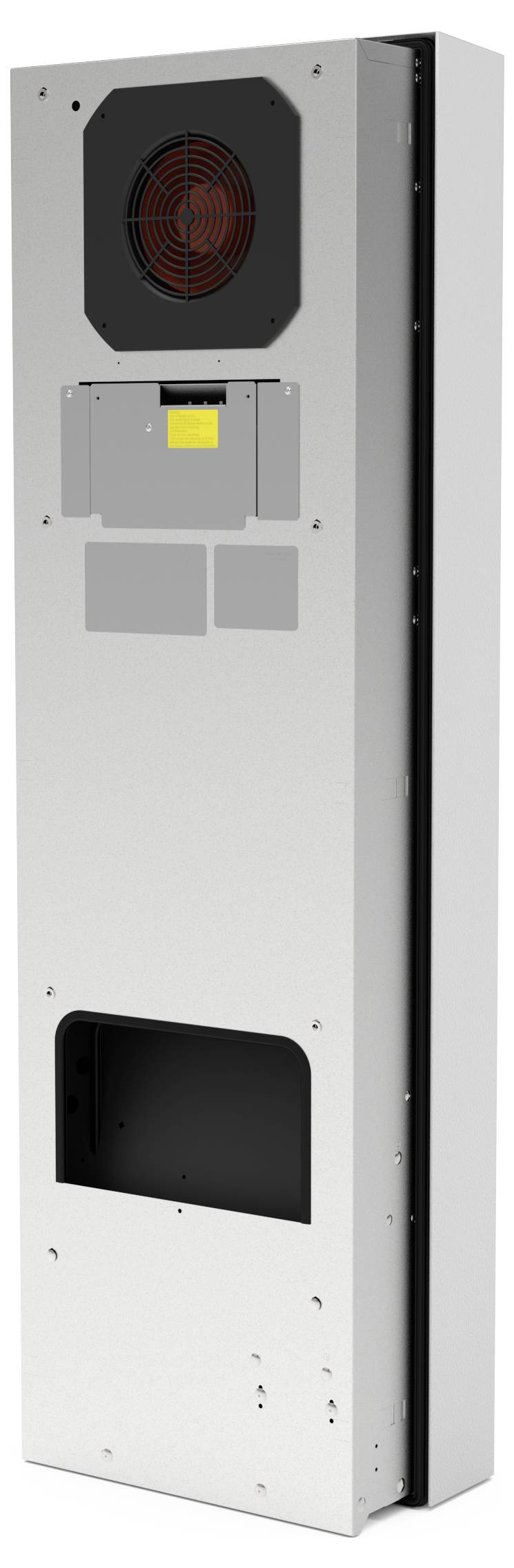

The DTI version (partly recessed door or side installation) of the refrigerators has the following advantages:
- With limited space in front of or next to the control cabinet. Escape routes are kept free.
- Extremely fast mounting on the cabinet in only 3 minutes.
- Safe routing of the cold air to the expensive components in the control cabinet is maintained
The advantages of this series at a glance:
- Available in power classes up to 4000 W.
- Unique high energy efficiency
- To avoid hotspots, the distance between the intake and outlet opening is large
- Integrated condensation
- Interface for using eCool-Plant software
- Cut-out compatible with other power classes AND cooling types such as air/water (PAI) and air/air heat exchangers (PLL) for maximum planning freedom
- Improved access to all components increases ease of service
This text is machine translated.
Significantly less refrigerant is used and the devices are already listed according to UL 60335, for long-term planning even after 2024.
Multi Controller (MC): Energy-saving switching mode makes possible an additional sensor dependent internal fan switch off
The DTI version (partly recessed door or side installation) of the refrigerators has the following advantages:
- With limited space in front of or next to the control cabinet. Escape routes are kept free.
- Extremely fast mounting on the cabinet in only 3 minutes.
- Safe routing of the cold air to the expensive components in the control cabinet is maintained
The advantages of this series at a glance:
- Available in power classes up to 4000 W.
- Unique high energy efficiency
- To avoid hotspots, the distance between the intake and outlet opening is large
- Integrated condensation
- Interface for using eCool-Plant software
- Cut-out compatible with other power classes AND cooling types such as air/water (PAI) and air/air heat exchangers (PLL) for maximum planning freedom
- Improved access to all components increases ease of service
This text is machine translated.
