Pfannenberg PF 43000 24DC 54 9011 Enclosure fan 24 V DC 12 W (W x H x D) 252 x 252 x 103 mm Piece 1 pc(s)

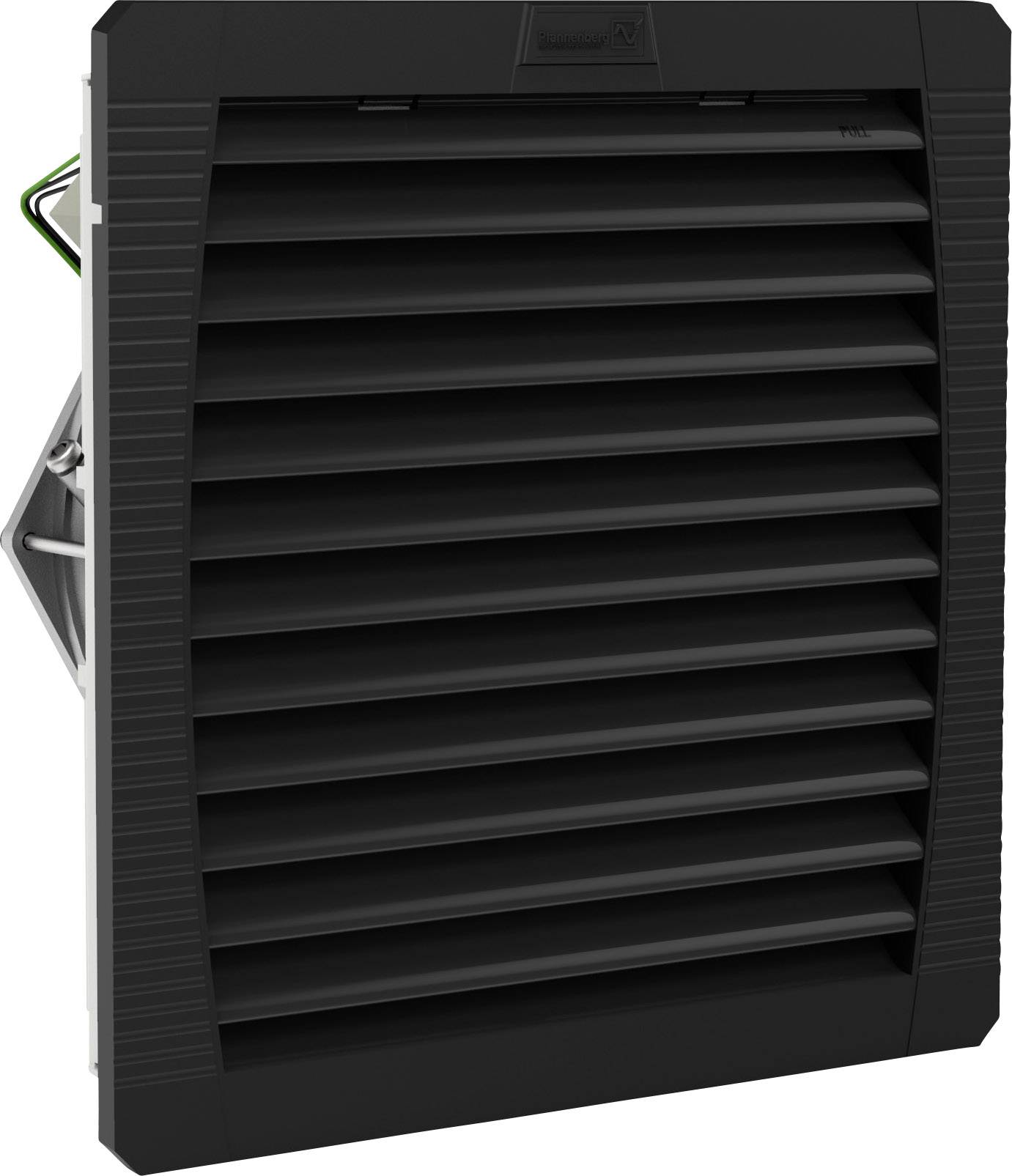

A black ventilation grille with horizontal louvres, installed in a wall mounting, for ventilation or cooling.

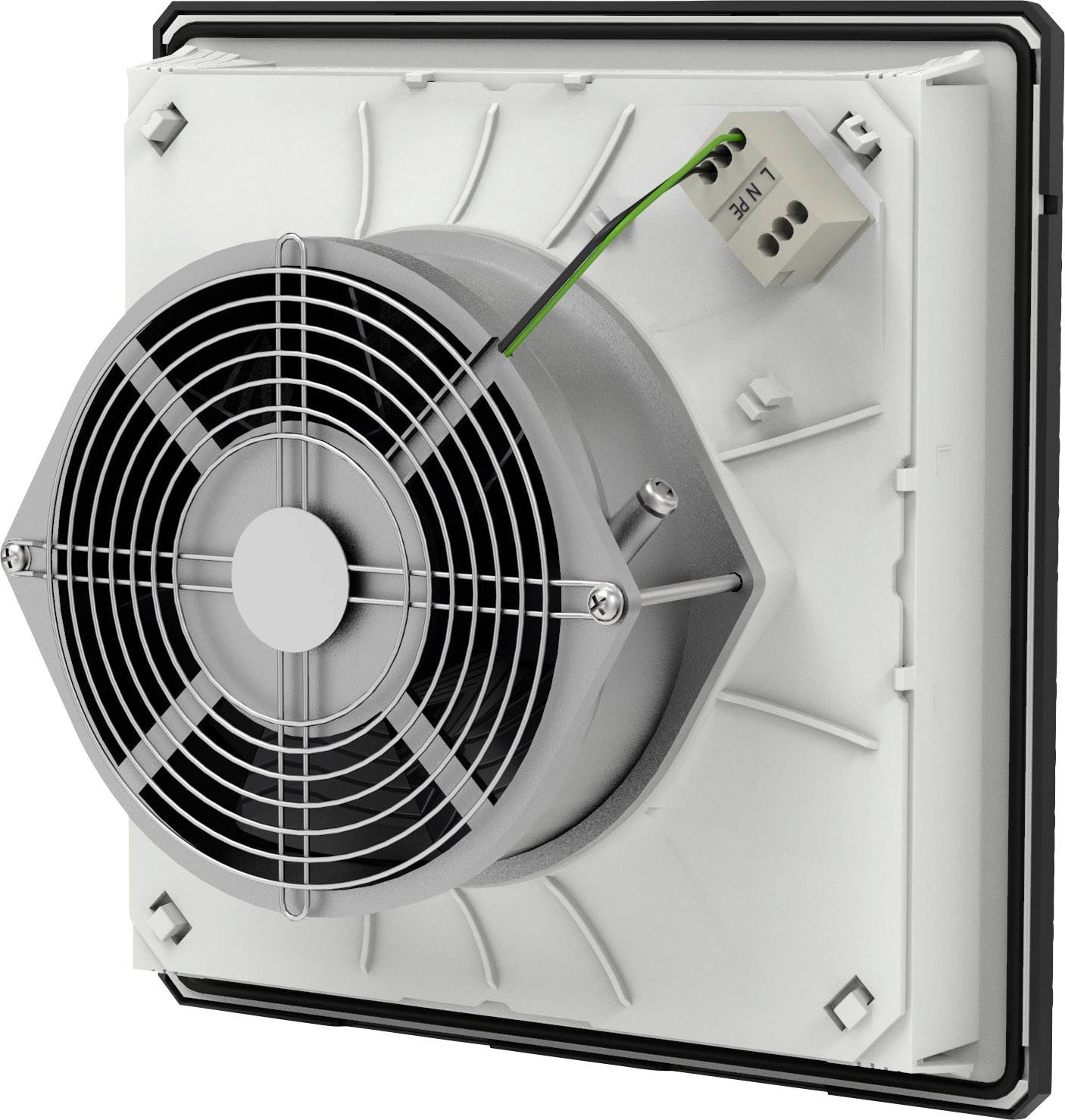

Electric fan in a square frame, mounted on a wall plate, with visible cable connections.

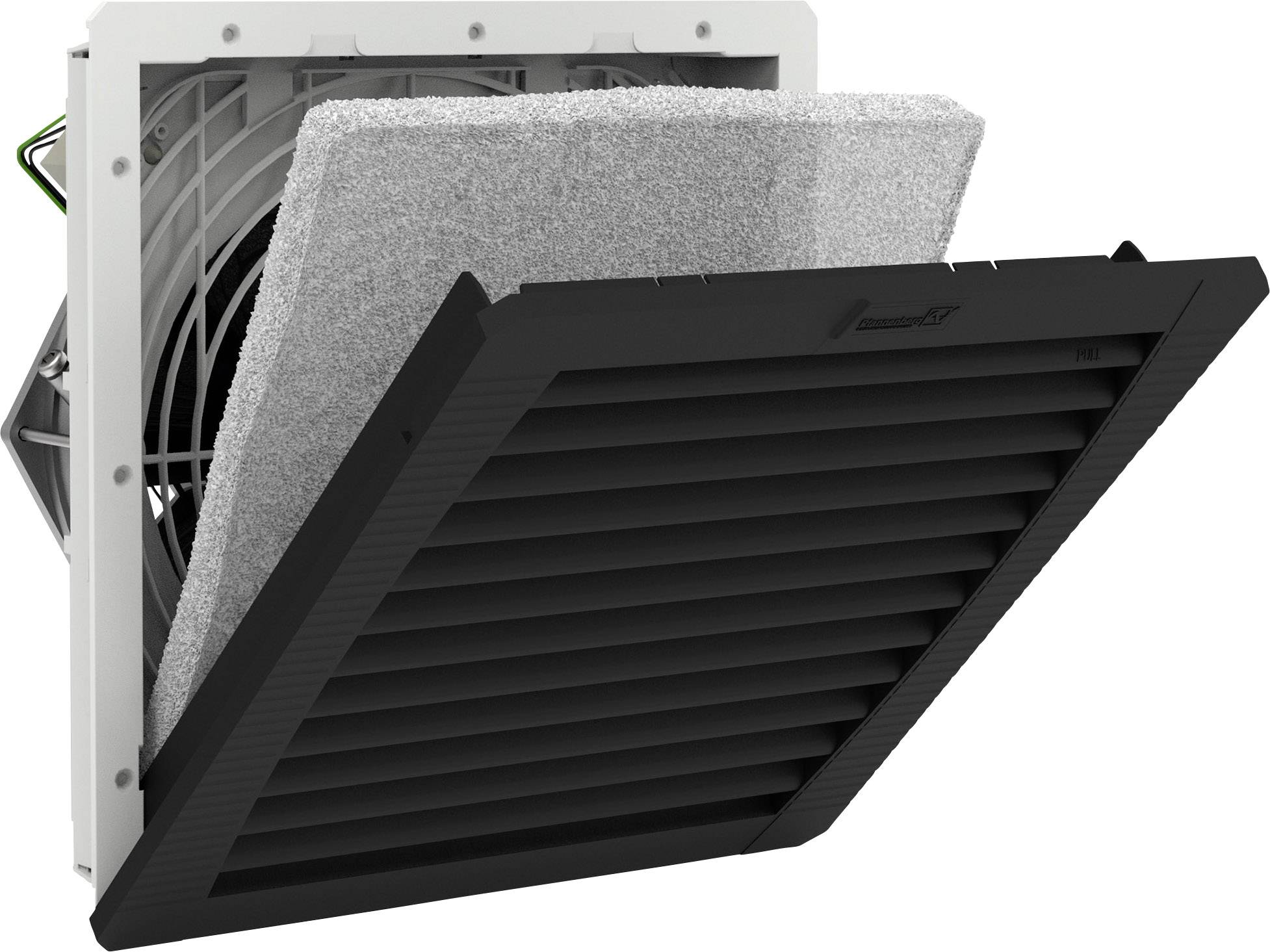

Black fan with removable filter insert, mounting frame and ventilator. The fan is used for cooling and dust filtration.

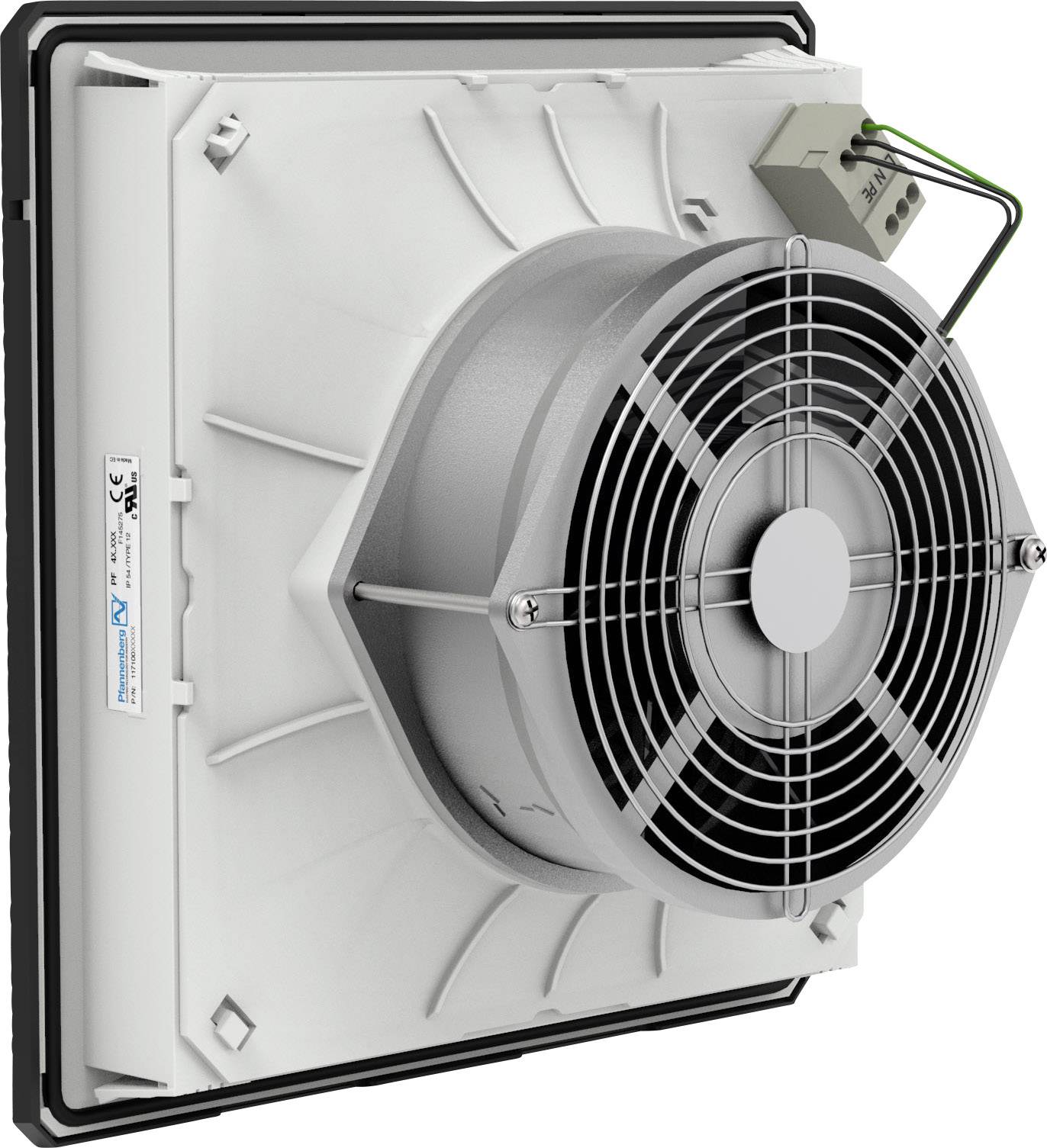

Industrial ventilator mounted in housing, showing a ventilation grille with cable connection, suitable for industrial applications.
1/4
Packaging type
Piece
Product type
Enclosure fan
Operating voltage
24 V DC
Power
12 W
Noise emission (max.)
53 dBa
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 11 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 265.00 / piece)
€ 265.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Wall mounting: Yes
  • Designed as insert fan: No.
  • Fans: No.
  • Roof fan: No.
  • With filter: Yes
  • EMC version: No.
  • Mounting type: Snap-on mounting
  • Suitable for 19" (482.6 mm) mounting: No.
  • RAL number: 9011
Packaging type

Piece

Product type

Enclosure fan

Type

PF 43000 24DC 54 9011

Features

incl. filter

Operating voltage

24 V DC

12 W

Noise emission (max.)

53 dBa

Air flow rate

256 m³/h

Compatible with

uniwersalny

Factory colour

Black

IP54

Connection

Spring-loaded terminal

Width

252 mm

Height

252 mm

Depth

103 mm

Dim

(W x H x D) 252 x 252 x 103 mm

Weight

200 g

Content

1 pc(s)

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2181497 Pfannenberg PF 43000 24DC 54 9011 Enclosure fan 24 V DC 12 W (W x H x D) 252 x 252 x 103 mm Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2181497 Pfannenberg PF 43000 24DC 54 9011 Enclosure fan 24 V DC 12 W (W x H x D) 252 x 252 x 103 mm Piece 1 pc(s)
