Phanteks PH-F120T30_BG_3P PC fan Black (W x H x D) 120 x 120 x 30 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

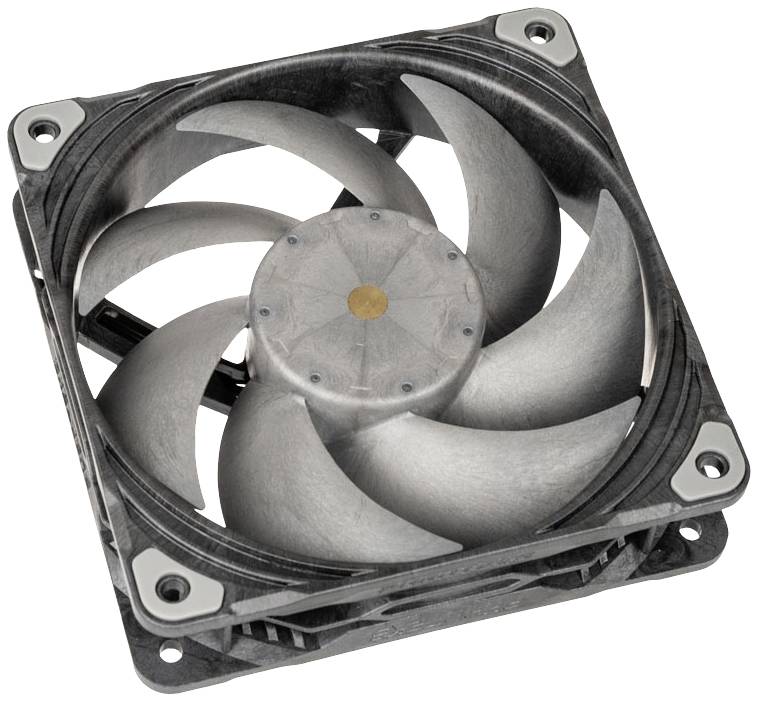

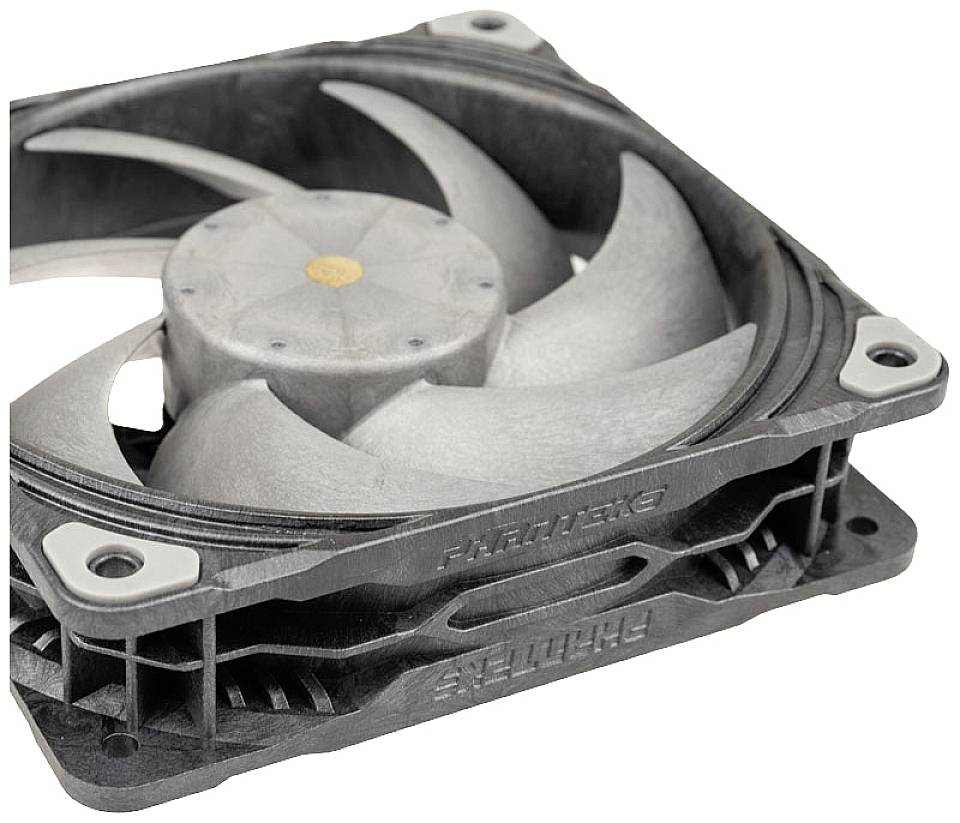

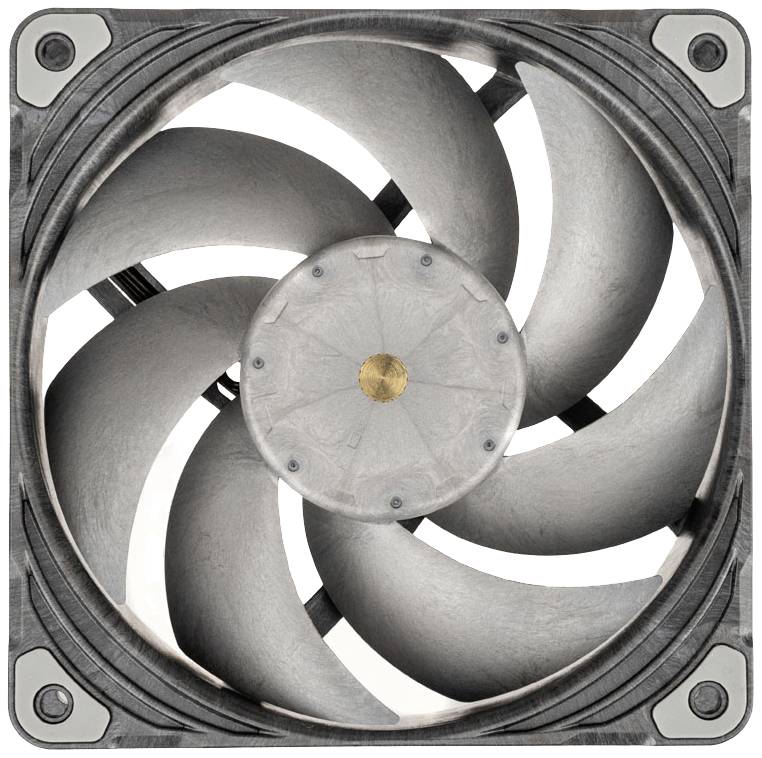

Phanteks PH-F120T30_BG_3P PC fan
- Three black high-end fans
- 30 mm depth with enlarged fan blades
- Versatile use through three fan profiles
- Made of glass-fiber reinforced LCP
- PWM connection with daisy chain support
Technical specifications
- Quantity: 3 pieces
- Dimensions 120 x 120 x 30 mm (W x H x D)
- Weight: 230 g
- Colour, black
- Material: Liquid crystal polymer (frame, rotor), rubber (vibration damper)
- Bearing: dual
- Advanced Profile:
- Speed: 3,000 ±150 rpm
- Delivery volume: 171.4 m³/h.
- Static pressure 7.11 mmH2O
- 39.7 dB(A) volume
- Current 0.36 A
- Power consumption: 4.32 W.
- Performance Profile:
- Speed 2000 ±100 rpm
- Delivery volume: 113.6 m³/h.
- Static pressure 3.3 mmH2O
- Volume 27.3 dB(A)
- Current 0.13 A
- Power consumption: 1.58 W.
- Hybrid profile:
- Speed 1200 ±75 rpm
- Delivery volume: 66.4 m³/h
- Static pressure 1.27 mmH2O
- 11.1 dB(A) volume
- Current 0.05 A
- Power consumption: 0.55 W.
- Operating voltage 10.2 to 13.2 V.
- 4-pin PWM (daisy chain) connector
- Cable length 130 mm + 500 mm extension cable
- MTTF: 150,000 h
- Product type
PC fan
- Fan size
120 mm
- Noise emission (max.)
39.7 dBa
- Noise emission
30.1 dBa - 40 dBa
- Rotational speed (min.)
150 U/min
- Air discharge
171.4 m³/h
- Rotational speed (max.)
3000 U/min
- Connection
4-pin PWM
- Factory colour
Black
- Weight
230 g
- Width
120 mm
- Height
120 mm
- Depth
30 mm
- Dim
(W x H x D) 120 x 120 x 30 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2498904 Phanteks PH-F120T30_BG_3P PC fan Black (W x H x D) 120 x 120 x 30 mm
Description
Three black high-end fans
30 mm depth with enlarged fan blades
This text is machine translated.
30 mm depth with enlarged fan blades
This text is machine translated.
Features
- Versatile high-end fan in black
- 120er model with 30 mm depth / only 0.5 mm wheel gap

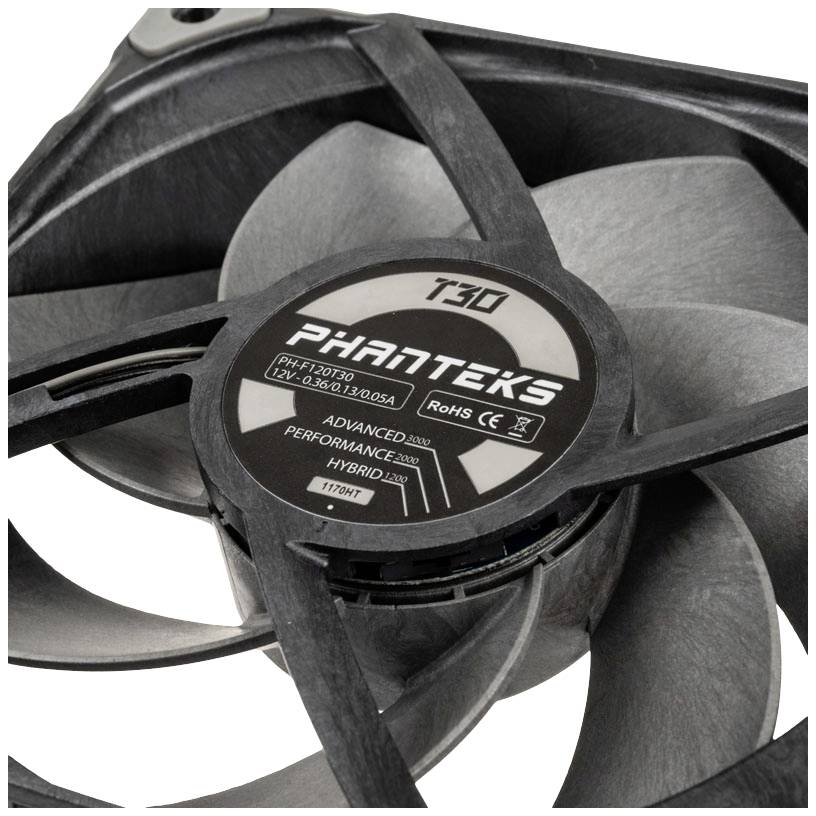

- Three performance profiles: Advanced, Performance and Hybrid
- 25% higher fan blades for increased performance
- Three-phase Sunon motor and dual Vapo bearing
- Frame and rotor made of glass fiber reinforced LCP material

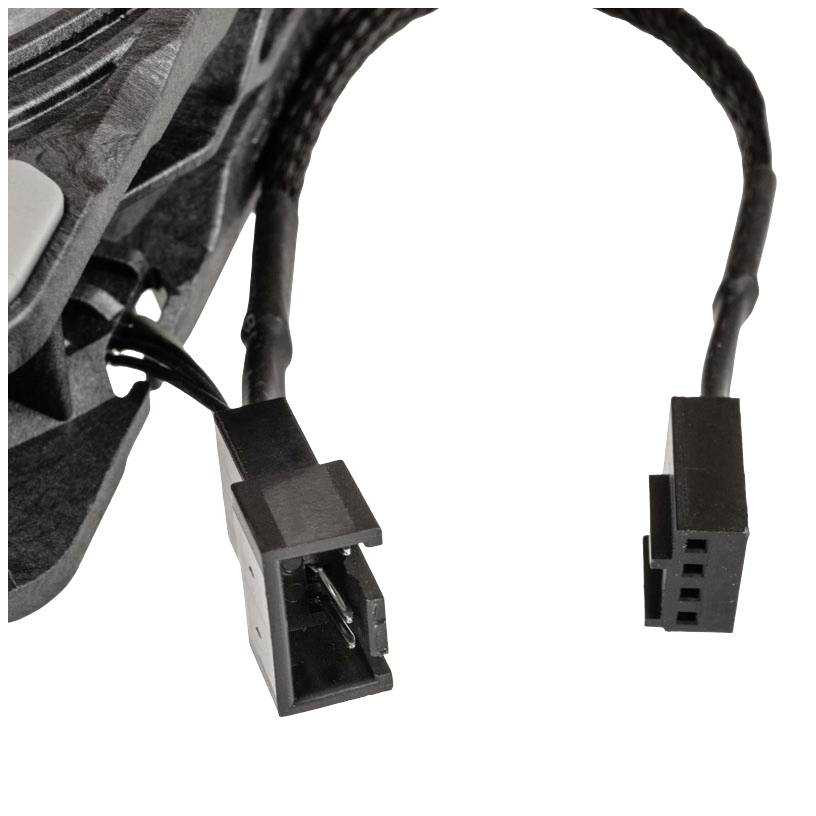

- 4-pin PWM connector with daisy chain support
- Anti-vibration pads made of rubber
Scope of delivery

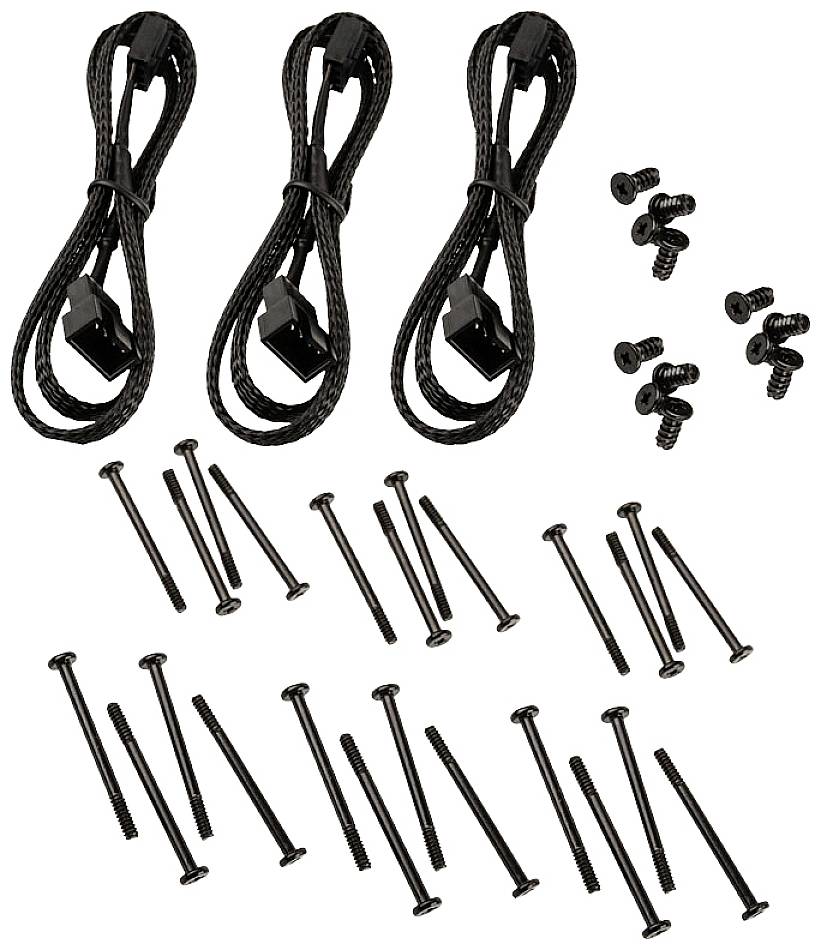

- 3x T30-120 fan 3x 4-pin extension cable 12x fan screws 12x radiator screws 36 mm 12x radiator + HALOS screws 39 mm
