Name: Phoenix Contact 1869156 Print terminal 1.5 mm² Number of pins 11 Green 1 pc(s) Piece
Brand: Phoenix Contact
SKU: 2209503
Availability: BackOrder

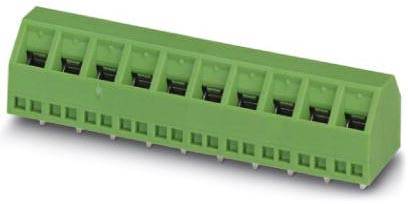

Green electrical connector with eight terminal blocks, suitable for wiring in electronic devices or control panels.

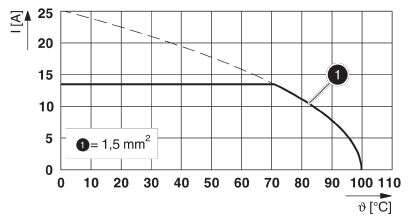

The diagram shows the current-carrying capacity (I in amperes) against temperature (θ in degrees Celsius) for a cable with a cross-section of 1.5 mm². The current-carrying capacity decreases as temperature rises.

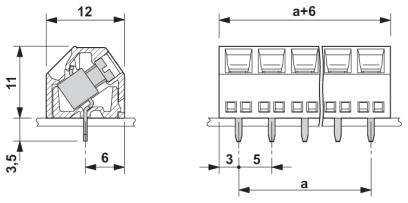

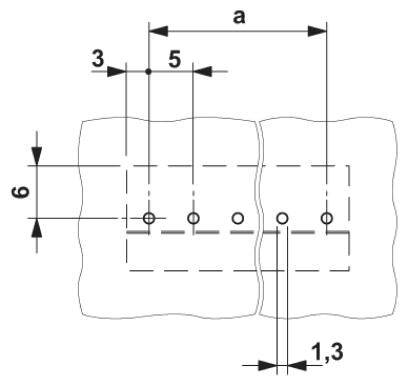

Technical Drawing: Two overlapping rectangles with point connections. Dimensions: 6 vertical, 3 horizontal, a at top, 5 internal, 1.3 at bottom.

Phoenix Contact 1869156 Print terminal 1.5 mm² Number of pins 11 Green 1 pc(s) Piece-3

1/4

Image similar

Packaging type

Piece

Product type

Print terminal

5 mm

Pins per row

Number of pins

Datasheet (PDF)

Dispatches on Mon, 18 Jan 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 50

Multiple: 50

Total (€ 3.49 / piece)

€ 174.50

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PCB terminal

Content 1 pc(s)

Technical specifications

Screw thread: M3
Mounting type: Wave soldering
Number of connections: 11
Pluggable: No.
Tightening torque: 0.5 Nm ... 0.6 Nm
Surface quality: Galvanized tin-plated
Metal surface solder area (cover layer): Tin (5 - 7 µm Sn)
Insulating material: PA
Insulating material group: I
Height (height without solder pin): 11 mm
Pin length 3.5 mm
Pin dimensions 0.5 x 1 mm
Rated surge voltage (III/3) 4 kV
Frequency 10 - 150 - 10 Hz
Nominal cross-section 1.5 mm²

Packaging type: Piece

Type: SMKDSN 1,5/11

Product type: Print terminal

Features: + extractor sleeve

CS: 5 mm

No. of rows: 1

Pins per row: 11

Number of pins: 11

Stripping length (max.): 6 mm

Connection: Screws
Print

Nominal current: 13.5 A

Cross section (flexible) (min.): 0.14 mm²

Nominal current - rounded value: 13.5 A

Cross section (inflexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 1.5 mm²

Cross section (inflexible) (max.): 1.5 mm²

AWG (min.): 26

AWG max.: 16

Contact material: Cu-alloy, tin plated

Enclosure material: Polyamide

Factory colour: Green

Actuation direction: At an angle (to the PCB)

Manufacturer part #: 1869156

Content: 1 pc(s)
