Name: Phoenix Contact 1985577 Screw terminal 2.50 mm² Number of pins 3 Gun grey 500 pc(s)
Brand: Phoenix Contact
SKU: 788547
Availability: BackOrder

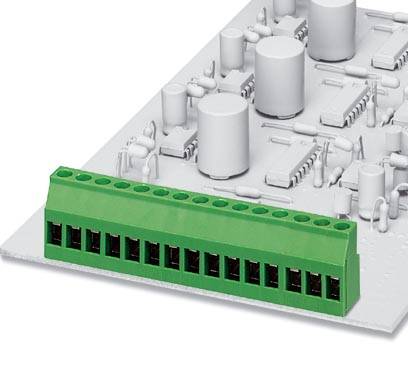

'Printed circuit board with various cylindrical and rectangular components, green connector strip in the foreground.'

Product type

Screw terminal

5.00 mm

Pins per row

Number of pins

Connection

Screw terminal

Datasheet (PDF)

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 500 pc(s))

Set(s)

Total (€ 1.39 / piece)

€ 695.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PCB terminal block MKDS 3/ 3 KMGY PIN 3,5(VPE500)

Content 500 pc(s)

Technical specifications

Type: MKDS 3/ 3 KMGY PIN 3,5(VPE500)

Product type: Screw terminal

Features: + extractor sleeve

CS: 5.00 mm

Pins per row: 3

Number of pins: 3

Series: MKDS

Stripping length (max.): 8.00 mm

Connection: Screw terminal
Print

Nominal current: 24 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 24 A

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (max.): 4.00 mm²

AWG (min.): 24

Connector orientation: Parallel (to the PCB)

AWG max.: 12

Contact material: Tin plated

Factory colour: Gun grey

Actuation direction: Perpendicular (to the PCB)

Manufacturer part #: 1985577

Industrial packaging: Yes

Content: 500 pc(s)

Nominal voltage: 400 V

Width: 23.00 mm

Height: 15.00 mm

Length: 11.20 mm

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Pins per row

Connection

Number of pins

Connector orientation

Product type

Phoenix Contact 1700905 Screw terminal 4.00 mm² Number of pins 6 Grey 50 pc(s)

Item no:194501

Dispatches on Fri 13 Nov

Conrad Electronic

32 A

Screw terminal

Parallel (to the PCB)

Screw terminal

6.35 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 189.99^*

Phoenix Contact 1703063 Screw terminal 6.00 mm² Number of pins 1 Green 50 pc(s)

Item no:192862

Dispatches on Thu 22 Oct

Conrad Electronic

32 A

Screw terminal

Parallel (to the PCB)

Screw terminal

6.35 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Phoenix Contact 1704062 Screw terminal 10.00 mm² Number of pins 1 Green 50 pc(s)

Item no:567505

Dispatches on Tue 20 Oct

5 Set(s)Conrad Electronic

76 A

Screw terminal

Parallel (to the PCB)

Screw terminal

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 174.99^*

Phoenix Contact 1704936 Screw terminal 4.00 mm² Number of pins 3 1 pc(s)

Item no:744581

Fast track dispatch on Thu 15 Oct

28 Piece(s)Conrad Electronic

32 A

Screw terminal

Parallel (to the PCB)

Screw terminal

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.29^*

Phoenix Contact 1704949 Screw terminal 4.00 mm² Number of pins 5 Green 50 pc(s)

Item no:196599

Dispatches on Tue 20 Oct

29 Set(s)Conrad Electronic

32 A

Screw terminal

Parallel (to the PCB)

Screw terminal

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 149.99^*

Phoenix Contact 1705443 Screw terminal 4.00 mm² Number of pins 3 Grey 50 pc(s)

Item no:194344

Dispatches on Wed 4 Nov

Conrad Electronic

32 A

Screw terminal

Parallel (to the PCB)

Screw terminal

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 87.99^*

Phoenix Contact 1706413 2-tier terminal 1.50 mm² Number of pins 4 Green 50 pc(s)

Item no:773860

Dispatches on Tue 20 Oct

188 Set(s)Conrad Electronic

15 A

Screw terminal

Parallel (to the PCB)

2-tier terminal

5.08 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Phoenix Contact 1706471 Screw terminal 2.50 mm² Number of pins 2 Green, Yellow 50 pc(s)

Item no:788264

Dispatches on Fri 13 Nov

Conrad Electronic

24 A

Screw terminal

Parallel (to the PCB)

Screw terminal

5.08 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 95.99^*

Phoenix Contact 1706756 Screw terminal 4.00 mm² Number of pins 4 Green 50 pc(s)

Item no:193091

Dispatches on Tue 20 Oct

11 Set(s)Conrad Electronic

32 A

Screw terminal

Parallel (to the PCB)

Screw terminal

6.35 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Phoenix Contact 1709694 Screw terminal 16.00 mm² Number of pins 3 Green 50 pc(s)

Item no:566637

Dispatches on Tue 20 Oct

42 Set(s)Conrad Electronic

76 A

Screw terminal

Parallel (to the PCB)

Screw terminal

10.16 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 375.00^*

Documents & Downloads

Datasheet

Datasheet 788547 Phoenix Contact 1985577 Screw terminal 2.50 mm² Number of pins 3 Gun grey 500 pc(s)

User & Safety Instructions

User & Safety Instructions 788547 Phoenix Contact 1985577 Screw terminal 2.50 mm² Number of pins 3 Gun grey 500 pc(s)

Description

PCB terminal block, Nominal current: 24 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 3, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: gray, The article can be aligned to create different nos. of positions!
