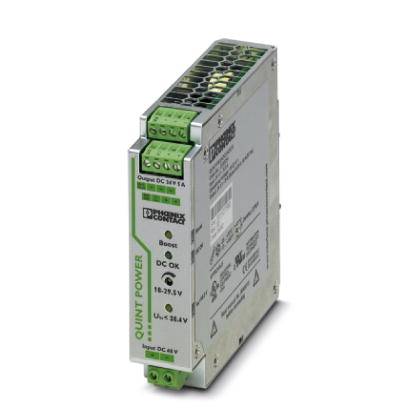

A power supply unit from Phoenix Contact, type QUINT POWER, 24 V DC, with green connection terminals and a grey housing.

A power supply unit from Phoenix Contact, type QUINT POWER, 24 V DC, with green connection terminals and a grey housing.

Phoenix Contact

Datasheet (PDF)

Dispatches on Wed 28 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 295.00 / piece)

€ 295.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DC/DC converters QUINT-PS/48DC/24DC/ 5

29.5 V DC / 5 A
120 W
Input voltage range 30 - 60 V DC
Connection (components): Screw terminal
SFB technology

Technical specifications

Nominal input voltage: 48 V/DC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 30 V DC

Output voltage: 24 V DC

Inputs: 1

Input voltage: 30 - 60 V DC

Input voltage (max.): 60 V DC

Max. output current: 5 A

Output current (max.) - rounded: 5 A

: 120 W

Output type (power supply units): Adjustable

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 32 x 130 x 125 mm

Weight: 0.7 kg

Output voltage (max.): 29.5 V DC

Output voltage (min.): 18 V DC

Max. operating temperature (derating): 60 °C

Manufacturer part #: 2320144

Content: 1 pc(s)

MTBF: 500000 h

PSU features: Adjustable voltage output

Width: 32 mm

Height: 130 mm

Max. temperature: 70 °C

Min. temperature: -24 °C

Type: QUINT-PS/48DC/24DC/5

Depth: 125 mm

Connections: Screw terminals

Output current (details): 5 A

: 32

: 130 mm

: 125 mm

: 130 mm

: FALSE

: DC

: Screw connection

: TRUE

: IP20

: Other

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 516945 Phoenix Contact 2320144 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 516945 Phoenix Contact 2320144 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Conformity certificate

Conformity certificate 516945 Phoenix Contact 2320144 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Description

Primary-switched QUINT DC/DC converter for DIN rail mounting, input: 48 V DC, output: 24 V DC/5 A, with integrated SFB (selective fuse breaking) technology, including mounted universal DIN rail adapter UTA 107/30

Features

Adjustable output voltage:
Derating from 60°C
Switchable SFB function for fast triggering of standard circuit breakers
Status LED displays.

Description

Primary-switched QUINT DC/DC converter for DIN rail mounting, input: 48 V DC, output: 24 V DC/5 A, with integrated SFB (selective fuse breaking) technology, including mounted universal DIN rail adapter UTA 107/30

Features

Adjustable output voltage:
Derating from 60°C
Switchable SFB function for fast triggering of standard circuit breakers
Status LED displays.
