Phoenix Contact 2320173 Rail mounted redundancy (DIN) 20 A No. of outputs: 1 x
EAN:
Part number:
Item no:
Datasheet (PDF)
3 Piece(s)
Sales and shipping:
Number
Total (€ 201.67 / piece)
€
Only 3 Piece(s) available
Highlights & Details

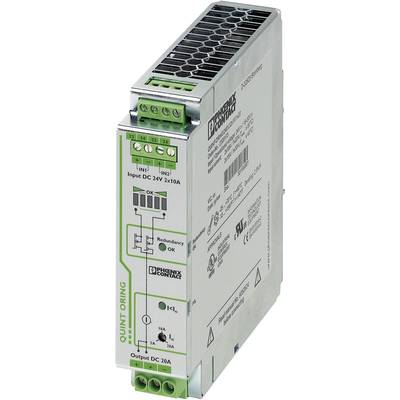

Redundancy module, with protective coating QUINT-ORING/24DC/2X10/1X20 - 2320173
- Low-loss isolation of power supplies switched in parallel
- Preventive function monitoring
- Auto Current Balance technology
Technical specifications
- Protection class IP20, protection class III
- Nominal input voltage
24 V/DC
- Product type
Rail mounted redundancy (DIN)
- Min. input voltage
18 V DC
- Input voltage (max.)
28 V DC
- Max. output current
20 A
- Output current (max.) - rounded
20 A
- No. of outputs
1 x
- Output voltage (min.)
24 V DC
- Output voltage (max.)
24 V DC
- Connection
Screw terminal
- Dim
(W x H x D) 32 x 130 x 125 mm
- Weight
0.4 kg
- Manufacturer part #
2320173
- Width
32 mm
- Height
130 mm
- Type
QUINT-ORING/24DC/2X10/1X20
- Depth
125 mm
- Output current (details)
2x 10 A, 1x 20 A
- Input voltage
24 V DC
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 514783 Phoenix Contact 2320173 Rail mounted redundancy (DIN) 20 A No. of outputs: 1 x
User & Safety Instructions
User & Safety Instructions 514783 Phoenix Contact 2320173 Rail mounted redundancy (DIN) 20 A No. of outputs: 1 x
Description
QUINT ORING is the active redundancy module from the QUINT POWER product family that can be mounted on a mounting rail.
With the help of the redundancy module, two power supplies of the same type that are connected in parallel on the output side for redundancy can be fully isolated from each
other.
Redundant systems are used in systems that demand particularly high requirements for the reliability. The power supplies involved are sized such that the total current requirement for all consumers can be covered by one power supply alone.
If the total requirements increases beyond the nominal current of the power supplies to be supplied as a result of additional installed loads, for example, the power supply system is no longer redundant. Likewise, a defect in the power supply or in the wiring can lead to the loss of redundancy.
This can be detected immediately via a floating signal contact and a corresponding LED.
The Auto Current Balance (ACB) technology allows uniform distribution of the load current across the connected power supplies so that the life of the redundant system can be significantly increased.
With the help of the redundancy module, two power supplies of the same type that are connected in parallel on the output side for redundancy can be fully isolated from each
other.
Redundant systems are used in systems that demand particularly high requirements for the reliability. The power supplies involved are sized such that the total current requirement for all consumers can be covered by one power supply alone.
If the total requirements increases beyond the nominal current of the power supplies to be supplied as a result of additional installed loads, for example, the power supply system is no longer redundant. Likewise, a defect in the power supply or in the wiring can lead to the loss of redundancy.
This can be detected immediately via a floating signal contact and a corresponding LED.
The Auto Current Balance (ACB) technology allows uniform distribution of the load current across the connected power supplies so that the life of the redundant system can be significantly increased.
