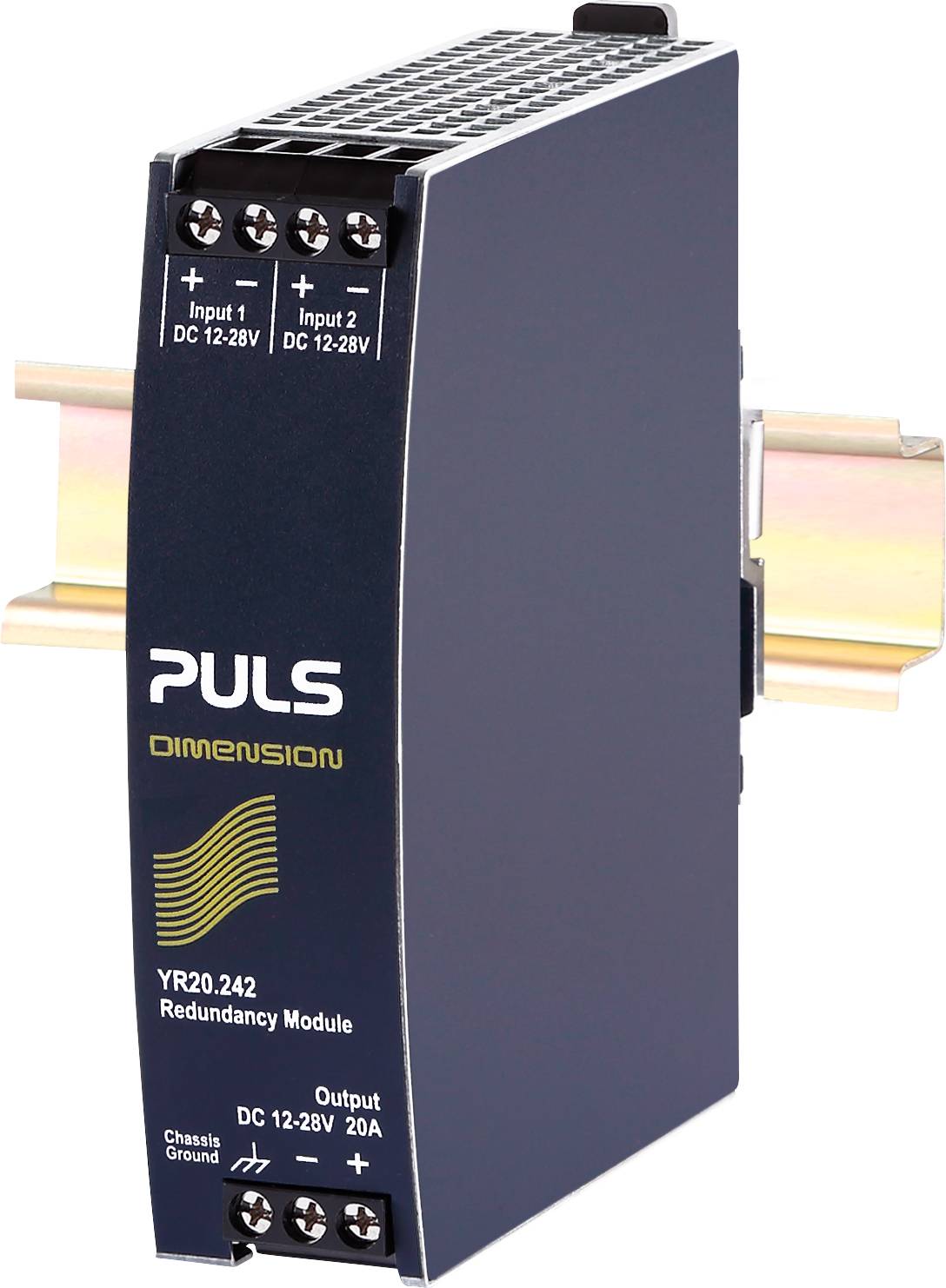

PULS YR20.242 Redundancy module 26 A No. of outputs: 1 x
EAN:
Part number:
Item no:
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
Only 6 Piece(s) available
Highlights & Details
- For 1+1 and N+1 redundant systems
- Two inputs with common output
- Only 60mV voltage drop at 10A output current
- Only 0.6W loss at 10A
- 160% (32.5A) peak load capacity
- Input polarity protection
- Full output power between -40 and +70°C.
- Only 32mm wide
- Heavy duty metal casing
- Easy wiring:
- Terminal block for negative terminal included
Technical specifications
- Product type
Redundancy module
- Min. input voltage
8.4 V DC
- Input voltage (max.)
36.4 V DC
- Max. output current
26 A
- Output current (max.) - rounded
26 A
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(L x W x H) 117 x 32 x 124 mm
- Weight
250 g
- Manufacturer part #
YR20.242
- Width
32 mm
- Height
124 mm
- Length
117 mm
- Max. temperature
+70 °C
- Min. temperature
-40 °C
- Type
YR20.242
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2189076 PULS YR20.242 Redundancy module 26 A No. of outputs: 1 x
Description
THE DIMENSION product family convinces with its highest performance, a wide variety of variants as well as extensive features and approvals.
