Phoenix Contact 2866514 Rail mounted redundancy (DIN) 20 A No. of outputs: 1 x
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 60.50 / piece)
€ 73.94
-18 %
€ 60.50
plus VAT.

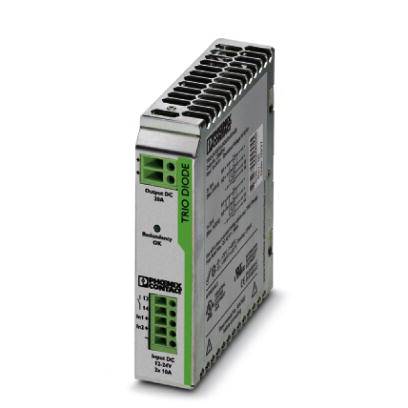

Redundancy module TRIO-DIODE/12-24DC/2X10/1X20
Technical specifications
- Product type
Rail mounted redundancy (DIN)
- Min. input voltage
12 V DC
- Input voltage (max.)
24 V DC
- Max. output current
20 A
- Output current (max.) - rounded
20 A
- No. of outputs
1 x
- Output voltage (min.)
12 V DC
- Output voltage (max.)
24 V DC
- Connection
Screw terminal
- Dim
(W x H x D) 32 x 130 x 115 mm
- Weight
0.37 kg
- Manufacturer part #
2866514
- MTBF
10000000 h
- Width
32 mm
- Height
130 mm
- Max. temperature
70 °C
- Min. temperature
-40 °C
- Type
TRIO-DIODE/12-24DC/2X10/1X20
- Depth
115 mm
- Output voltage
0.5 V DC input
- Input voltage
12 V/DC... 24 V DC
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 104586 Phoenix Contact 2866514 Rail mounted redundancy (DIN) 20 A No. of outputs: 1 x
User & Safety Instructions
User & Safety Instructions 104586 Phoenix Contact 2866514 Rail mounted redundancy (DIN) 20 A No. of outputs: 1 x
Description
Redundancy module with function monitoring, 12-24 V DC, 2x 10 A, 1x 20 A
