Phoenix Contact 2800184 VAL-MS-T1/T2 335/12.5/3+1 Surge arrester Surge protection for: Switchboards 12.5 kA 1 pc(s)

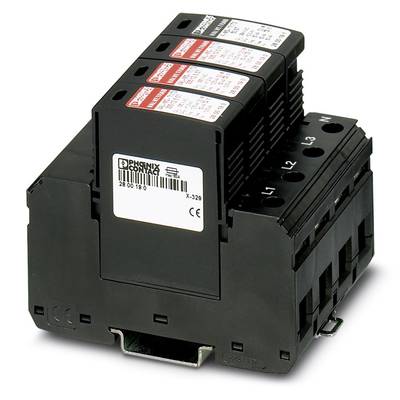

Multi-pole electronic component with multiple protective switches, suitable for industrial applications, brand PHOENIX.
Black electrical component with four pluggable modules, each with a red and white label, mounted on a DIN rail.
1/2
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 2 Nov
227 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 445.00 / piece)
€ 445.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Surge arrester

Surge protection for

Switchboards

Leakage current

12.5 kA

Nominal voltage

240 V

415 V

Manufacturer part #

2800184

Dim

(W x H x D) 100 x 100 x 150 mm

Width

100 mm

Height

100 mm

Depth

150 mm

Content

1 pc(s)

Weight

700 g

DIN rail (top hat rail) 35 mm

IP20

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 938535 Phoenix Contact 2800184 VAL-MS-T1/T2 335/12.5/3+1 Surge arrester Surge protection for: Switchboards 12.5 kA 1 pc(s)

User & Safety Instructions

User & Safety Instructions 938535 Phoenix Contact 2800184 VAL-MS-T1/T2 335/12.5/3+1 Surge arrester Surge protection for: Switchboards 12.5 kA 1 pc(s)

Description

Universal varistor-based plug-in lightning arrester for 3-phase power supply networks with separate N and PE (5-conductor system: L1, L2, L3, N, PE), for Lightning Protection Levels III and IV.
