Name: Phoenix Contact 3044102 Continuity 6.2 mm Screws Configuration: Double Grey 1 pc(s) Piece
Brand: Phoenix Contact
SKU: 744377
Availability: InStock

Grey, two-stage electrical terminal block with two screw terminals, mounted on a metal rail.

A mounting unit with plug connectors and colour-coded elements shows an installed electrical circuit in a control cabinet.

Electricity distribution terminal with the text 'CLIPLINE complete' at the top, showing components for electrical connection in a switchgear system.

1/3

Image similar

Packaging type

Piece

Product type

Continuity

Connection

Screws

Cross section (flexible) (max.)

6 mm²

Cross section (inflexible) (max.)

6 mm²

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

769 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1.79 / piece)

€ 1.99

-10 %

€ 1.79

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Rail mounted terminals UT

Technical specifications

Load current 41 A at 4 mm ² conductor cross section

Packaging type: Piece

Product type: Continuity

Features: + latch lock base

Connection: Screws

Configuration: Double

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 6 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 6 mm²

AWG (min.): 26

AWG max.: 10

Clamp width: 6.2 mm

No. of rows: 1

Number of pins: 2

Factory colour: Grey

Nominal current: 32 A

Nominal current - rounded value: 32 A

Nominal voltage: 1000 V

Stripping length (max.): 9 mm

Manufacturer part #: 3044102

Content: 1 pc(s)

Industrial packaging: No

Type: UT 4

Dim: (L x W x H) 47.7 x 6.2 x 46.9 mm

Width: 6.2 mm

Height: 46.9 mm

Length: 47.7 mm

Flammability rating: V0

Connector colour: Grey

Nominal current (details): 41 A

Connection: -

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Factory colour

Product type

Cross section (inflexible) (max.)

Cross section (flexible) (max.)

Cross section (inflexible) (min.)

Cross section (flexible) (min.)

Phoenix Contact 3044102 Continuity 6.2 mm Screws Configuration: Double Grey 1 pc(s) Piece

Item no:744377

Fast track dispatch on Wed 14 Oct

769 Piece(s)Conrad Electronic

This article

32 A

Grey

Continuity

6 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.79^*

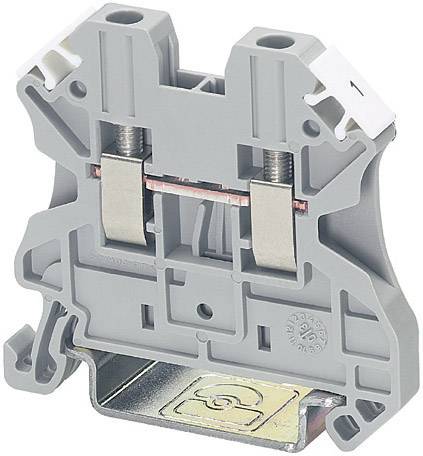

Phoenix Contact 3044076 Continuity 5.2 mm Screws Grey 1 pc(s) Piece

Item no:744725

Fast track dispatch on Wed 14 Oct

442 Piece(s)Conrad Electronic

24 A

Grey

Continuity

4 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.49^*

Phoenix Contact 3044089 Continuity 5.2 mm Screws Blue 1 pc(s) Piece

Item no:744364

Fast track dispatch on Wed 14 Oct

511 Piece(s)Conrad Electronic

24 A

Blue

Continuity

4 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.49^*

Phoenix Contact 3044115 Continuity 6.2 mm Screws Blue 1 pc(s) Piece

Item no:744390

Fast track dispatch on Wed 14 Oct

272 Piece(s)Conrad Electronic

32 A

Blue

Continuity

6 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.79^*

Phoenix Contact 3044131 Continuity 8.2 mm Screws Grey 1 pc(s) Piece

Item no:744402

Available soon

Conrad Electronic

41 A

Grey

Continuity

10 mm²

0.2 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.29^*

Phoenix Contact 3044144 Continuity 8.2 mm Screws Blue 1 pc(s) Piece

Item no:744414

Available soon

Conrad Electronic

41 A

Blue

Continuity

10 mm²

0.2 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.29^*

Phoenix Contact 3044160 Continuity 10.2 mm Screws Configuration: Double Grey 1 pc(s) Piece

Item no:744426

Fast track dispatch on Wed 14 Oct

101 Piece(s)Conrad Electronic

57 A

Grey

Continuity

16 mm²

0.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.79^*

Phoenix Contact 3044188 Continuity 10.2 mm Screws Configuration: Double Blue 1 pc(s) Piece

Item no:744438

Fast track dispatch on Wed 14 Oct

76 Piece(s)Conrad Electronic

57 A

Blue

Continuity

16 mm²

0.5 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.49^*

Phoenix Contact 3045062 Serial continuity 5.2 mm Screws Red 1 pc(s) Piece

Item no:658691

Fast track dispatch on Wed 14 Oct

194 Piece(s)Conrad Electronic

24 A

Red

Serial continuity

4 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.49^*

Phoenix Contact 3045088 Serial continuity 5.2 mm Screws Black 1 pc(s) Piece

Item no:658690

Fast track dispatch on Wed 14 Oct

221 Piece(s)Conrad Electronic

24 A

Black

Serial continuity

4 mm²

0.14 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.49^*

Documents & Downloads

Datasheet

Datasheet 744377 Phoenix Contact 3044102 Continuity 6.2 mm Screws Configuration: Double Grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 744377 Phoenix Contact 3044102 Continuity 6.2 mm Screws Configuration: Double Grey 1 pc(s) Piece

Description

The screw terminal UT series is characterised by its compact design and excellent handling. Standard contour earth conductor terminals are designed with a snap-in base. The double bridge shaft allows individual chain bridging using plug jumpers.
