Name: Phoenix Contact AXL F UTH8 1F 2688417 PLC add-on module 24 V DC
Brand: Phoenix Contact
SKU: 1220152
Availability: BackOrder

Electronic module for industrial application, with connections at the top, grey housing and additional black component in the bottom left.

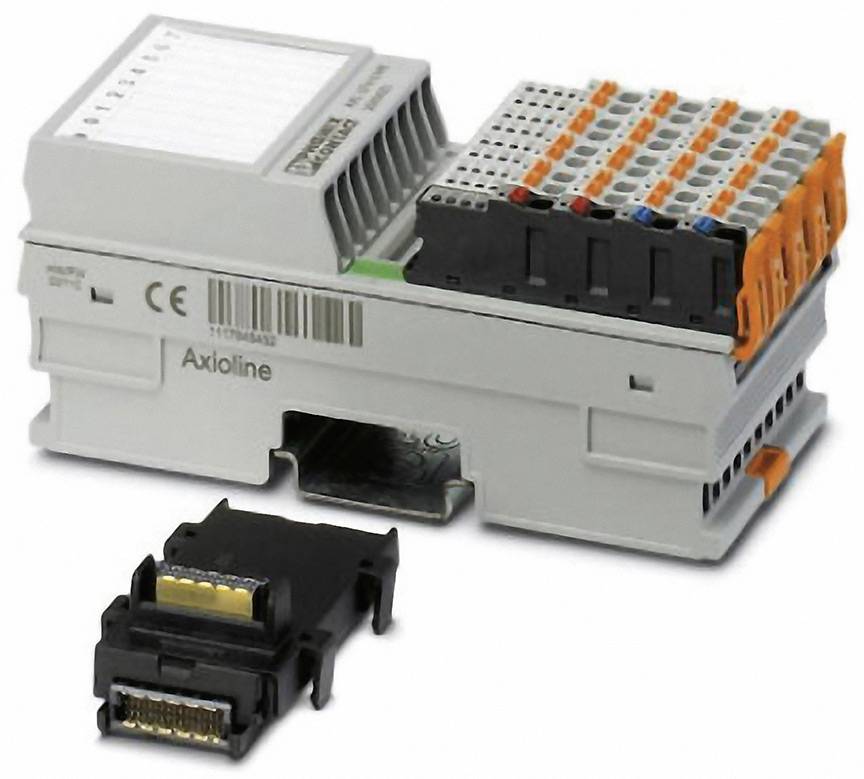

An Axioline module with multiple connections, plug-in terminals and a separate connector piece, indicating industrial usage.

1/2

EAN:

Part number:

Item no:

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 529.00 / piece)

€ 529.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: PLC add-on module

Type: AXL F UTH8 1F

No. of analogue inputs: 9

No. of inputs (max.): 9

No. of inputs: 9 x

Operating voltage: 24 V DC

Height: 126.1 mm

Length: 54 mm

Width: 53.6 mm

: IP20

Dim: (L x W x H) 54 x 53.6 x 126.1 mm

Field bus system: Local bus

Manufacturer part #: 2688417

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Logic voltage UL: 5 V DC

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1220152 Phoenix Contact AXL F UTH8 1F 2688417 PLC add-on module 24 V DC

Description

The module is intended for use within a axio Line Station. It is used to capture the signals of the commercial thermocouples in industrial environments. The module supports different thermocouple types are supported according to DIN EN 60584-1 and DIN 46710 as well as linear voltages from -100 mV to +100 mV. In addition, it offers a voltage input from 5V to +5V by means of measuring transducer can here, for example, Heating currents can be monitored. The four Pt100 Inputs (CJ1... CJ4) you can set in each case as sensor input or as an external comparison point.

This text is machine translated.
